Description

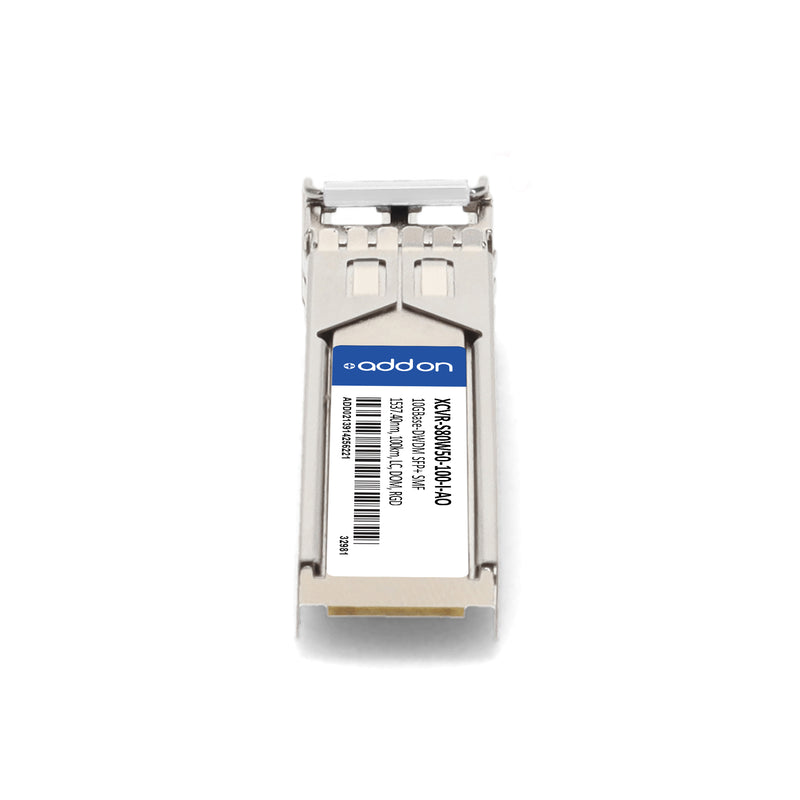

The AddOn Ciena® XCVR-S80W50-100-I Compatible TAA 10GBase-DWDM SFP+ Transceiver is a high-performance optical module designed for long-reach 10 Gbps DWDM applications over single-mode fiber (SMF). Operating on a 1537.40 nm C-Band wavelength (ITU Channel 50) with 100 GHz channel spacing, it supports transmission distances of up to 100 km.
This hot-pluggable transceiver complies with SFF-8432 and SFF-8472 standards, provides digital optical monitoring (DOM) for real-time diagnostics, and ensures seamless interoperability with Ciena® systems. With a robust industrial-temperature range (-40 °C to 85 °C), excellent ESD protection, and low-EMI metal housing, it delivers reliable performance in demanding access, metro, and enterprise network environments. Backed by AddOn’s rigorous testing, TAA compliance, and limited lifetime warranty, this transceiver is an ideal solution for mission-critical DWDM networking.
| Specification | Details |
|---|---|
| SKU | XCVR-S80W50-100-I-AO |
| Brand Compatibility | Ciena® |
| Form Factor | SFP+ |
| Data Rate | 10.3125 Gbps |
| Transmission Distance | Up to 100 km |
| Wavelength / Channel | 1537.40 nm (ITU-T CH 50, C-Band 100 GHz) |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Digital Optical Monitoring (DOM) | Supported |
| Operating Temperature Range | -40 °C to 85 °C (Industrial) |
| Compliance | SFF-8432, SFF-8472, RoHS 2.0, FCC Part 15, IEC 60825-1/2 |
| Applications | 10G Ethernet over DWDM, 8G/10G Fibre Channel, Metro/Access/Enterprise |
| Launch Optical Power | +1.0 dBm to +4.0 dBm |
| Receiver Sensitivity | ≤ -26 dBm |
| Extinction Ratio | ≥ 9 dB |
| Dispersion-Limited Distance | 100 km |
| Power Dissipation | ≤ 1.8 W |
| Interface | Hot-pluggable SFP+ |
| TAA Compliance | Yes |
| Warranty | Limited Lifetime |
