Description

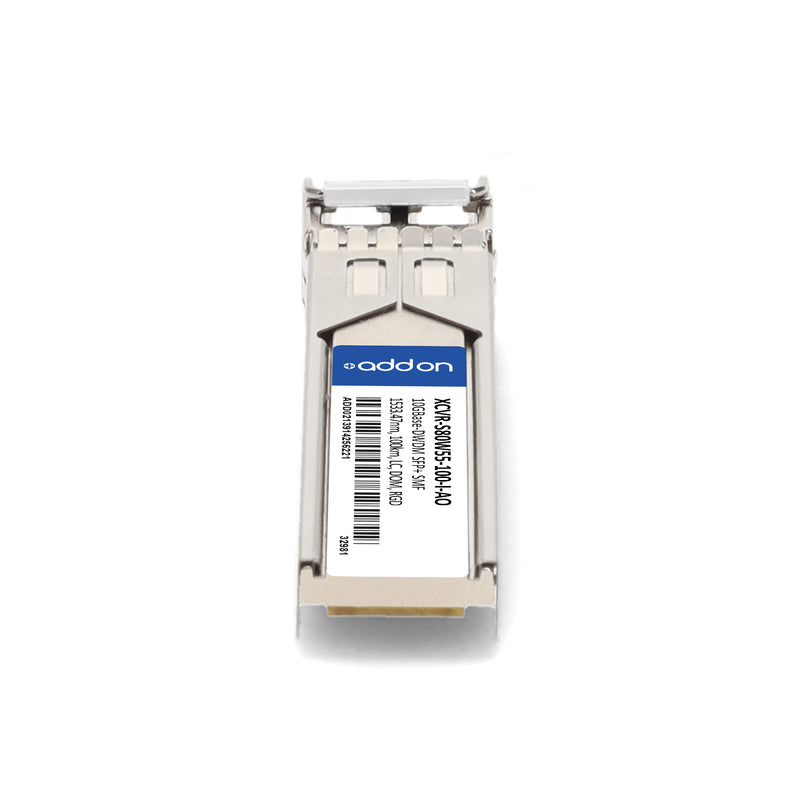

The AddOn Ciena® XCVR-S80W55-100-I Compatible 10GBase-DWDM SFP+ Transceiver delivers high-performance, long-reach optical connectivity for demanding metro, access, and enterprise applications. Designed for single-mode fiber (SMF) links up to 100 km, this transceiver operates on the 1533.47 nm wavelength (ITU-T Channel 55) within the C-Band 100 GHz grid, providing reliable 10 Gbps data transmission over DWDM networks.
Engineered to meet SFF-8432 and SFF-8472 standards, this hot-pluggable module offers Digital Optical Monitoring (DOM) for real-time performance data and supports 8x/10x Fibre Channel and 10 Gigabit Ethernet applications. With an industrial operating temperature range (-40 °C to 85 °C), robust ESD/EMI protection, and TAA compliance, it is built for mission-critical deployments. Each unit is programmed, uniquely serialized, and fully application-tested to guarantee seamless interoperability with original Ciena® hardware.
| Specification | Details |
|---|---|
| SKU | XCVR-S80W55-100-I-AO |
| Brand Compatibility | Ciena® |
| Form Factor | SFP+ |
| Data Rate | 10.3125 Gbps |
| Standard | 10GBase-DWDM |
| Wavelength | 1533.47 nm (ITU-T Channel 55) |
| Channel Spacing | 100 GHz |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Maximum Reach | Up to 100 km |
| Digital Optical Monitoring (DOM) | Supported |
| Extinction Ratio | ≥ 9 dB |
| Launch Optical Power | +1.0 dBm to +4.0 dBm |
| Receiver Sensitivity | ≤ -26 dBm |
| Receiver Overload | ≥ -7.0 dBm |
| Optical Return Loss Tolerance | ≥ 21 dB |
| Operating Temperature | -40 °C to +85 °C (Industrial) |
| Compliance Standards | SFF-8432, SFF-8472, RoHS, FCC Part 15, EN55022, FDA 21CFR, IEC 60825 |
| Applications | 8x/10x Fibre Channel, 10 Gigabit Ethernet over DWDM, Metro, Access, Enterprise |
| Features | Hot-pluggable, ESD-protected, Low EMI, Lead-free, TAA compliant |
| Warranty | Limited Lifetime Warranty |
