Description

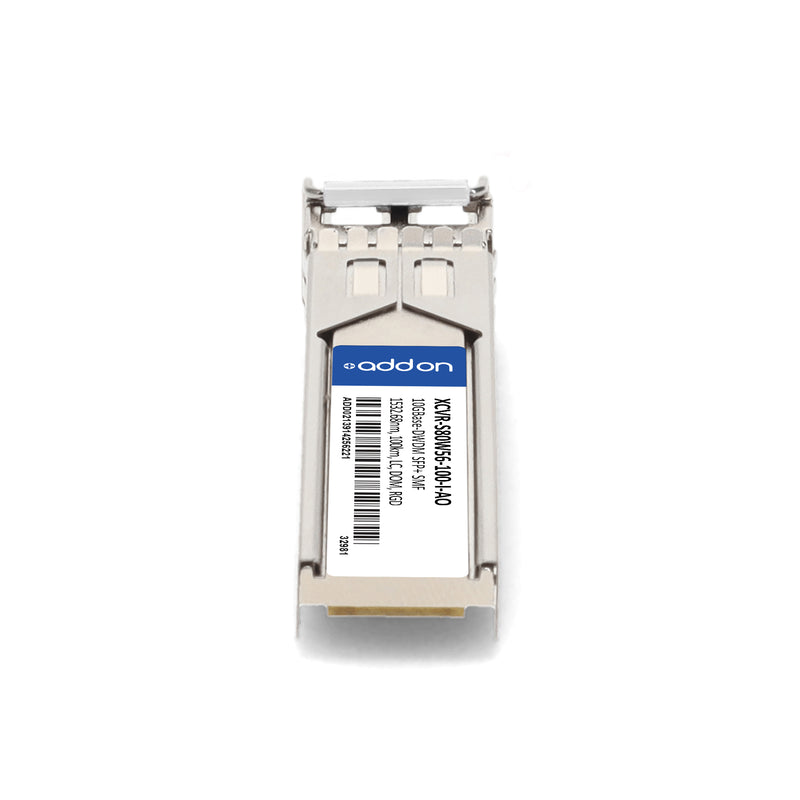

The AddOn Ciena® XCVR-S80W56-100-I Compatible 10GBase-DWDM SFP+ Transceiver is a high-performance optical module designed for long-distance data transmission over single-mode fiber (SMF) up to 100 km. Operating at a center wavelength of 1532.68 nm with a 100 GHz channel spacing, this transceiver ensures reliable connectivity for 8G/10G Fibre Channel and 10 Gigabit Ethernet over DWDM networks. It features a duplex LC connector, supports digital optical monitoring (DOM) for real-time diagnostics, and is hot-pluggable for seamless deployment. Engineered to meet SFF-8432 and SFF-8472 standards, it offers excellent ESD protection, low EMI, and industrial-grade temperature performance from -40 °C to 85 °C. This module is TAA compliant and rigorously tested to guarantee full interoperability with Ciena® equipment.
| Specification | Details |
|---|---|
| Brand Compatibility | Ciena® |
| SKU | XCVR-S80W56-100-I-AO |
| Form Factor | SFP+ |
| Data Rate | 10.3125 Gbps |
| Transmission Standard | 10GBase-DWDM |
| Wavelength | 1532.68 nm (C-Band, ITU Channel 56) |
| Channel Spacing | 100 GHz |
| Distance / Reach | Up to 100 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Optical Output Power | +1.0 dBm to +4.0 dBm |
| Receiver Sensitivity | ≤ -26 dBm |
| Receiver Overload | ≥ -7.0 dBm |
| Extinction Ratio | ≥ 9.0 dB |
| Side Mode Suppression Ratio | ≥ 30 dB |
| Dispersion Penalty | ≤ 4 dB |
| Digital Diagnostics (DOM) | Supported |
| Operating Temperature | -40 °C to +85 °C (Industrial) |
| Power Dissipation | ≤ 1.8 W |
| Compliance | SFF-8432, SFF-8472, RoHS, TAA |
| Applications | 8G/10G Fibre Channel, 10GbE over DWDM, Access, Metro, Enterprise |
| Warranty | Limited Lifetime Warranty |
