Description

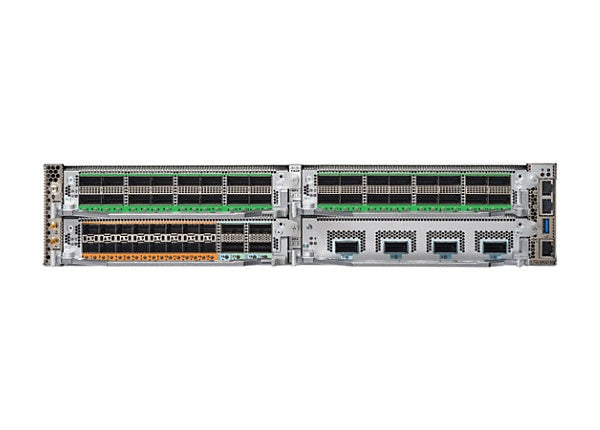

The Cisco 8712-MOD-M is a high-capacity, modular routing platform designed for modern service provider, metro, and aggregation networks. Built on the Cisco 8000 Series architecture, it delivers up to 6.4 Tbps of system throughput in a compact 2RU chassis, offering exceptional scalability through four high-performance Modular Port Adapter (MPA) slots.
Each MPA slot supports up to 1.6 Tbps, enabling flexible port configurations ranging from 1G to 400G using a wide selection of pluggable optics. The platform is optimized for routed optical networking (RON) and supports advanced breakout options to maximize port density and investment protection.
Powered by Cisco IOS XR, the 8712-MOD-M provides a carrier-grade operating system with high availability, programmability, and automation capabilities. Redundant power supplies, hot-swappable fans, and line-rate MACsec encryption ensure reliability, security, and continuous operation in mission-critical environments.
Ideal for metro aggregation, business edge, mobile backhaul, and internet peering, the Cisco 8712-MOD-M delivers the performance and flexibility required to scale next-generation networks.
| Category | Specification |
|---|---|
| Product Series | Cisco 8700 Series |
| Form Factor | 2RU Rack-Mountable |
| Total System Throughput | Up to 6.4 Tbps |
| Modular Expansion | 4 Modular Port Adapter (MPA) slots |
| Per-Slot Capacity | 1.6 Tbps per MPA |
| Supported Port Speeds | 1G, 10G, 25G, 40G, 50G, 100G, 400G |
| Maximum Port Density | Up to 72x 1G, 128x 10G/25G, 64x 100G, or 16x 400G |
| Breakout Support | 4x100G, 2x100G, 4x25G, 4x10G |
| Processor | 6-core x86 CPU (2.5GHz) |
| System Memory | 64GB DDR4 |
| Storage | 480GB SSD |
| Operating System | Cisco IOS XR |
| Security | Full line-rate LAN MACsec on all ports |
| Power Supplies | Dual AC or DC, 1+1 redundant |
| Typical Power Consumption | ~375W (without optics) |
| Cooling | 4 hot-swappable fans, 3+1 redundancy |
| Airflow Options | Front-to-back or back-to-front |
| Management Interfaces | RJ45 serial, 1x RJ45 management, USB |
| Timing & Sync | PTP Class C, SyncE, GNSS |
| Dimensions (H x W x D) | 3.5 in x 17.3 in x 23.6 in |
| Weight | Approx. 55 lb (25 kg) |
