Description

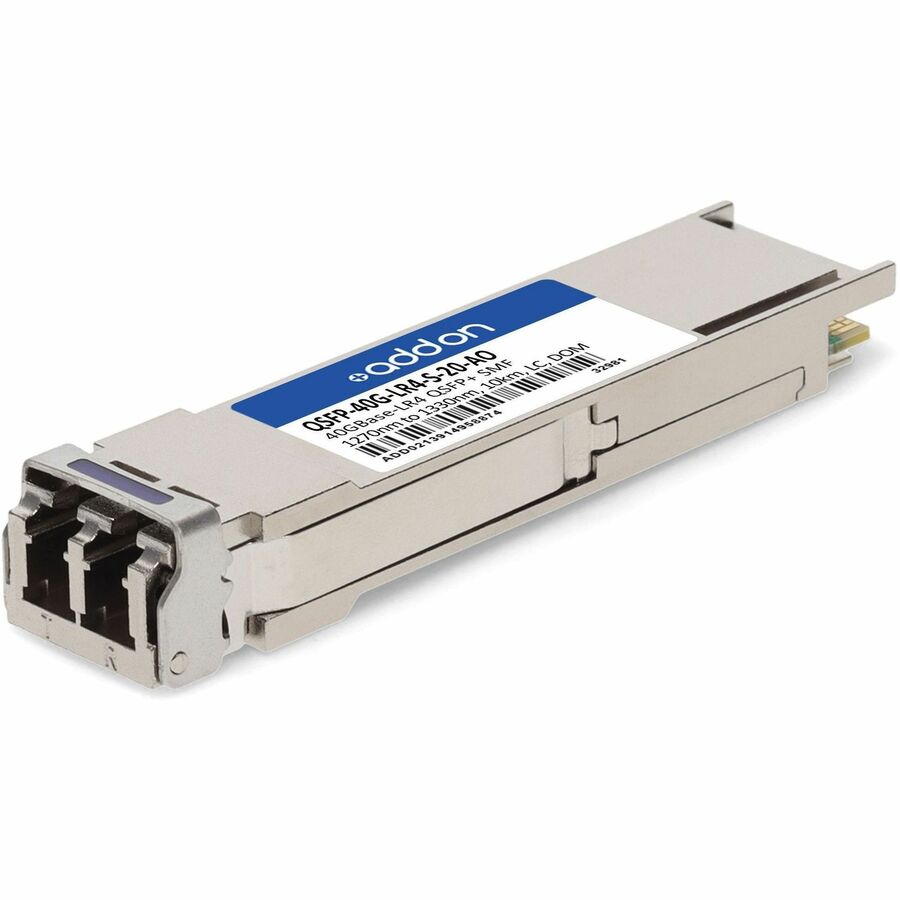

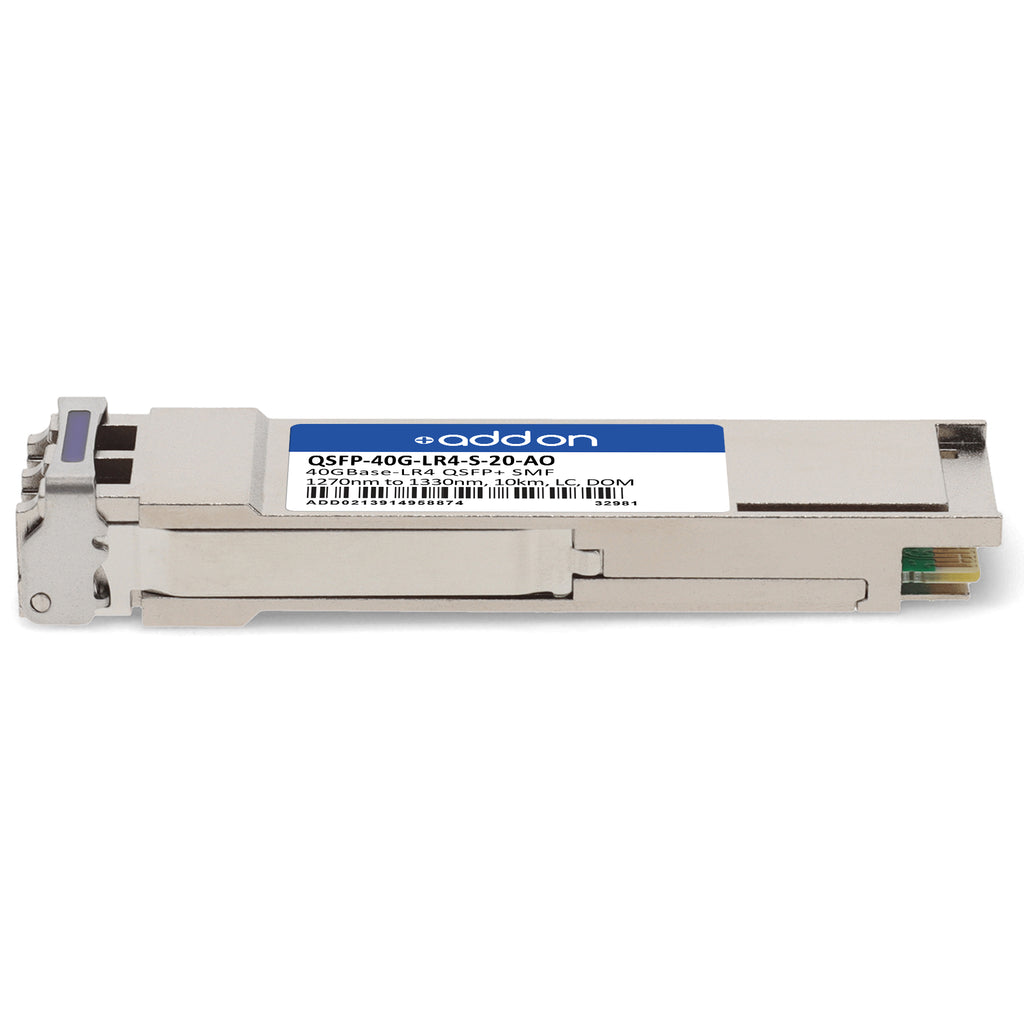

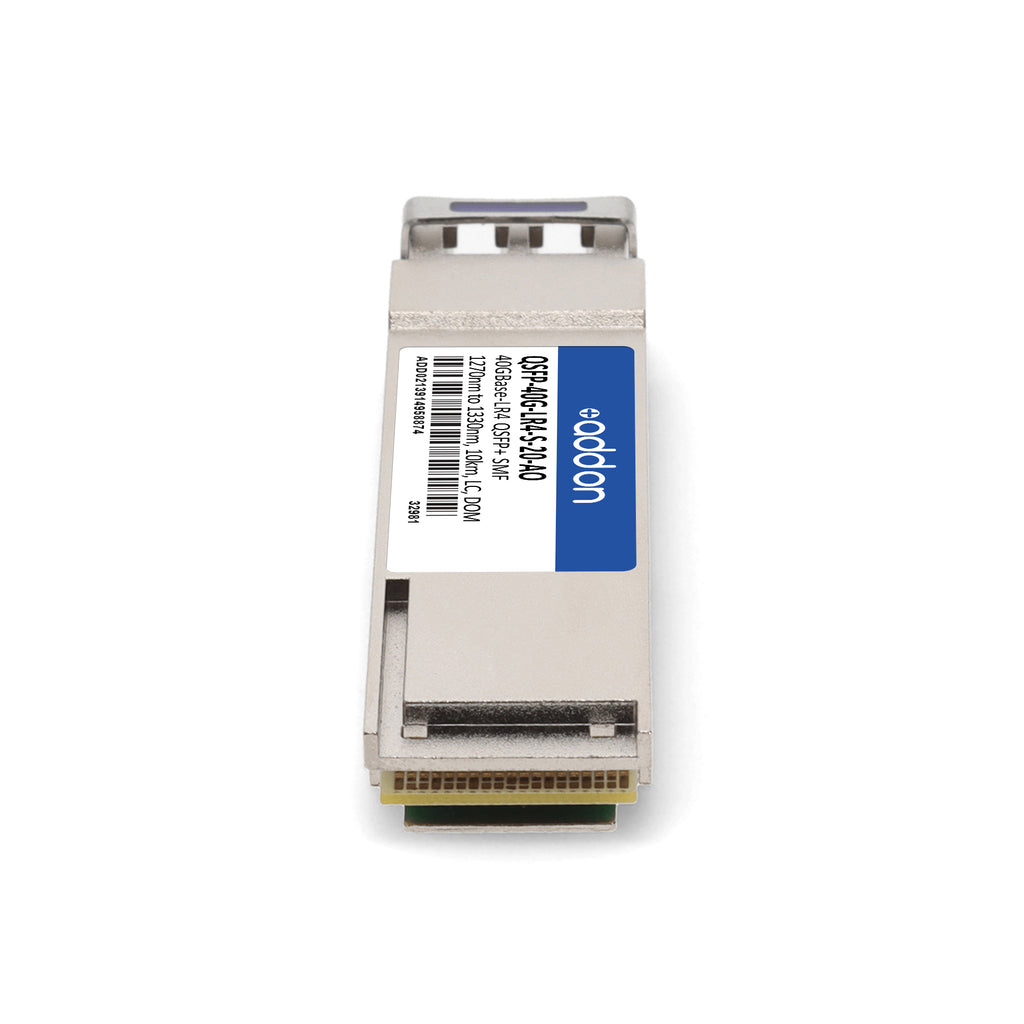

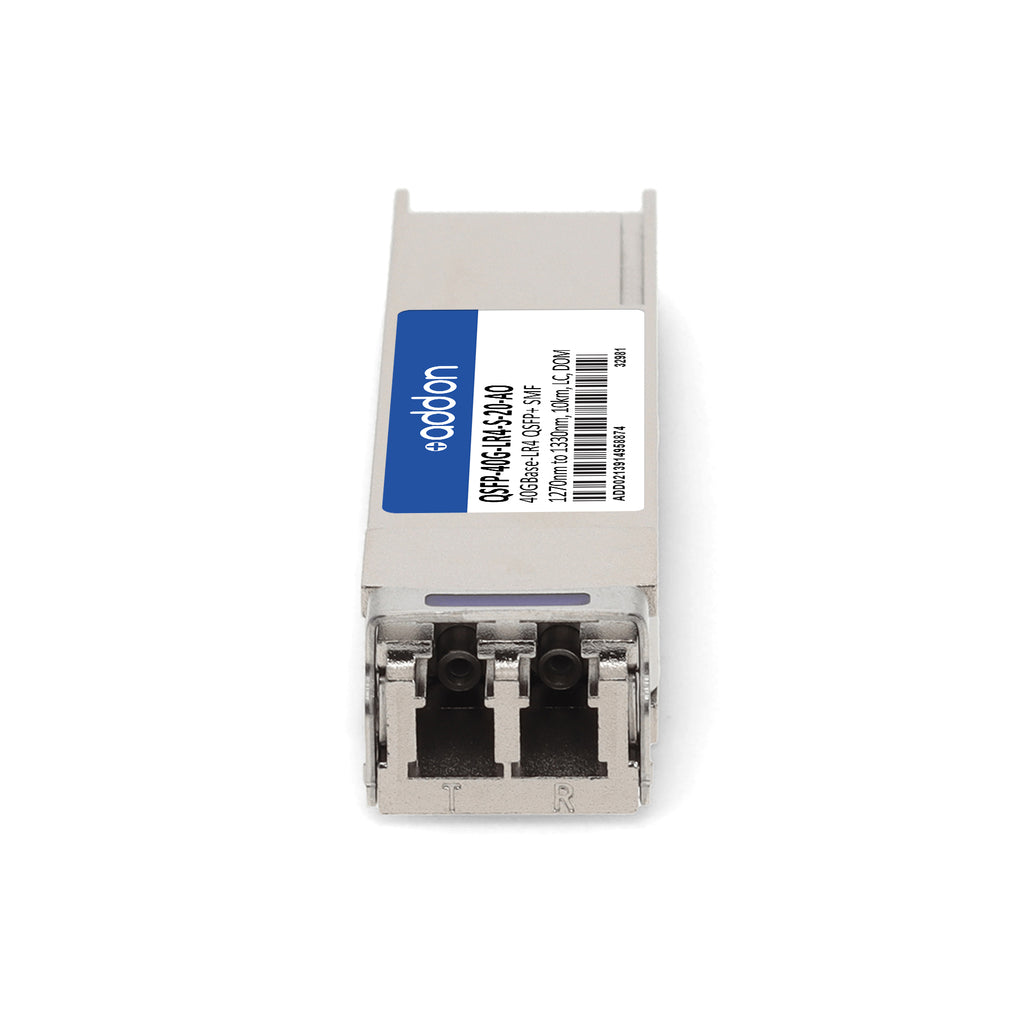

The AddOn Cisco® QSFP-40G-LR4-S-20 Compatible TAA 40GBase-LR4 QSFP+ Transceiver delivers reliable 40 Gigabit Ethernet connectivity over single-mode fiber (SMF) for distances up to 20 kilometers. Operating across 1270nm to 1330nm CWDM wavelengths, it utilizes 4 DFB laser channels and a 4-lane CWDM Mux/Demux design for robust, high-speed performance.
Engineered for seamless interoperability, this hot-swappable module is 100% compatible with the original Cisco® transceiver and supports Digital Optical Monitoring (DOM) for real-time diagnostics of key parameters. It complies with IEEE 802.3ba, QSFP+ MSA, and TAA requirements, making it an ideal solution for enterprise, data center, and access network applications. AddOn’s rigorous testing ensures guaranteed performance and reliability, backed by a limited lifetime warranty.
| Specification | Details |
|---|---|
| Brand | AddOn |
| Compatibility | Cisco® QSFP-40G-LR4-S-20 |
| Form Factor | QSFP+ |
| Data Rate | 40 Gbps (4 × 10.3125 Gbps) |
| Wavelength | 1270nm – 1330nm (CWDM, 4 channels) |
| Reach / Distance | Up to 20 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | LC Duplex |
| Transmitter Type | 4 × CWDM DFB Lasers |
| Receiver Type | 4 × PIN Photodiode |
| Digital Diagnostics (DOM) | Supported |
| Operating Temperature | 0°C to 70°C |
| Power Dissipation | ≤ 3.5 W |
| Supply Voltage | 3.3 V |
| Optical Launch Power (per lane) | -3 dBm to +2.3 dBm |
| Receiver Sensitivity (OMA) | ≤ -11.5 dBm |
| Extinction Ratio | ≥ 3.5 dB |
| Compliance | IEEE 802.3ba, QSFP+ MSA, SFF-8436, TAA, RoHS |
| Applications | 40G Ethernet, Access, Enterprise, Data Center |
| Warranty | Limited Lifetime Warranty |
