Description

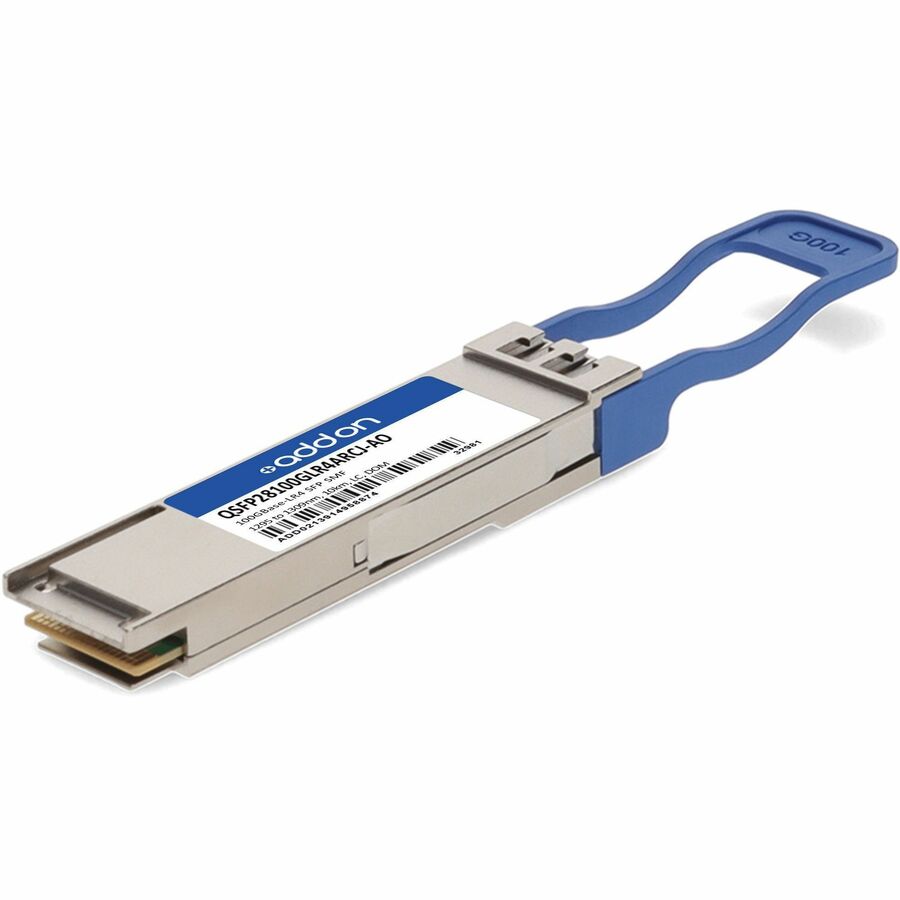

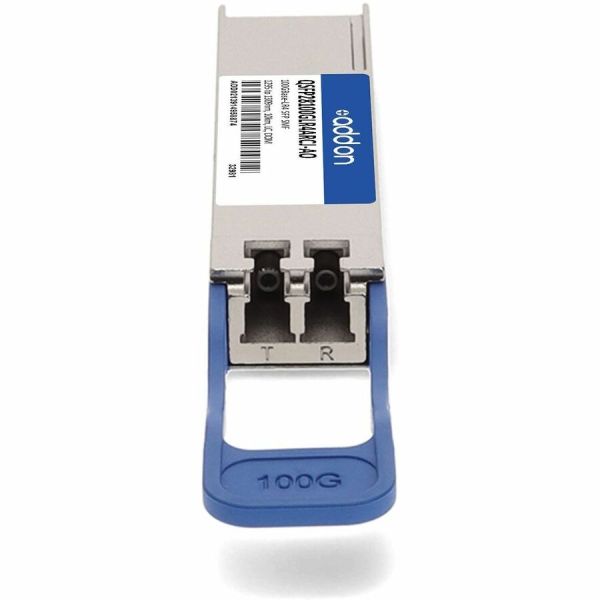

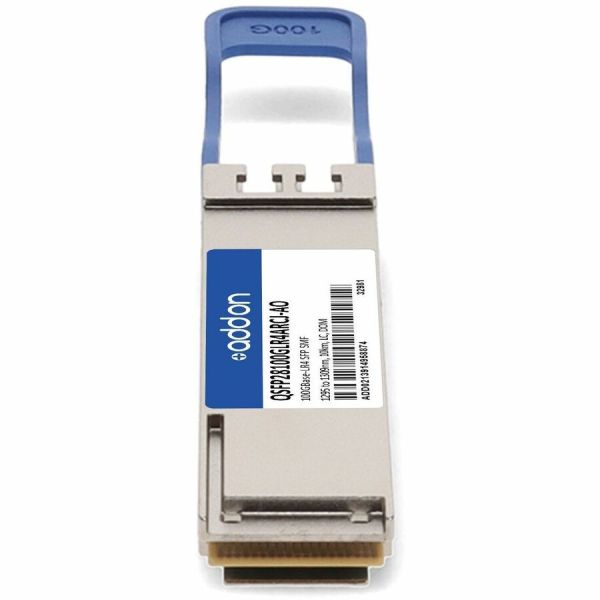

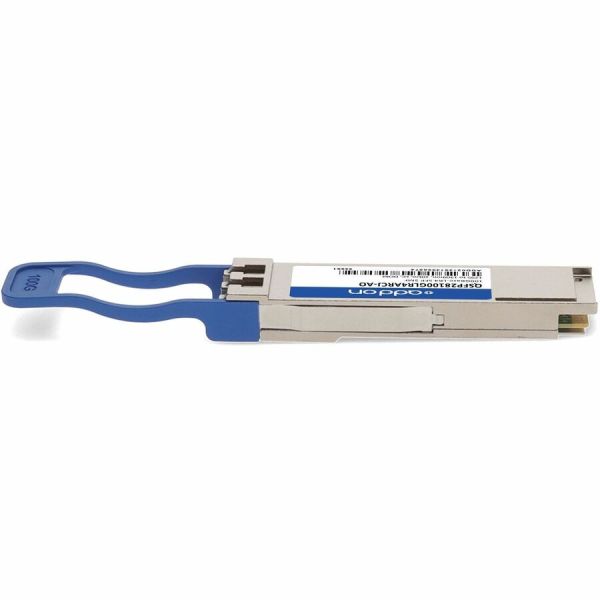

The AddOn Cisco®, Arista®, and Juniper® compatible QSFP28100GLR4ARCJ-AO is a high-performance QSFP28 optical transceiver designed for data center, enterprise, and carrier-grade networking environments. Delivering 100GBase-LR4 throughput over single-mode fiber (SMF), it supports transmission distances up to 10km using a wavelength range of 1295nm to 1309nm via an LC duplex connector.
Engineered to meet or exceed OEM specifications, this hot-swappable, easy-to-install module ensures seamless integration into existing network infrastructure. It is programmed, uniquely serialized, and rigorously tested for performance and reliability to guarantee 100% compatibility with Cisco®, Arista®, and Juniper® systems. The transceiver includes Digital Optical Monitoring (DOM) support, enabling real-time access to critical parameters like optical output power and temperature. TAA compliance ensures suitability for government and federal deployments, while RoHS and WEEE adherence support environmentally responsible networking solutions.
| Specification | Details |
|---|---|
| SKU | QSFP28100GLR4ARCJ-AO |
| Brand | AddOn |
| Compatibility | Cisco®, Arista®, Juniper® |
| Form Factor | QSFP28 |
| Application/Usage | Data Networking, Optical Network |
| Connector Type | LC Duplex |
| Port Count | 1 |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Wavelength | 1295nm – 1309nm |
| Ethernet Technology | 100 Gigabit Ethernet |
| Network Technology | 100GBase-LR4 |
| Maximum Distance Supported | 10 km |
| Maximum Data Transfer Rate | 100 Gbit/s |
| Features | Digital Optical Monitoring (DOM), Hot-swappable, Plug-and-Play |
| Compliance | TAA Compliant, RoHS, WEEE |
| Operating Temperature Range | 0°C to 70°C (32°F to 158°F) |
| Dimensions (H x W x D) | 0.4" x 0.6" x 2.2" |
| Weight | 0.20 lb |
| Warranty | Lifetime Limited Warranty |
