Description

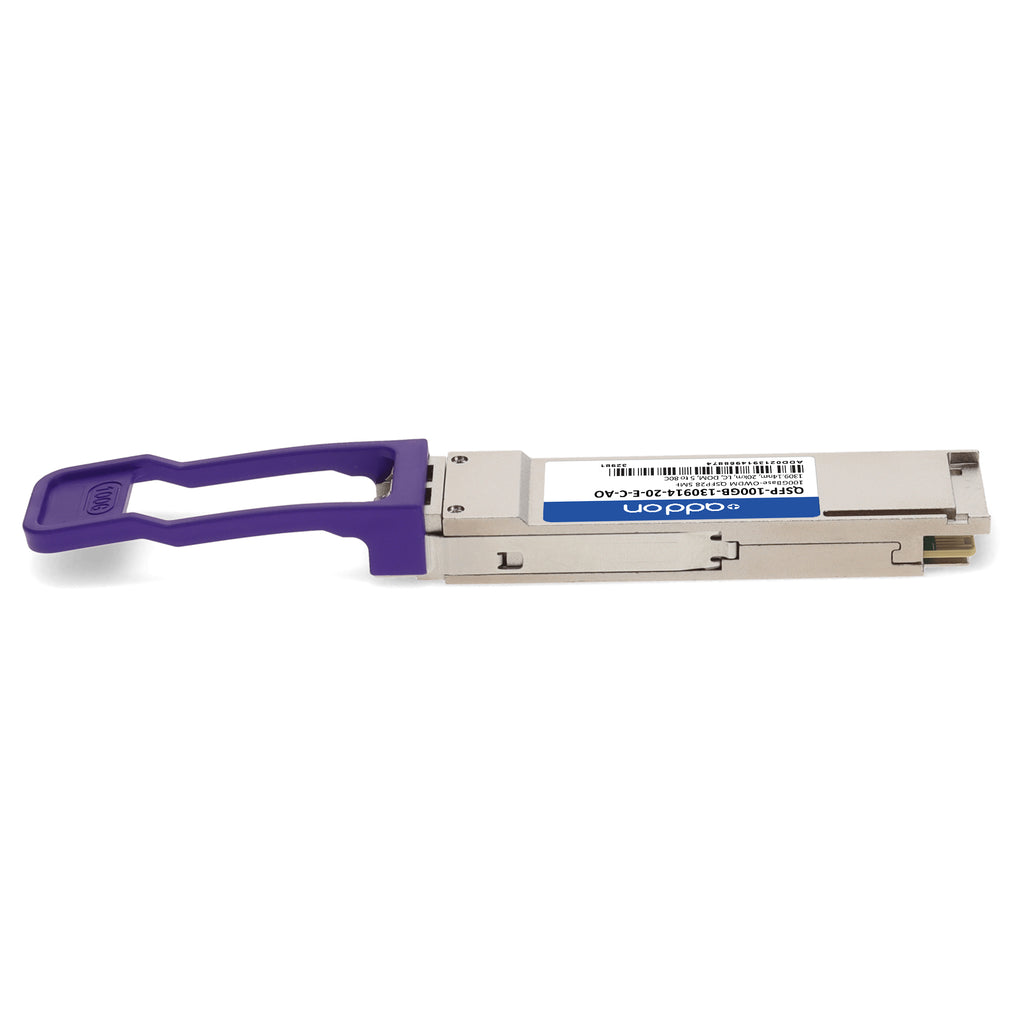

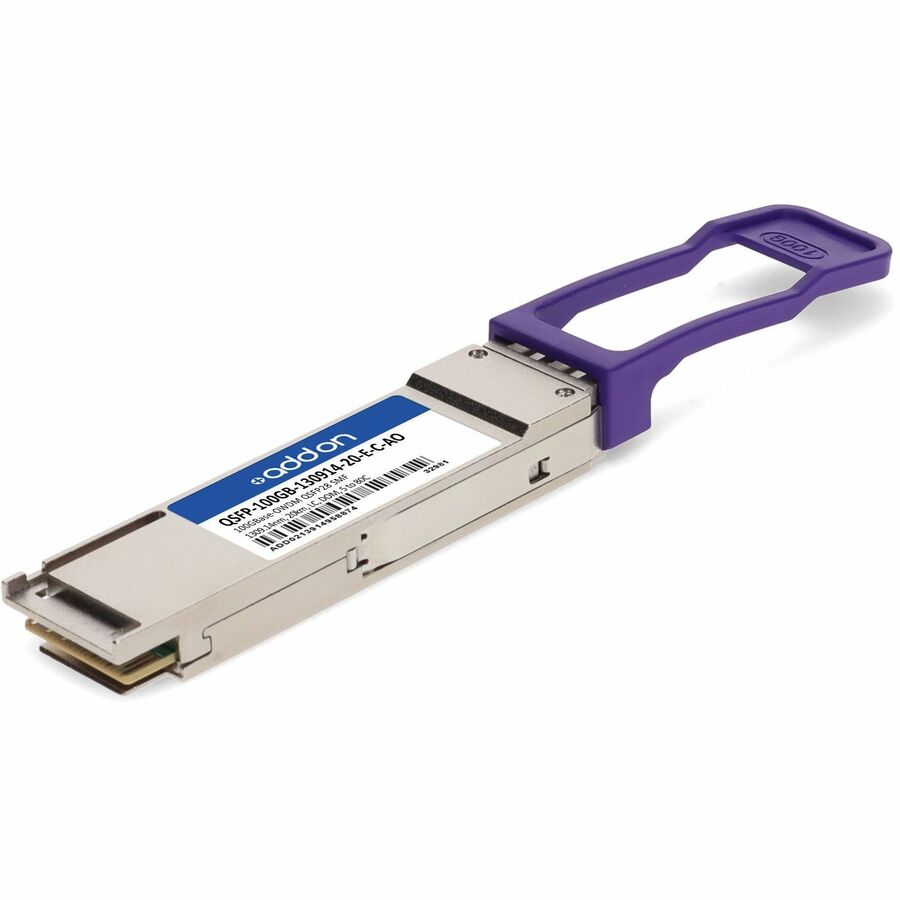

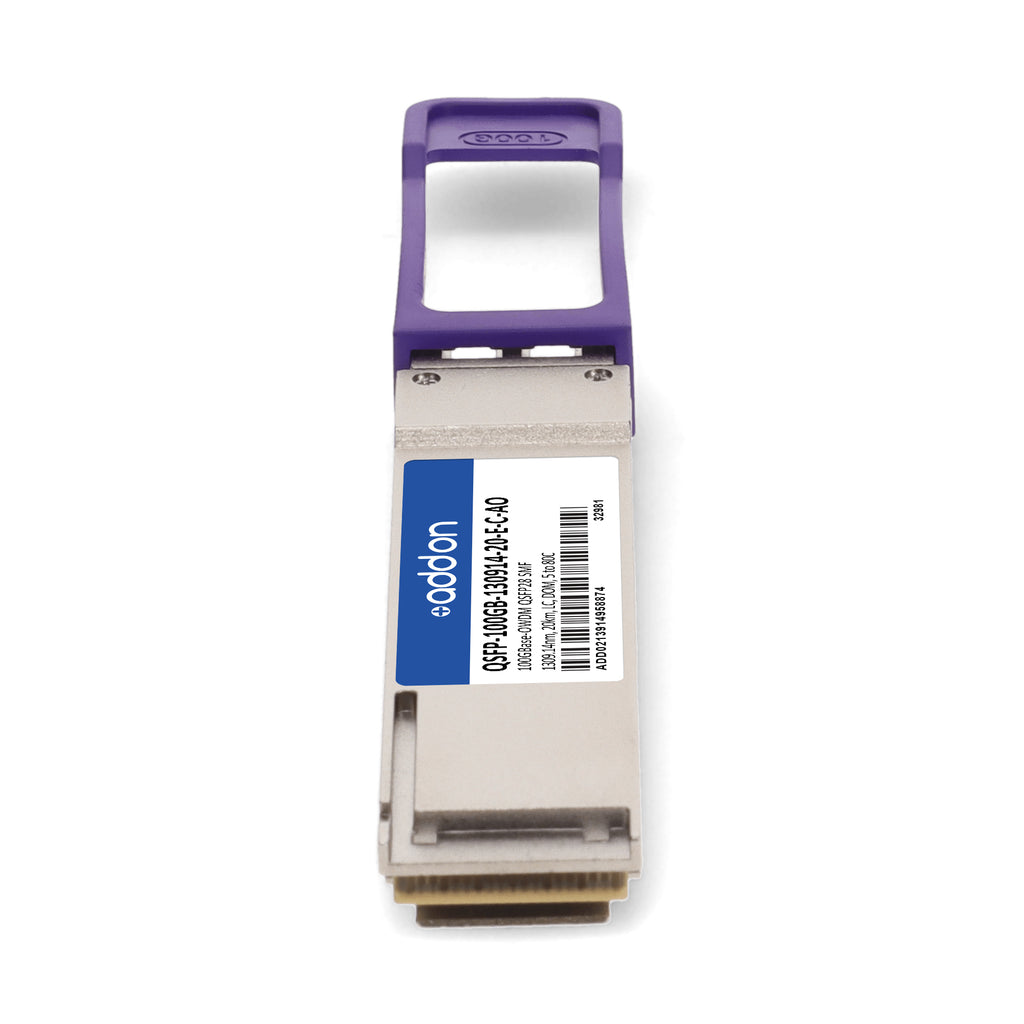

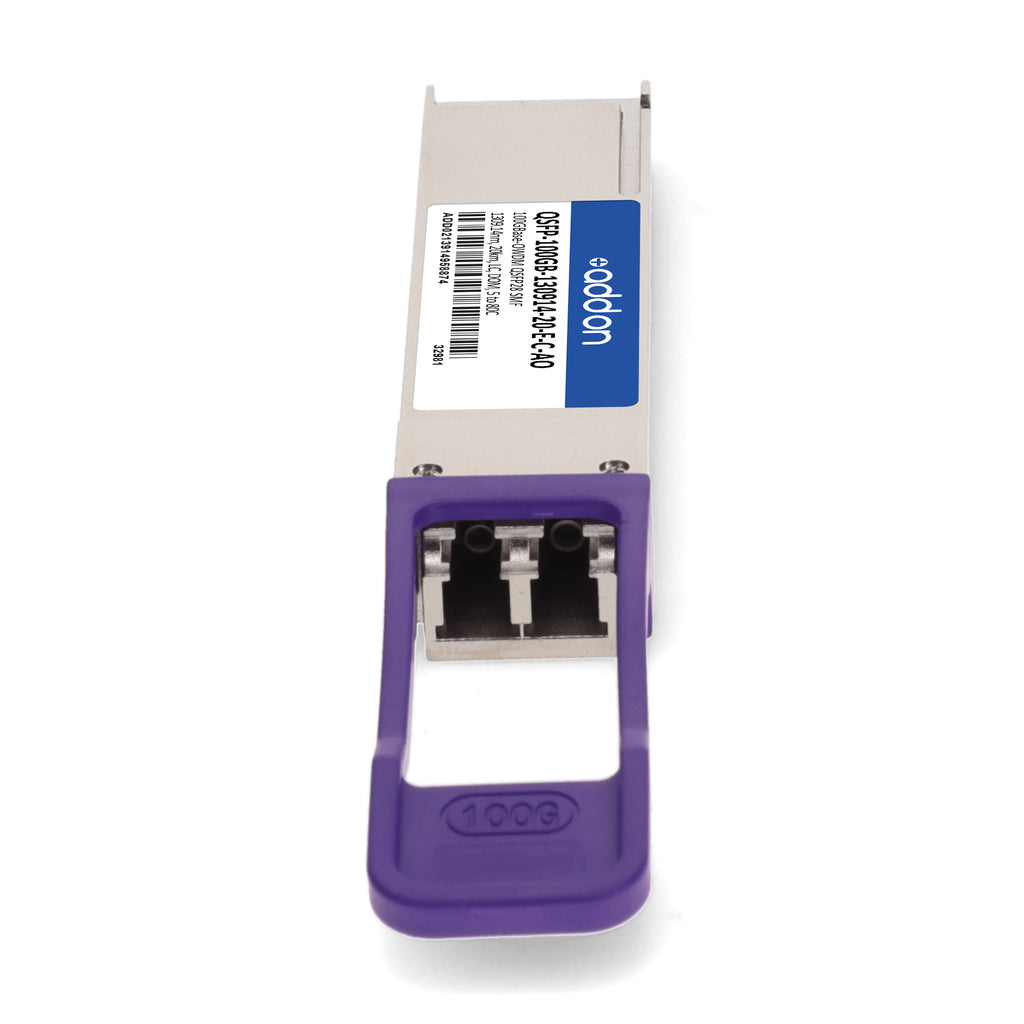

The AddOn Cisco® QSFP-100GB-130914-20-E-C-AO is a 100GBase-OWDM QSFP28 optical transceiver designed for high-performance data center, enterprise, and access network applications. Engineered to deliver 106.25Gbps PAM4 throughput over single-mode fiber (SMF) up to 20km, this module operates on the O-band wavelength of 1309.14nm and uses a duplex LC connector. It supports OWDM with 8 wavelengths and integrates a high-sensitivity APD receiver for enhanced performance. Fully compliant with QSFP28 MSA, IEEE 802.3bs, and 100G Lambda MSA standards, this hot-swappable transceiver ensures seamless compatibility with Cisco® systems. Digital Optical Monitoring (DOM) provides real-time diagnostic data for optimal performance monitoring. TAA-compliant and rigorously tested, this transceiver guarantees reliable performance and is backed by AddOn’s limited lifetime warranty.
| Specification | Details |
|---|---|
| SKU | QSFP-100GB-130914-20-E-C-AO |
| Brand Compatibility | Cisco® |
| Form Factor | QSFP28 |
| Data Rate | 106.25Gbps (PAM4) |
| Wavelength | 1309.14nm (O-band Channel OW309) |
| Transmission Distance | Up to 20km over SMF |
| Connector | Duplex LC |
| Optical Technology | OWDM, 8 Wavelengths |
| Receiver Type | High Sensitivity APD |
| Digital Diagnostic Monitoring (DOM) | Supported |
| Operating Temperature | -5°C to +80°C |
| Power Supply Voltage | +3.3V |
| Power Consumption | 4.4W (typical at 25°C) |
| Average Launch Power | 0 to 3.4 dBm |
| Extinction Ratio | ≥5.0 dB |
| Receiver Sensitivity (OMAouter) | ≤ -11.6 dBm (stressed) |
| Standards Compliance | QSFP28 MSA, IEEE 802.3bs, 100G Lambda MSA |
| Applications | 100GBase Ethernet, Data Center, Enterprise, Access Networks |
| TAA Compliance | Yes |
| Hot-Swappable | Yes |
| Warranty | Limited Lifetime Warranty |
