Description

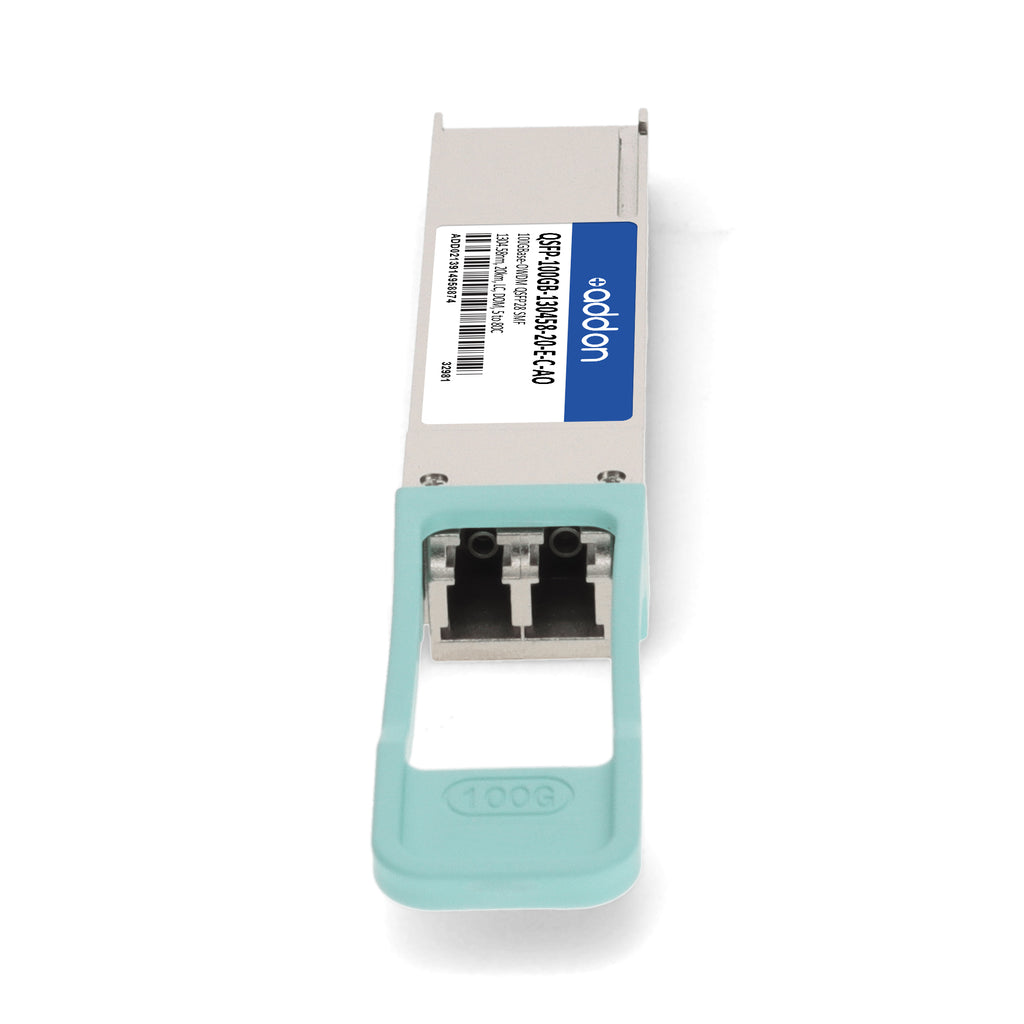

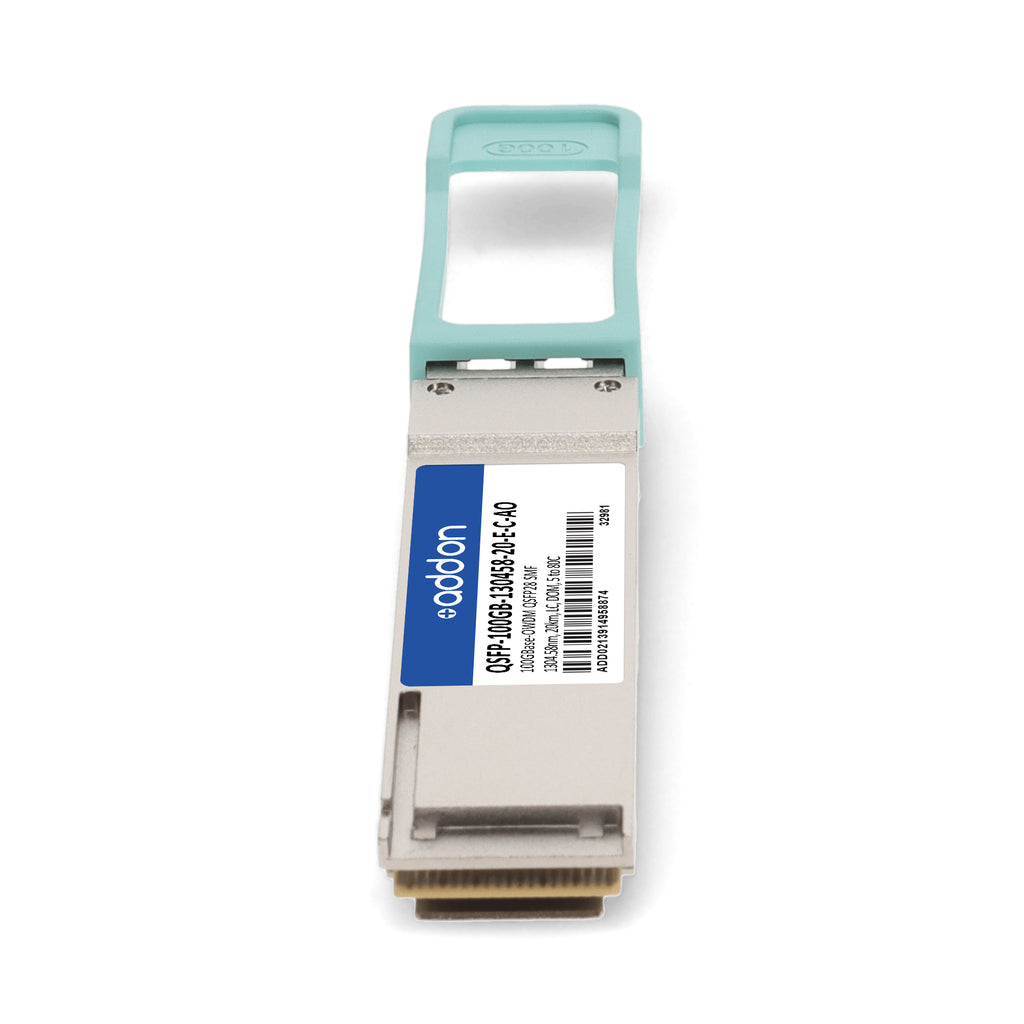

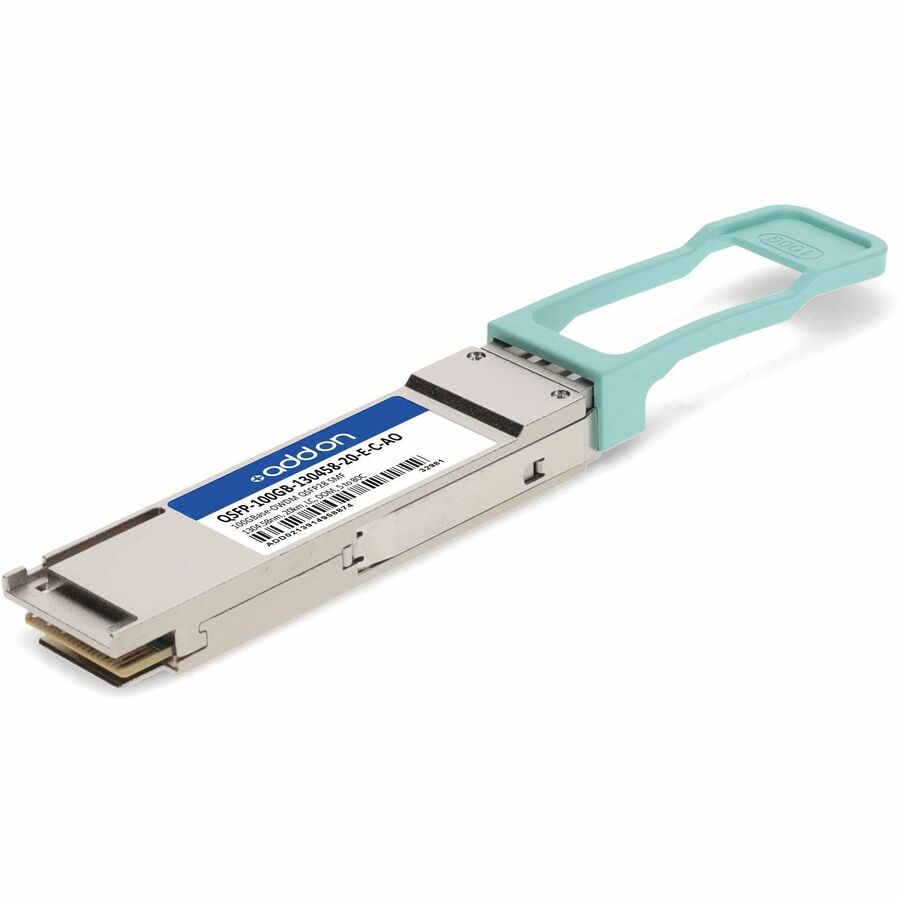

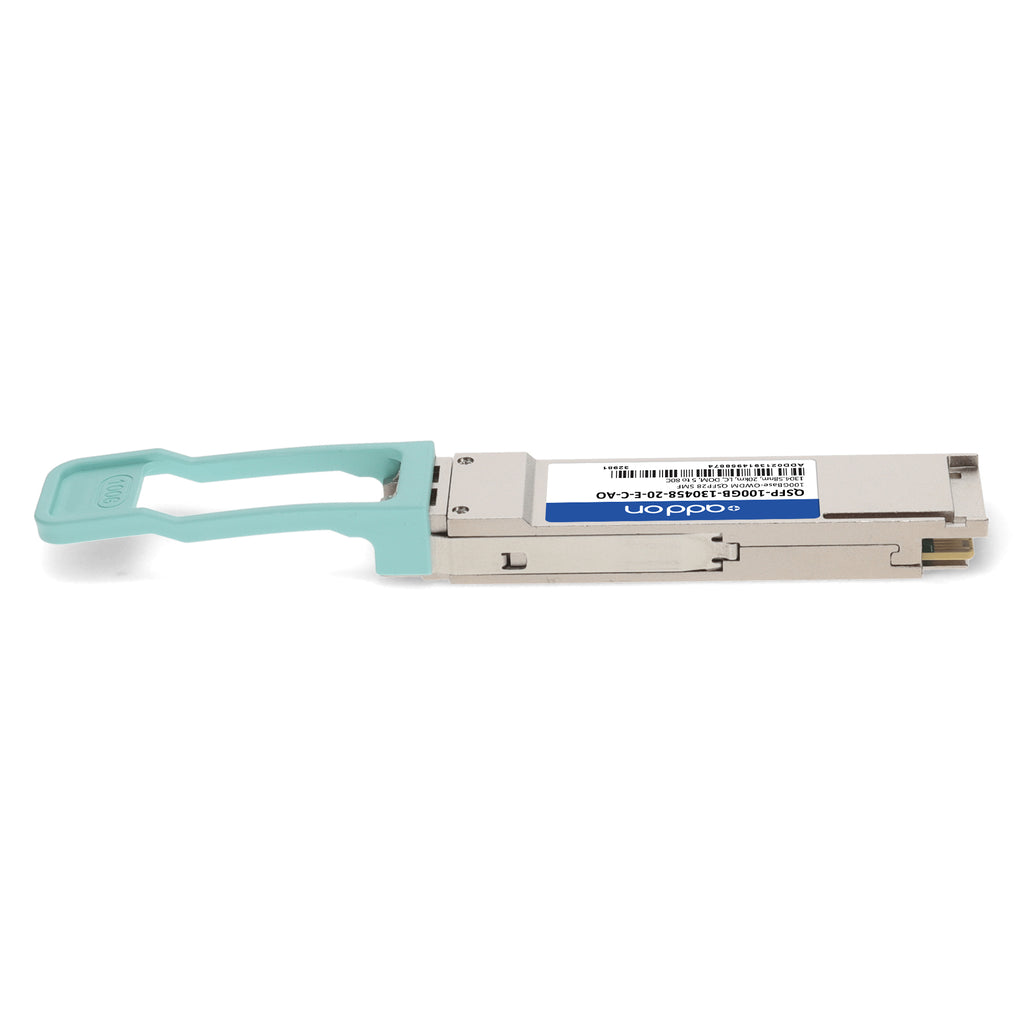

The AddOn Cisco® QSFP-100GB-130458-20-E-C Compatible 100GBase-OWDM QSFP28 Transceiver delivers reliable, high-speed data transmission for enterprise and carrier-grade networks. Supporting data rates up to 106.25Gb/s (PAM4) over single-mode fiber (SMF), this transceiver operates at a wavelength of 1304.58nm and offers a reach of up to 20km via a duplex LC connector. Designed for demanding environments, it features a high-sensitivity APD receiver, OWDM 8-wavelength technology, and a robust operating temperature range from -5°C to +80°C. The module is fully compliant with QSFP28 MSA, IEEE 802.3bs, and 100G Lambda MSA standards. With hot-pluggable functionality, Digital Optical Monitoring (DOM), and TAA compliance, this transceiver ensures seamless integration and reliable performance in Cisco® network environments. Each unit is programmed, serialized, and rigorously tested to guarantee 100% OEM compatibility and optimal operation.
| Specification | Details |
|---|---|
| SKU | QSFP-100GB-130458-20-E-C-AO |
| Form Factor | QSFP28 |
| Data Rate | 106.25 Gb/s (PAM4) |
| Application | 100GBase Ethernet, Access, Enterprise |
| Wavelength | 1304.58 nm (O-Band OWDM Channel OW304, 50GHz) |
| Reach / Distance | Up to 20 km over SMF |
| Connector | Duplex LC |
| Tx Modulation | PAM4 |
| Rx Modulation | PAM |
| Receiver Type | High Sensitivity APD |
| Operating Temperature | -5°C to +80°C |
| Power Supply Voltage | +3.3 V |
| Power Consumption | 4.4 W (typical at 25°C) |
| Digital Diagnostics (DOM) | Supported |
| MSA Compliance | QSFP28 MSA, IEEE 802.3bs, 100G Lambda MSA |
| Optical Launch Power | 0 to 3.4 dBm |
| Receiver Sensitivity (OMAouter) | Max. (-14.0 dBm, SECQ-15.4) |
| Extinction Ratio | ≥ 5.0 dB |
| Side-Mode Suppression Ratio (SMSR) | ≥ 30 dB |
| Optical Return Loss Tolerance | 15.6 dB |
| Management Interface | I2C |
| Hot-Pluggable | Yes |
| Compliance | TAA, RoHS, Lead-Free |
| Warranty | Limited Lifetime Warranty |
