Description

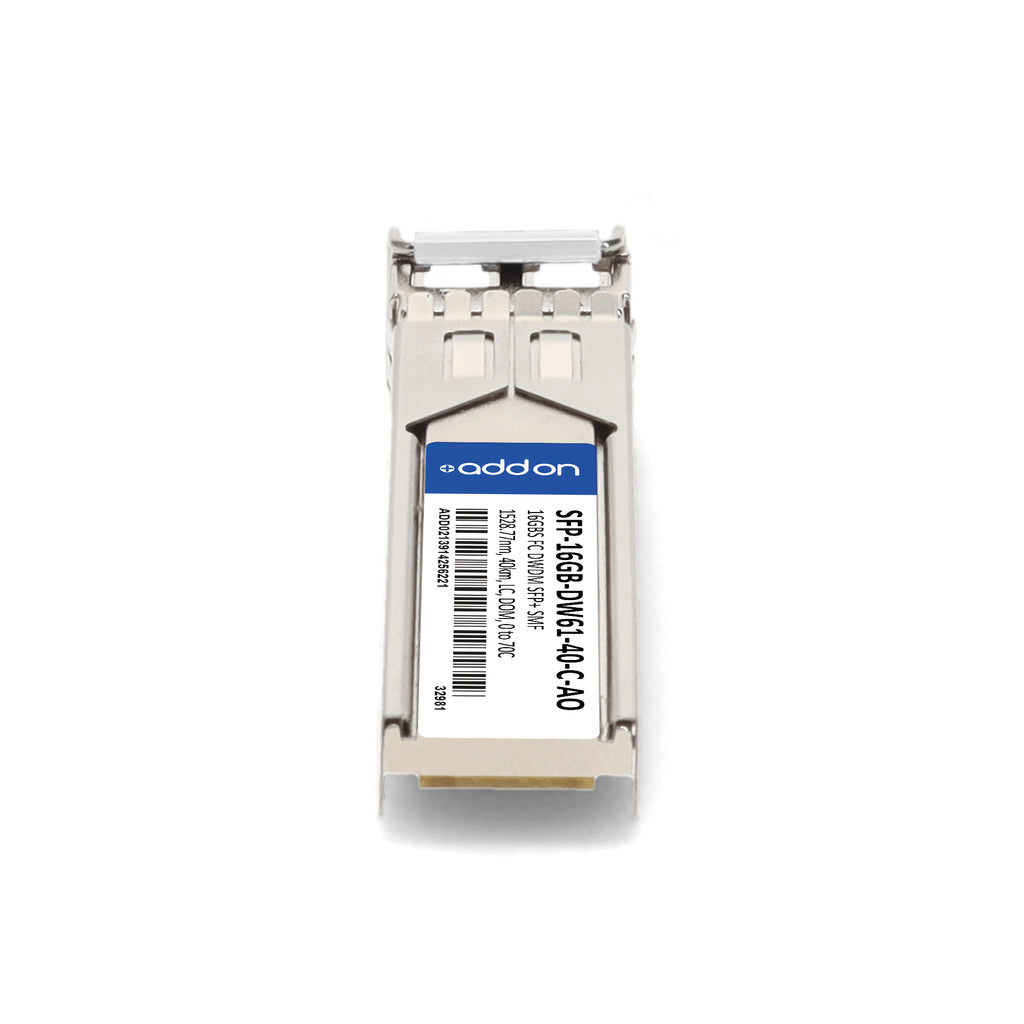

The AddOn Cisco® SFP-16GB-DW61-40-C Compatible 16GBase-DWDM FC SFP+ Transceiver is a high-performance, hot-pluggable optical module designed to deliver reliable Fibre Channel connectivity up to 40 km over single-mode fiber (SMF). Operating at a wavelength of 1528.77 nm (ITU Channel DW61), this transceiver supports data rates up to 14.025 Gbps, making it ideal for 8G/10G Fibre Channel, 16G FC, and DWDM applications across access, metro, and enterprise networks.
Engineered with a cooled EML transmitter and PIN receiver, it ensures excellent optical performance and stability. Digital Optical Monitoring (DOM) is integrated for real-time diagnostics of optical power, temperature, and voltage. Fully compliant with SFF-8432, SFF-8472, and RoHS 2.0, and TAA-compliant, this transceiver is rigorously tested for interoperability and is guaranteed to be 100% compatible with Cisco® OEM hardware.
| Specification | Details |
|---|---|
| Brand | AddOn |
| SKU | SFP-16GB-DW61-40-C-AO |
| Form Factor | SFP+ |
| Compatibility | Cisco® |
| Data Rate | 4.25 – 14.025 Gbps |
| Transmission Standard | 16GBase-DWDM Fibre Channel |
| Wavelength | 1528.77 nm (DW61, 100GHz) |
| Optical Reach | Up to 40 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Transmitter Type | Cooled EML |
| Receiver Type | PIN |
| Optical Output Power | -1 to +3 dBm |
| Receiver Sensitivity | ≤ -14 dBm |
| Receiver Overload | 0.5 dBm |
| Extinction Ratio | ≥ 8.2 dB |
| Spectral Width | ≤ 1 nm |
| Digital Diagnostic Monitoring (DOM) | Supported |
| Operating Temperature | 0°C to +70°C (Commercial) |
| Storage Temperature | -40°C to +85°C |
| Supply Voltage | 3.135 – 3.465 V |
| Power Consumption | ≤ 550 mA |
| Compliance Standards | SFF-8432, SFF-8472, FCC Part 15B, EN55022:2010, FDA 21CFR, IEC 60825-1/2 |
| Environmental Compliance | RoHS 2.0, Lead-Free |
| TAA Compliance | Yes |
| Hot Pluggable | Yes |
| Warranty | Limited Lifetime Warranty |
