Description

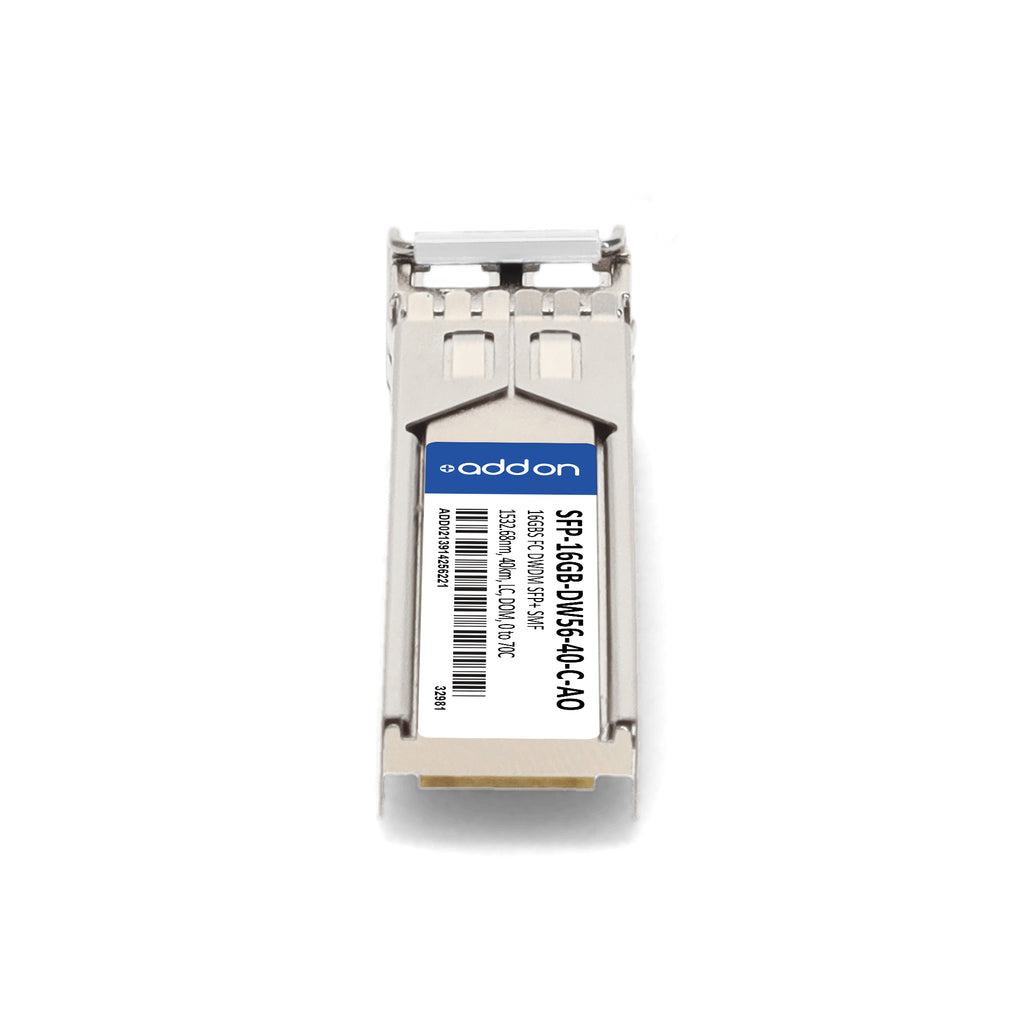

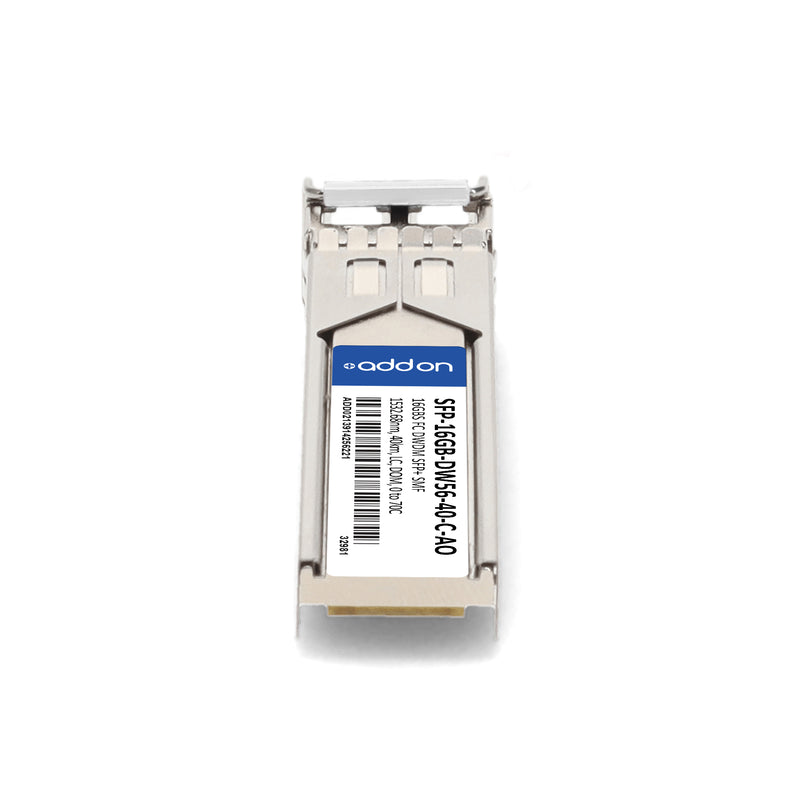

The AddOn Cisco® Compatible SFP-16GB-DW56-40-C-AO is a high-performance, hot-swappable 16GBase-DWDM Fibre Channel SFP+ transceiver designed for long-distance data transmission over single-mode fiber (SMF) up to 40 km. Operating at a 1532.68 nm wavelength (ITU Channel DW56), this module delivers reliable and high-speed connectivity for 8x/10x Fibre Channel and 16G Gigabit Ethernet over DWDM applications.
Built with a cooled EML transmitter and PIN receiver, it offers Digital Optical Monitoring (DOM) for real-time diagnostics and meets industry standards such as SFF-8432, SFF-8472, and RoHS 2.0. The transceiver is TAA compliant, ensuring it meets U.S. government procurement requirements, and undergoes 100% data traffic and compatibility testing for guaranteed performance and seamless interoperability with Cisco® systems.
With excellent ESD protection, low EMI, and robust construction, this module is ideal for access, metro, and enterprise network environments demanding consistent and scalable optical performance.
| Specification | Details |
|---|---|
| Brand | AddOn |
| SKU | SFP-16GB-DW56-40-C-AO |
| Compatibility | Cisco® |
| Form Factor | SFP+ |
| Data Rate | 16GBase-DWDM Fibre Channel |
| Wavelength | 1532.68 nm (DW56, ITU 100GHz) |
| Transmission Distance | Up to 40 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Transmitter Type | Cooled EML |
| Receiver Type | PIN |
| Digital Optical Monitoring (DOM) | Supported |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Power Supply Voltage | 3.135 – 3.465 V |
| Power Consumption | ≤ 550 mA |
| Average Output Power | -1 to +3 dBm |
| Receiver Sensitivity | ≤ -14 dBm |
| Receiver Overload | 0.5 dBm |
| Extinction Ratio | ≥ 8.2 dB |
| Spectral Width | ≤ 1 nm |
| Compliance Standards | SFF-8432, SFF-8472, FCC Part 15, EN55022:2010, FDA 21CFR, EN/IEC 60825-1/2, RoHS 2.0 |
| Applications | 8x/10x Fibre Channel, 16G Ethernet over DWDM, Access/Metro/Enterprise |
| Hot-Pluggable | Yes |
| TAA Compliant | Yes |
| Warranty | Limited Lifetime Warranty |
