Description

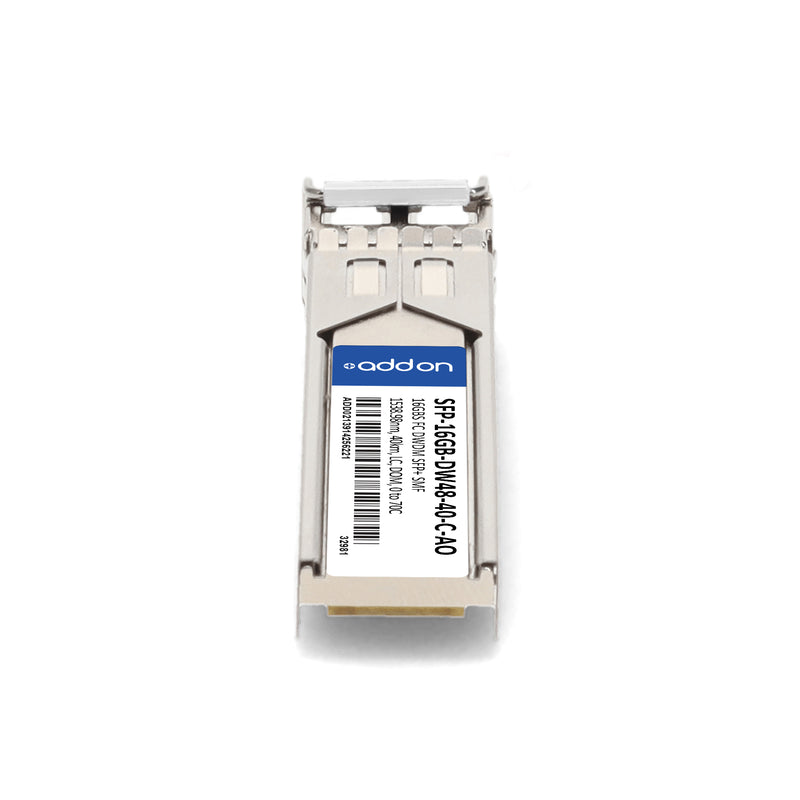

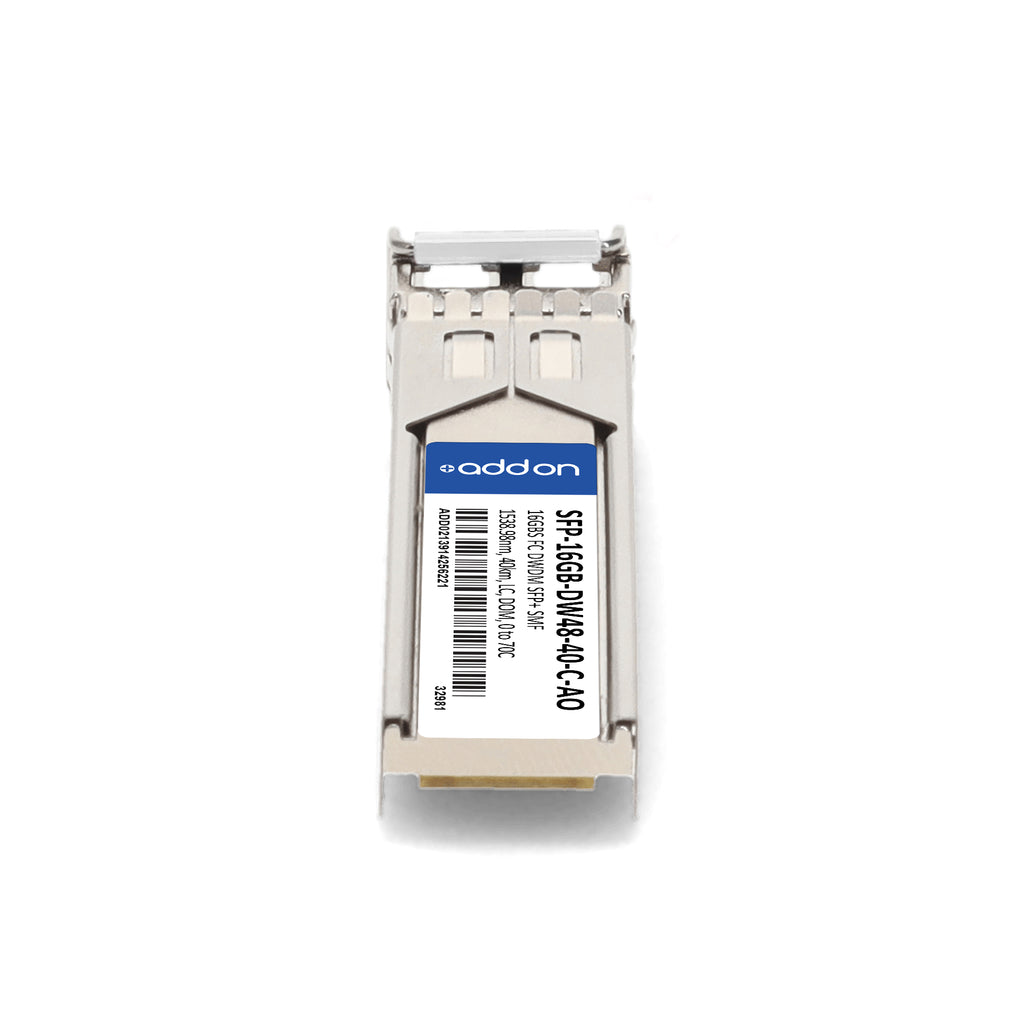

The AddOn Cisco® SFP-16GB-DW48-40-C-AO is a high-performance, hot-pluggable SFP+ transceiver designed for 16GBase-DWDM Fibre Channel applications over single-mode fiber (SMF). Operating at a 1538.98 nm wavelength (ITU Channel DW48) with a cooled EML transmitter and PIN receiver, it delivers reliable data transmission up to 40 km. This transceiver is fully compliant with SFF-8432 and SFF-8472 standards and supports digital optical monitoring (DOM) for real-time diagnostics. Engineered for seamless interoperability, it is 100% compatible with the equivalent Cisco® transceiver and is TAA-compliant for government procurement. Featuring excellent ESD protection, low EMI design, and superior build quality, this module is ideal for enterprise, metro, and access network deployments where high-capacity Fibre Channel and DWDM performance are essential.
| Specification | Details |
|---|---|
| Brand Compatibility | Cisco® |
| Part Number | SFP-16GB-DW48-40-C-AO |
| Form Factor | SFP+ |
| Data Rate | 16GBase-DWDM Fibre Channel |
| Wavelength | 1538.98 nm (ITU Channel DW48, 100 GHz spacing) |
| Transmission Distance | Up to 40 km |
| Connector Type | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Transmitter Type | Cooled EML |
| Receiver Type | PIN |
| Digital Optical Monitoring (DOM) | Supported |
| Temperature Range | 0 °C to 70 °C (Commercial) |
| Compliance Standards | SFF-8432, SFF-8472, RoHS, FCC Part 15, EN55022, FDA 21CFR, IEC 60825-1/2 |
| Hot-Swappable | Yes |
| Applications | 8G/10G/16G Fibre Channel, DWDM, Access, Metro, Enterprise Networks |
| Maximum Output Power | -1 dBm to +3 dBm |
| Receiver Sensitivity | ≤ -14 dBm |
| Extinction Ratio | ≥ 8.2 dB |
| Average Power Consumption | ≤ 550 mA @ 3.3 V |
| ESD Protection | MIL-STD-883E Method 3015.4, IEC 61000-4-3 |
| TAA Compliance | Yes |
| Warranty | Limited Lifetime Warranty |
