Description

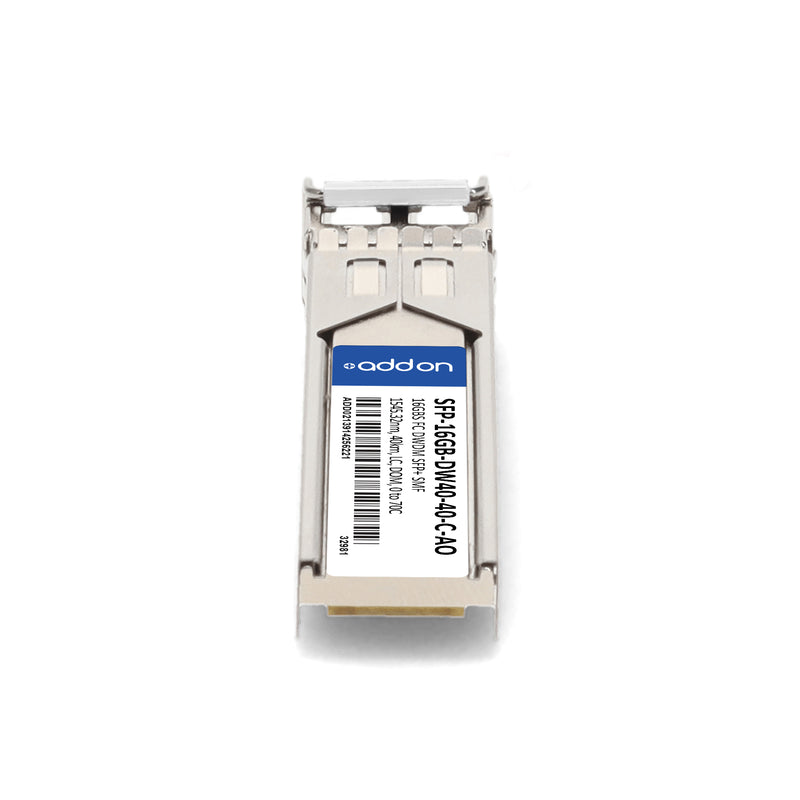

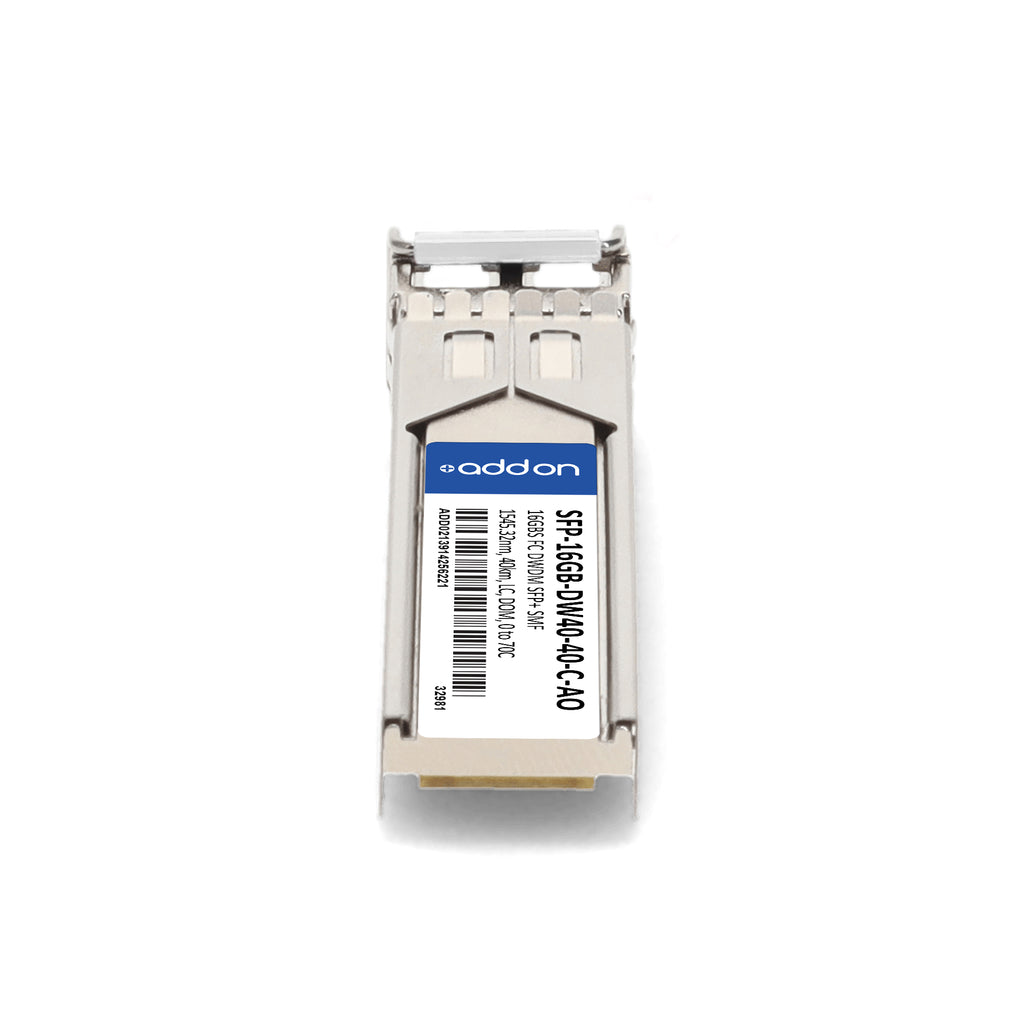

The AddOn SFP-16GB-DW40-40-C-AO is a high-performance, Cisco® compatible 16GBase-DWDM SFP+ transceiver designed for reliable and scalable Fibre Channel and Ethernet connectivity. Engineered for demanding data center, metro, and enterprise network environments, this hot-pluggable optical module delivers up to 16 Gbps throughput over single-mode fiber (SMF) with transmission distances of up to 40 km.
Operating on the DWDM ITU-T Channel 40 (1545.32 nm) at a 100GHz grid spacing, it ensures optimal spectral efficiency for high-density WDM deployments. The transceiver features a cooled EML transmitter and PIN receiver, and supports Digital Optical Monitoring (DOM) for real-time diagnostics of critical parameters such as temperature, optical power, and voltage.
Built to meet stringent industry standards, it complies with SFF-8432/SFF-8472, is RoHS compliant, and TAA compliant for government procurement. Each unit is 100% tested and uniquely serialized to guarantee seamless interoperability and identical performance to the original Cisco® part, all backed by AddOn’s limited lifetime warranty.
| Specification | Details |
|---|---|
| Brand | AddOn |
| SKU | SFP-16GB-DW40-40-C-AO |
| Compatibility | Cisco® Compatible |
| Form Factor | SFP+ |
| Data Rate | 16 Gbps |
| Application | 8x/10x Fibre Channel, 16x Gigabit Ethernet DWDM |
| Wavelength (ITU-T Channel) | Channel DW40 – 1545.32 nm |
| Frequency Spacing | 100 GHz |
| Reach / Distance | Up to 40 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Transmitter Type | Cooled EML |
| Receiver Type | PIN |
| Digital Diagnostics (DOM) | Supported |
| Optical Output Power | -1 to +3 dBm |
| Receiver Sensitivity | ≤ -14 dBm |
| Receiver Overload | 0.5 dBm |
| Extinction Ratio | ≥ 8.2 dB |
| Spectral Width | ≤ 1 nm |
| Operating Temperature | 0°C to +70°C (Commercial) |
| Storage Temperature | -40°C to +85°C |
| Power Supply Voltage | 3.135 – 3.465 V |
| Power Consumption | ≤ 550 mA |
| Hot-Pluggable | Yes |
| Regulatory Compliance | SFF-8432, SFF-8472, RoHS 2.0, MIL-STD-883E, IEC 61000-4-3, FCC Part 15B, EN60950-1, IEC 60825-1/2 |
| TAA Compliant | Yes |
| Warranty | Limited Lifetime Warranty |
