Description

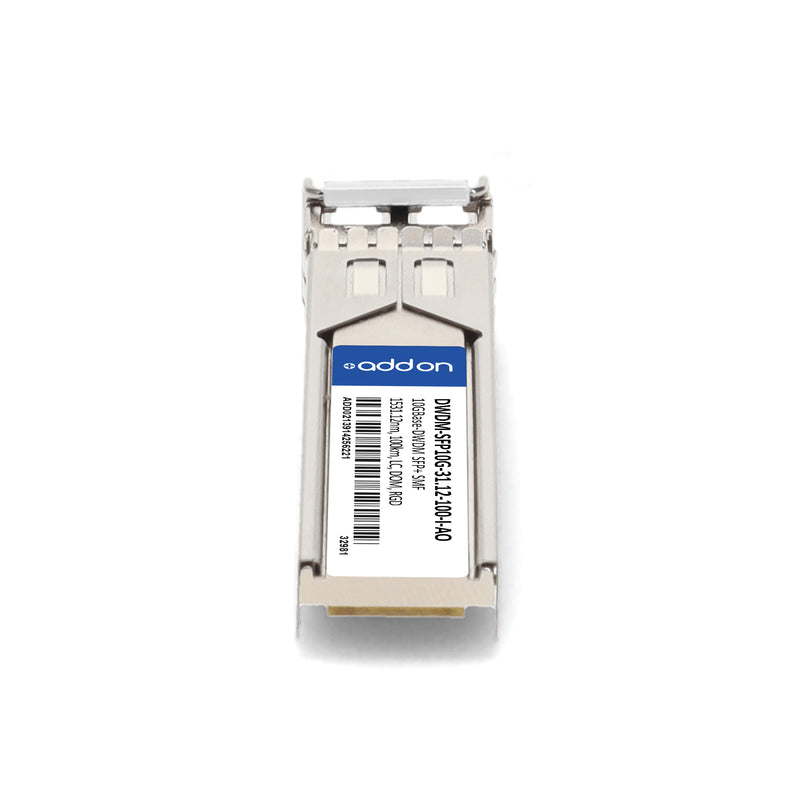

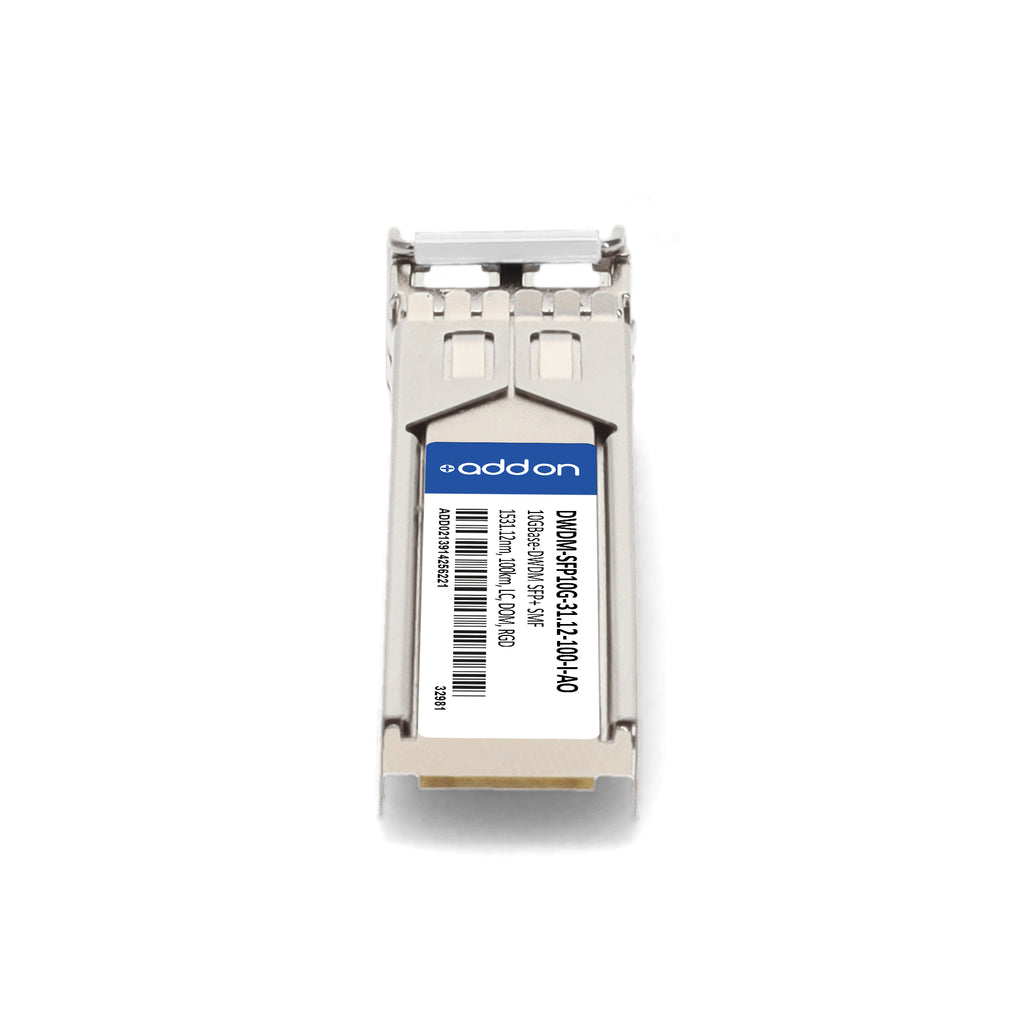

The AddOn Cisco® DWDM-SFP10G-31.12-100-I-AO is a high-performance, TAA-compliant 10GBase-DWDM SFP+ transceiver designed for extended-range data transmission over single-mode fiber (SMF) up to 100 km. Operating on a C-Band 100 GHz channel with a center wavelength of 1531.12 nm, this hot-pluggable module supports 10 Gigabit Ethernet and 8G/10G Fibre Channel applications, making it ideal for access, metro, and enterprise networks. It features a duplex LC connector, digital optical monitoring (DOM) for real-time diagnostics, and industrial-grade reliability with an operating temperature range from -40 °C to 85 °C. Each unit is uniquely serialized, programmed, and rigorously tested to ensure 100% compatibility and identical performance with Cisco® OEM equivalents.
| Specification | Details |
|---|---|
| Brand | AddOn |
| SKU | DWDM-SFP10G-31.12-100-I-AO |
| Compatibility | Cisco® DWDM-SFP10G-31.12-100-I |
| Form Factor | SFP+ |
| Data Rate | 10.3125 Gbps |
| Wavelength | 1531.12 nm (C-Band, 100 GHz spacing) |
| Transmission Distance | Up to 100 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Temperature Range | -40 °C to +85 °C (Industrial) |
| Optical Power (TX) | +1.0 dBm to +4.0 dBm |
| Receiver Sensitivity | ≤ -26 dBm |
| Receiver Overload | ≥ -7 dBm |
| Extinction Ratio | ≥ 9 dB |
| Power Dissipation | ≤ 1.8 W |
| Digital Diagnostics (DOM) | Supported |
| Compliance | SFF-8432, SFF-8472, RoHS, TAA |
| Applications | 10G Ethernet DWDM, 8G/10G Fibre Channel, Access/Metro/Enterprise |
| Hot-Pluggable | Yes |
| Warranty | Limited Lifetime Warranty |
