Description

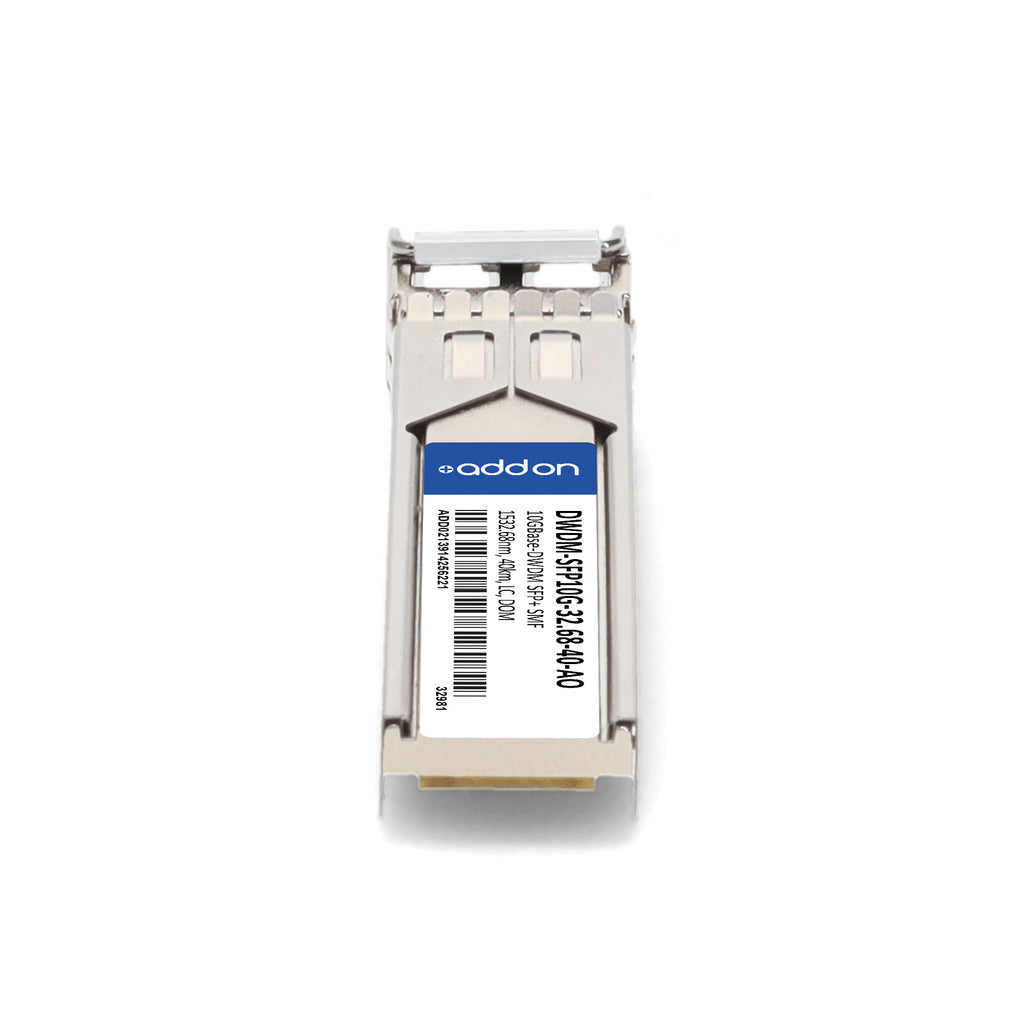

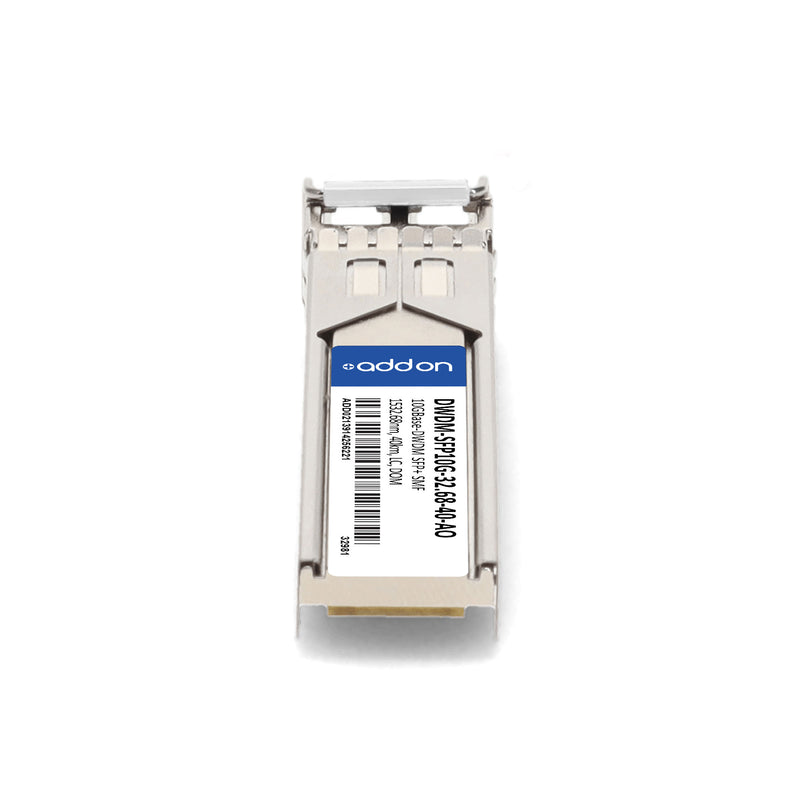

The AddOn Cisco® DWDM-SFP10G-32.68-40-AO is a high-performance 10GBase-DWDM SFP+ optical transceiver designed for demanding data center, metro, and enterprise network environments. Operating on the ITU-T C-band channel grid with a 100 GHz spacing, this module delivers 10 Gbps data rates over single-mode fiber (SMF) at a wavelength of 1532.68 nm, supporting distances of up to 40 km.
Engineered with a temperature-stabilized EML transmitter and PIN receiver, it ensures superior signal integrity and consistent performance. The transceiver features a standard duplex LC connector and hot-pluggable SFP+ form factor for seamless deployment and scalability. It supports Digital Optical Monitoring (DOM) for real-time diagnostics, providing insights into key parameters such as optical power, temperature, and voltage.
Compliant with SFF-8432 and SFF-8472 standards, RoHS, and TAA regulations, this transceiver guarantees full interoperability with Cisco® equipment and meets stringent quality requirements. Each unit undergoes rigorous testing, serialization, and validation to ensure flawless operation and long-term reliability. With its compact design, excellent ESD protection, and low EMI shielding, the DWDM-SFP10G-32.68-40-AO is an ideal solution for high-capacity backbone links, wavelength-division multiplexing systems, and carrier-grade optical transport networks.
| Parameter | Details |
|---|---|
| Brand | AddOn Networks |
| SKU | DWDM-SFP10G-32.68-40-AO |
| Compatibility | Cisco® DWDM-SFP10G-32.68 |
| Form Factor | SFP+ |
| Data Rate | 10.3125 Gbps |
| Transmission Distance | Up to 40 km |
| Wavelength | 1532.68 nm (100 GHz ITU-T Channel 56, C-Band) |
| Connector Type | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Transmitter Type | EML (Electro-absorption Modulated Laser) |
| Receiver Type | PIN |
| Digital Diagnostics (DOM) | Supported |
| Operating Temperature | 0 °C to +70 °C |
| Launch Optical Power | -1 dBm to +4 dBm |
| Receiver Sensitivity | ≤ -15 dBm |
| Receiver Overload | ≥ -1 dBm |
| Extinction Ratio | ≥ 8.2 dB |
| Power Dissipation | ≤ 1.5 W |
| Supply Voltage | 3.135 V – 3.465 V |
| Compliance | SFF-8432, SFF-8472, IEEE 802.3ae 10GBASE-ER, RoHS, TAA |
| Hot-Pluggable | Yes |
| Applications | 10G DWDM links, Metro/Access networks, 8G/10G Fibre Channel, WDM transport |
| Warranty | Limited Lifetime Warranty |
