Description

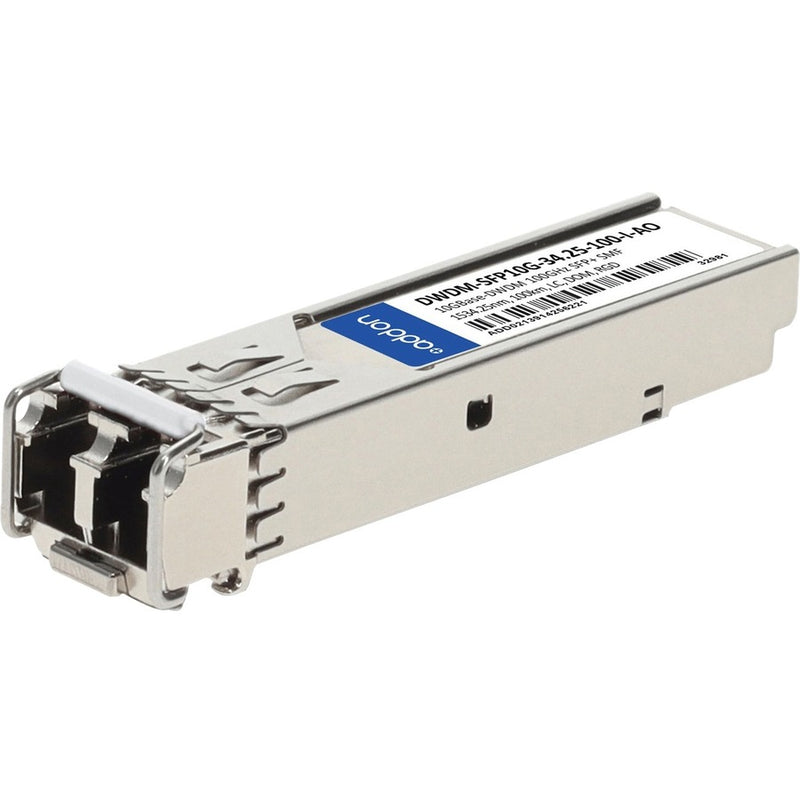

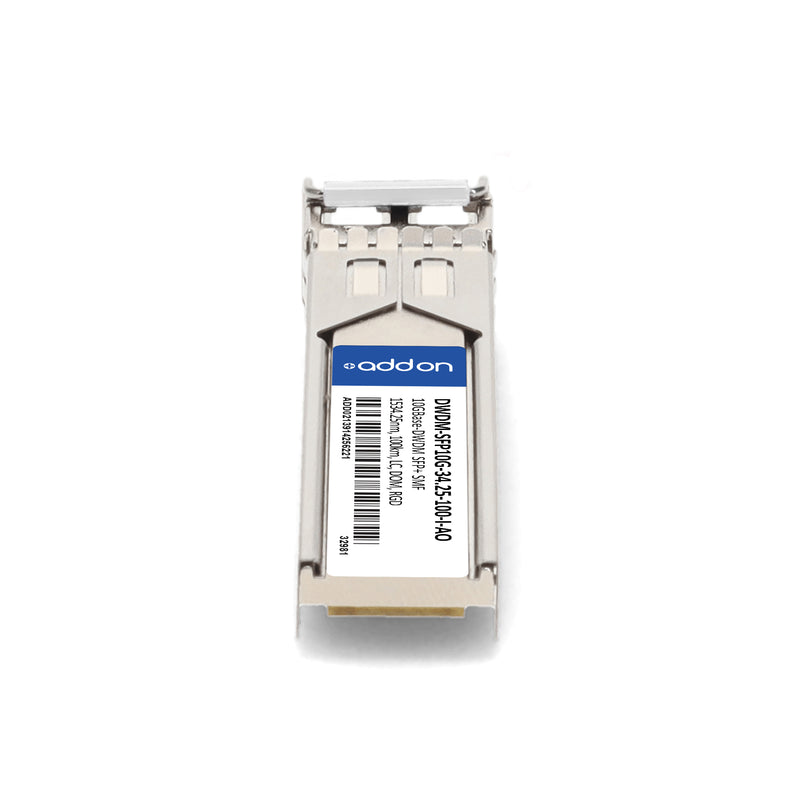

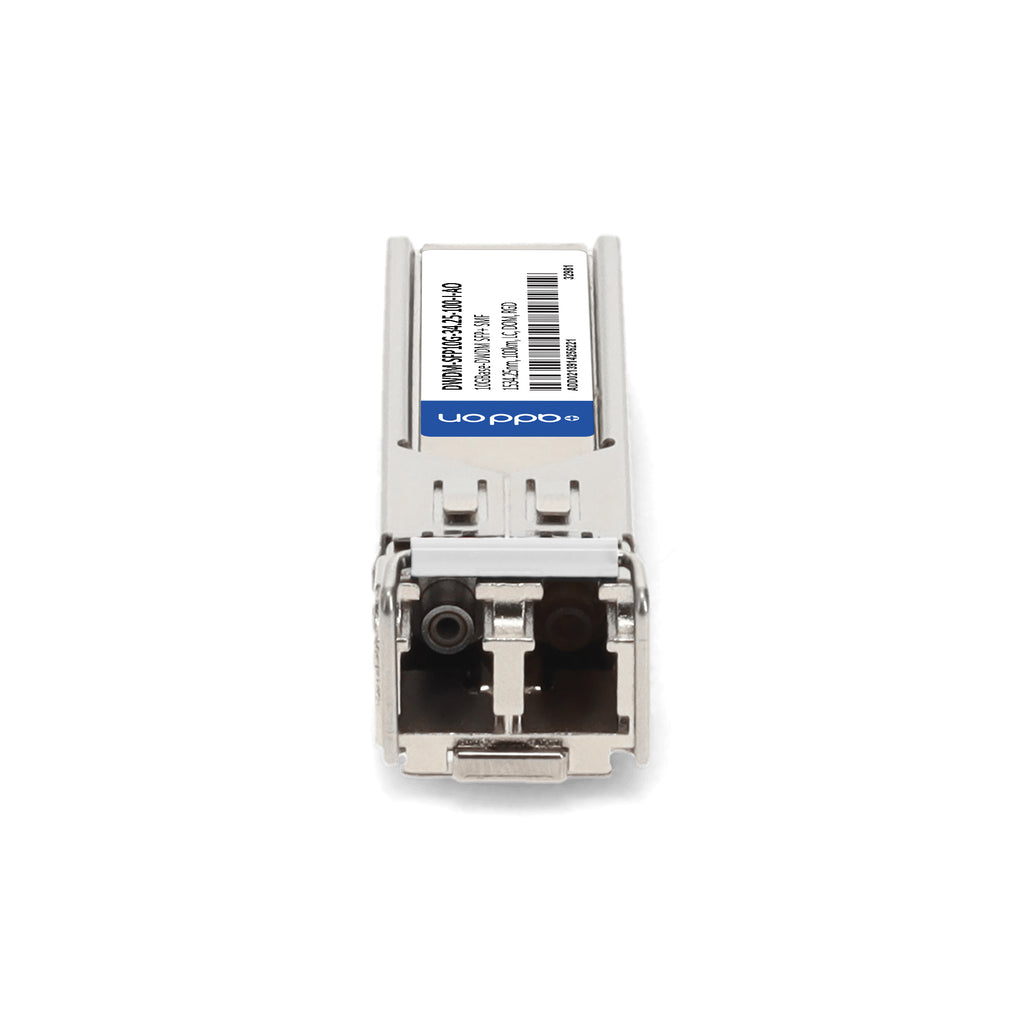

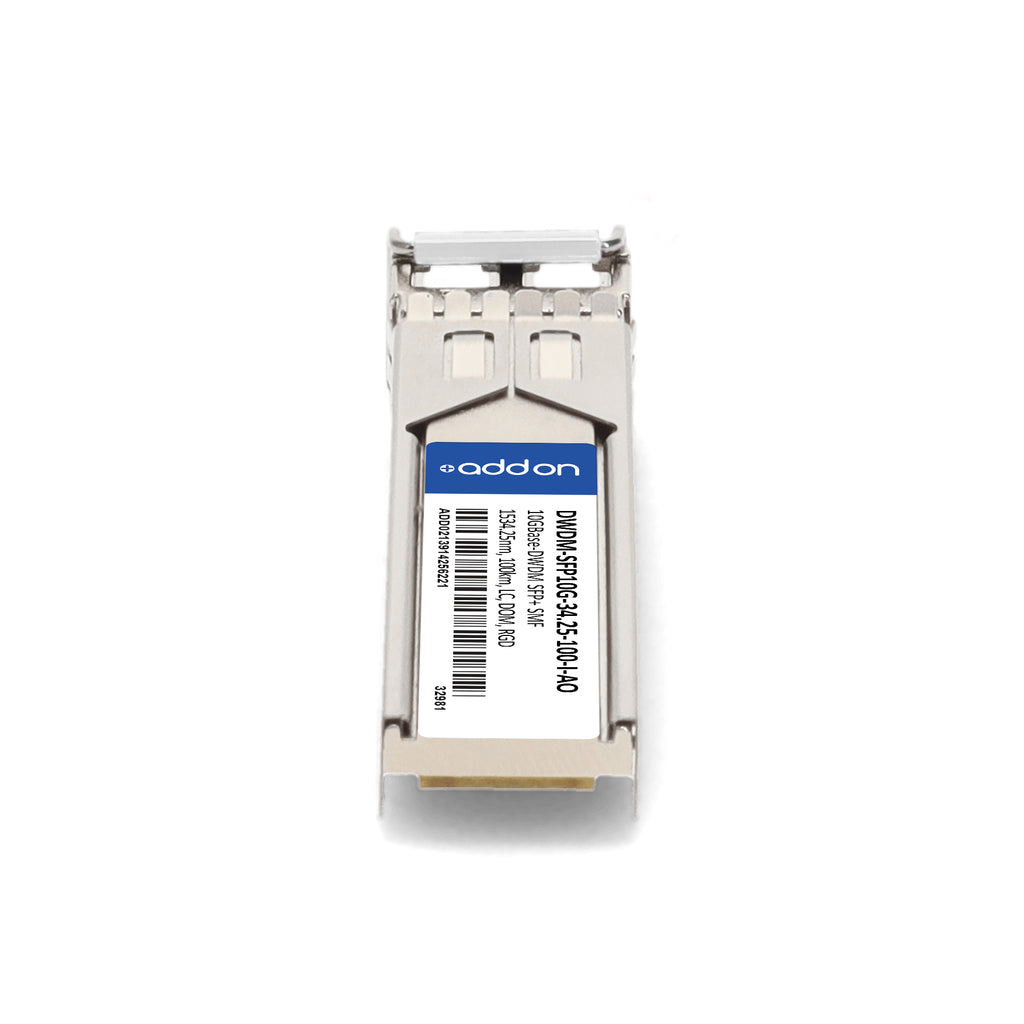

The AddOn Cisco® DWDM-SFP10G-34.25-100-I Compatible SFP+ Transceiver is a high-performance, hot-swappable optical module designed for 10GBase-DWDM applications over single-mode fiber (SMF) up to 100km. Operating at a 1534.25nm center wavelength within the C-Band 100GHz grid, this transceiver delivers reliable, high-capacity data transmission for access, metro, and enterprise networks. It supports digital optical monitoring (DOM) for real-time diagnostics, ensuring consistent performance and network visibility. Built for demanding environments, it offers industrial-grade operation from -40°C to 85°C, RoHS compliance, excellent ESD protection, and a metal housing for reduced EMI. Fully compatible with Cisco® equipment, it’s a cost-effective, TAA-compliant solution backed by AddOn’s industry-leading quality and limited lifetime warranty.
Parameter | Specification |
---|---|
SKU | DWDM-SFP10G-34.25-100-I-AO |
Brand Compatibility | Cisco® |
Form Factor | SFP+ |
Data Rate | 10.3125 Gb/s |
Wavelength | 1534.25 nm (C-Band, 100GHz ITU Channel 54) |
Reach / Distance | Up to 100 km |
Fiber Type | Single-Mode Fiber (SMF) |
Connector Type | Duplex LC |
Digital Diagnostics (DOM) | Supported |
Operating Temperature | -40°C to +85°C (Industrial) |
Extinction Ratio | ≥ 9 dB |
Launch Optical Power | +1.0 to +4.0 dBm |
Receiver Sensitivity | ≤ -26 dBm |
Receiver Overload | ≥ -7 dBm |
Optical Return Loss Tolerance | ≥ 21 dB |
Compliance | SFF-8432, SFF-8472, RoHS, TAA |
Applications | 8G/10G Fibre Channel, 10G Ethernet over DWDM, Metro & Enterprise Networks |
Hot-Pluggable | Yes |
Warranty | Limited Lifetime Warranty |
