Description

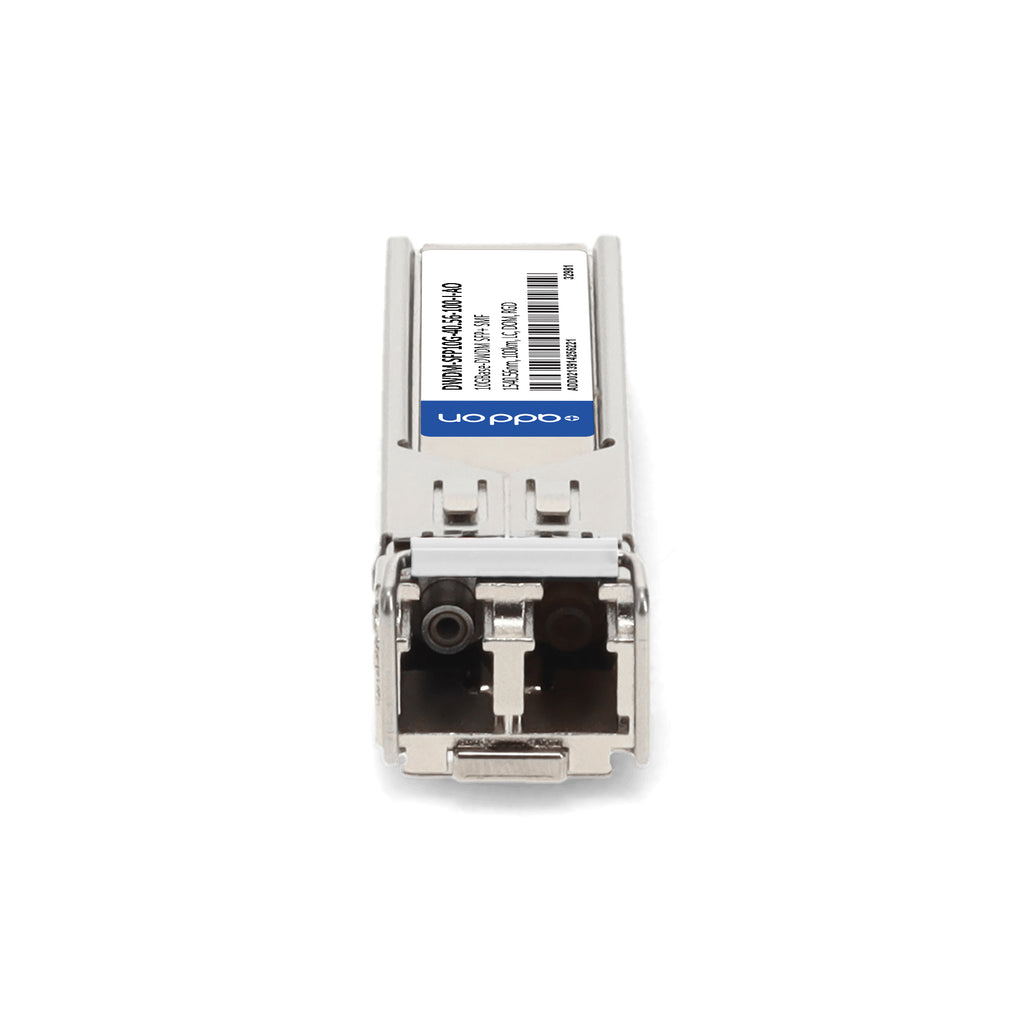

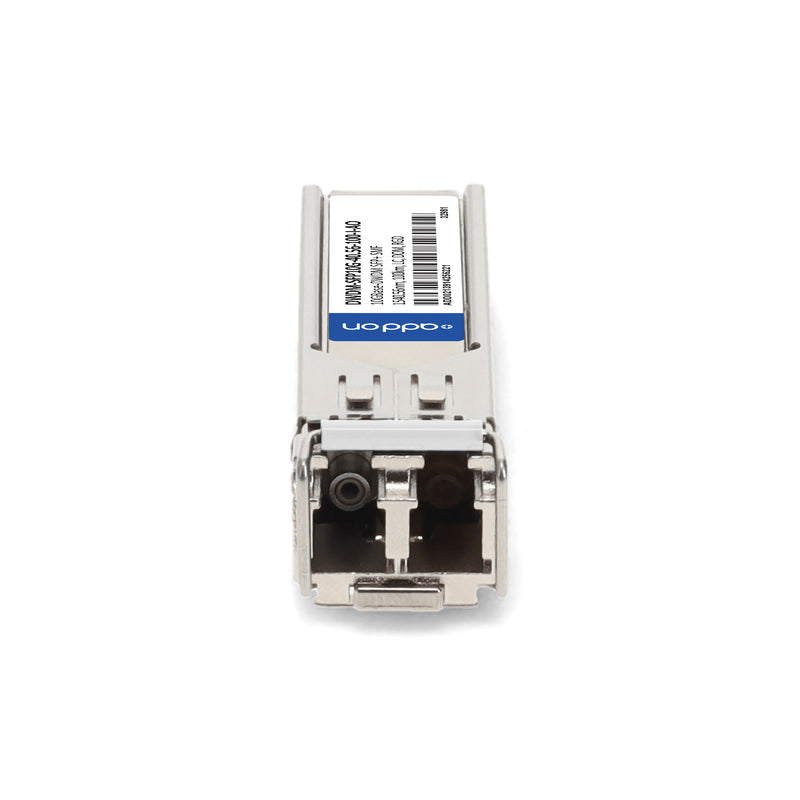

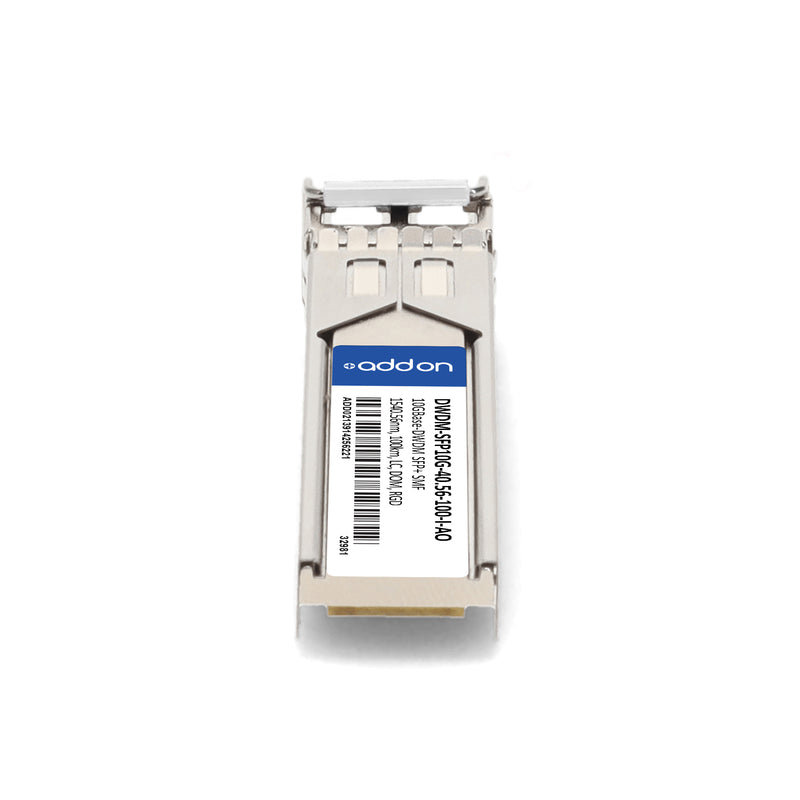

The AddOn Cisco® DWDM-SFP10G-40.56-100-I Compatible SFP+ Transceiver delivers reliable 10GBase-DWDM performance for long-haul optical networking applications. Designed for use over single-mode fiber (SMF), this transceiver supports data rates up to 10.3125 Gbps and transmission distances up to 100 km, using a wavelength of 1540.56 nm within the C-Band 100 GHz ITU grid.
Engineered for seamless compatibility with Cisco® equipment, each unit is hot-pluggable, uniquely serialized, and rigorously tested for data integrity and performance. Built to withstand demanding environments, it operates over an extended industrial temperature range of -40 °C to 85 °C. Featuring Digital Optical Monitoring (DOM) for real-time diagnostics and TAA compliance, this transceiver is ideal for metro, access, and enterprise DWDM network deployments requiring high-capacity, long-distance transmission.
| Specification | Details |
|---|---|
| Part Number | DWDM-SFP10G-40.56-100-I-AO |
| Form Factor | SFP+ |
| Data Rate | 10.3125 Gbps |
| Application | 10GBase-DWDM, 8x/10x Fibre Channel, Metro/Access/Enterprise Networks |
| Wavelength | 1540.56 nm (C-Band, 100 GHz ITU Grid, Channel 46) |
| Transmission Distance | Up to 100 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Digital Diagnostics (DOM) | Supported |
| Temperature Range | -40 °C to 85 °C (Industrial) |
| Transmit Power | +1.0 dBm to +4.0 dBm |
| Receiver Sensitivity | ≤ -26 dBm |
| Receiver Overload | ≥ -7.0 dBm |
| Extinction Ratio | ≥ 9.0 dB |
| Side Mode Suppression Ratio | ≥ 30 dB |
| Optical Return Loss (Tx/Rx) | ≥ 21 dB / ≥ 27 dB |
| Dispersion Limited Distance | 100 km |
| Power Dissipation | ≤ 1.8 W |
| Compliance | SFF-8432, SFF-8472, IEEE 802.3, FDA 21CFR, EN60950-1, IEC 60825-1/2, RoHS, TAA |
| Hot-Pluggable | Yes |
| Warranty | Limited Lifetime Warranty |
