Description

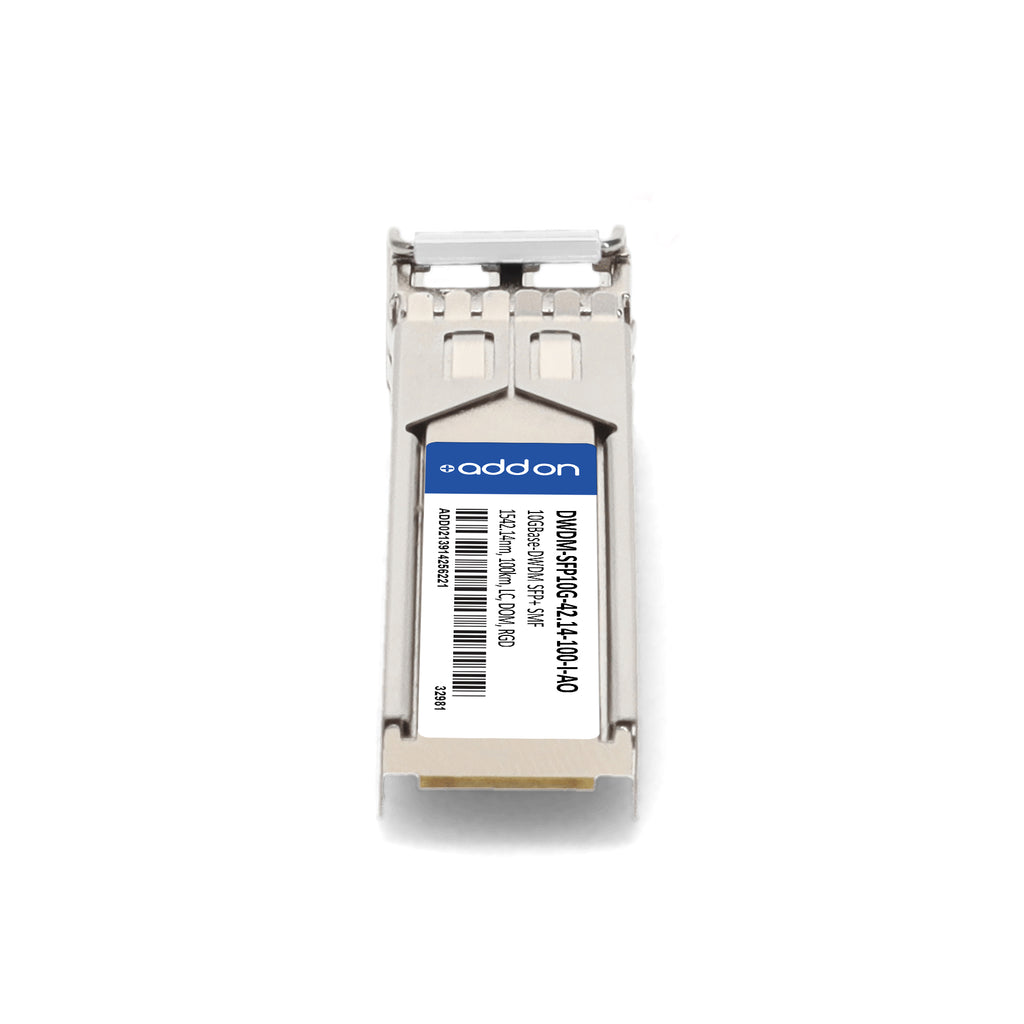

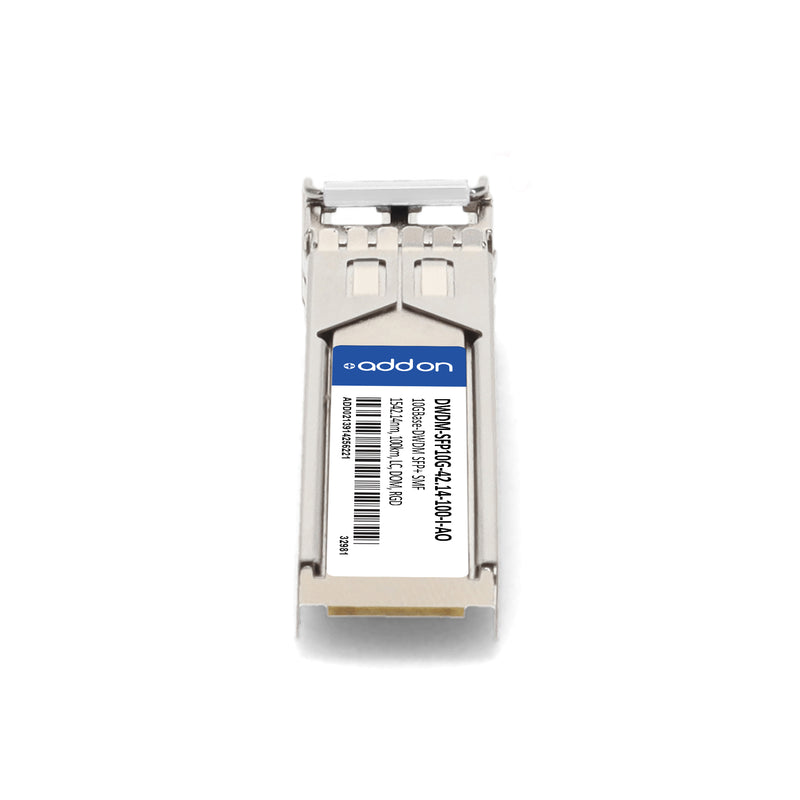

The AddOn Cisco® DWDM-SFP10G-42.14-100-I-AO is a high-performance, TAA-compliant 10GBase-DWDM SFP+ transceiver designed for long-distance optical networking applications. Engineered to deliver reliable 10Gbps data transmission over single-mode fiber (SMF) up to 100km, this transceiver operates at a 1542.14nm wavelength within the C-band 100GHz ITU grid. Featuring a duplex LC connector and supporting Digital Optical Monitoring (DOM), it ensures seamless integration, real-time diagnostics, and maximum network uptime.
Each unit is hot-pluggable, rigorously tested for 100% Cisco® compatibility, and ideal for access, metro, and enterprise DWDM network deployments. Built with industrial-grade components, it operates in extreme temperatures from -40°C to +85°C, ensuring consistent performance even in challenging environments.
| Specification | Details |
|---|---|
| Brand | AddOn |
| Model / SKU | DWDM-SFP10G-42.14-100-I-AO |
| Form Factor | SFP+ |
| Data Rate | 10.3125 Gbps |
| Wavelength | 1542.14 nm (C-Band, 100GHz ITU Grid, Channel 44) |
| Transmission Distance | Up to 100 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Optical Power (Tx) | +1.0 to +4.0 dBm |
| Receiver Sensitivity | ≤ -26 dBm |
| Receiver Overload | -7.0 dBm |
| Extinction Ratio | ≥ 9 dB |
| Side Mode Suppression Ratio (SMSR) | ≥ 30 dB |
| Spectral Width (-20dB) | ≤ 1 nm |
| Optical Return Loss Tolerance (Tx) | 21 dB |
| Optical Return Loss (Rx) | ≥ 27 dB |
| TDP (Transmitter and Dispersion Penalty) | ≤ 4.0 dB |
| Center Wavelength Range (Tx) | 1528.77 – 1550.22 nm |
| Center Wavelength Range (Rx) | 1528 – 1565 nm |
| Digital Diagnostics (DOM) | Supported |
| Hot Pluggable | Yes |
| Operating Temperature | -40°C to +85°C (Industrial) |
| Storage Temperature | -40°C to +85°C |
| Power Supply Voltage | 3.135 – 3.465 V |
| Power Dissipation | ≤ 1.8 W |
| Compliance | SFF-8432, SFF-8472, IEEE 802.3ae 10GBASE-ZR, RoHS, TAA |
| Applications | 10G Ethernet DWDM, 8x/10x Fibre Channel, Metro/Access/Enterprise Networks |
| Compatibility | 100% Cisco® Compatible |
