Description

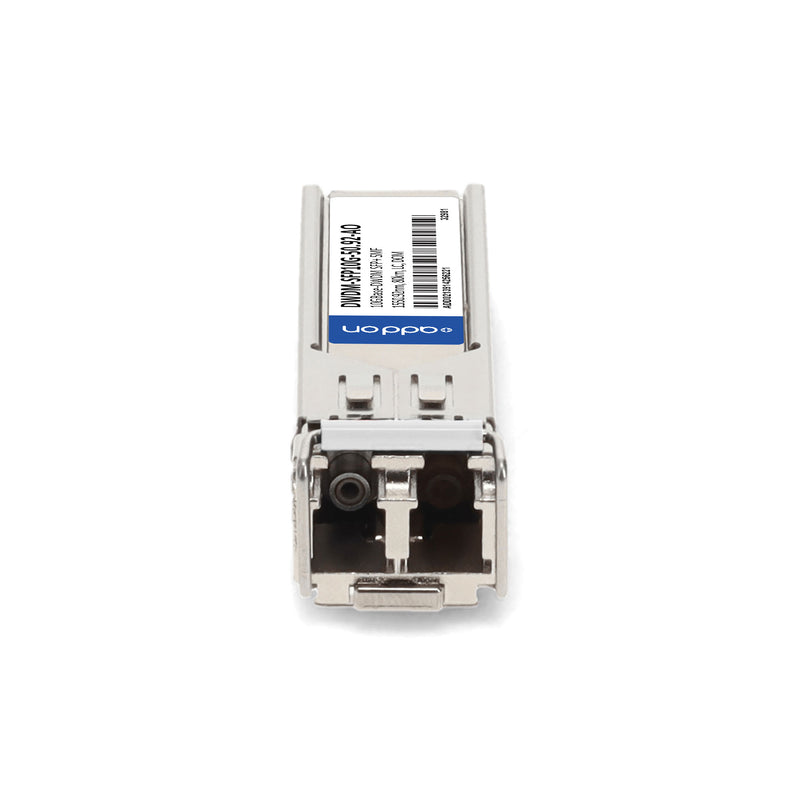

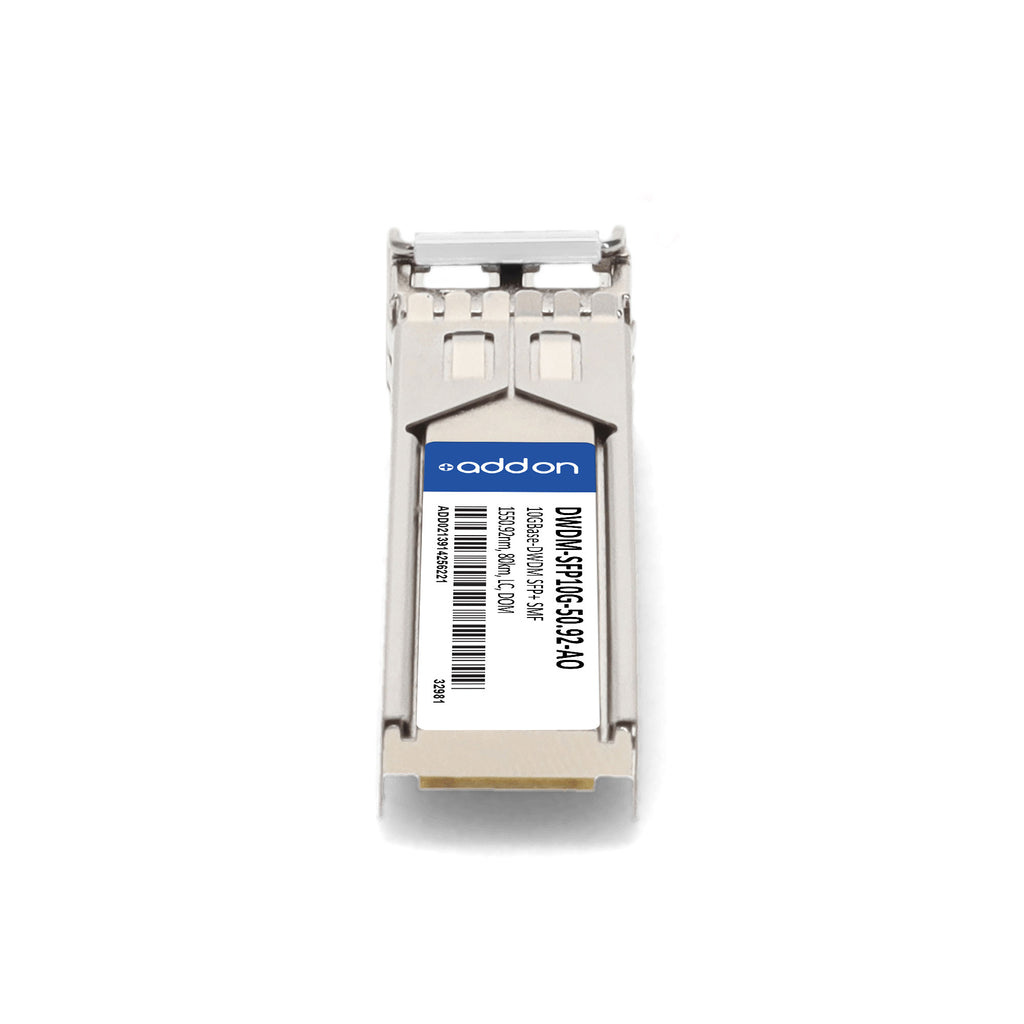

The AddOn DWDM-SFP10G-50.92-AO is a Cisco® compatible, TAA-compliant SFP+ transceiver designed for high-performance 10GBase-DWDM applications. Operating at a 1550.92nm wavelength over single-mode fiber (SMF), it supports distances up to 80km via a duplex LC connector.
Built with a temperature-stabilized EML transmitter and APD receiver, this transceiver offers exceptional stability and reliability. It is hot-pluggable, compliant with SFF-8432 and SFF-8472 standards, and features digital optical monitoring (DOM) for real-time diagnostics.
Each unit is uniquely serialized, programmed, and rigorously tested for seamless interoperability with Cisco® environments. Backed by AddOn’s limited lifetime warranty, it ensures a cost-effective, reliable, and fully compatible solution for DWDM networking needs.
| Specification | Details |
|---|---|
| SKU | DWDM-SFP10G-50.92-AO |
| Form Factor | SFP+ |
| Data Rate | 10GBase-DWDM (10.3125 Gbps) |
| Wavelength | 1550.92nm (C-Band, ITU Channel 33) |
| Distance / Reach | Up to 80 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Transmitter Type | Cooled EML (Electro-absorption Modulated Laser) |
| Receiver Type | APD (Avalanche Photodiode) |
| Optical Power Output | 0 to +4 dBm |
| Receiver Sensitivity | -24 dBm |
| Extinction Ratio | ≥ 9 dB |
| Digital Diagnostics (DOM) | Supported |
| Temperature Range | 0°C to +70°C (Commercial) |
| Compliance | SFF-8432, SFF-8472, RoHS, TAA |
| Power Consumption | ≤ 1.5W |
| Hot Pluggable | Yes |
| Warranty | Limited Lifetime |
| Compatibility | 100% Cisco® compatible |
