Description

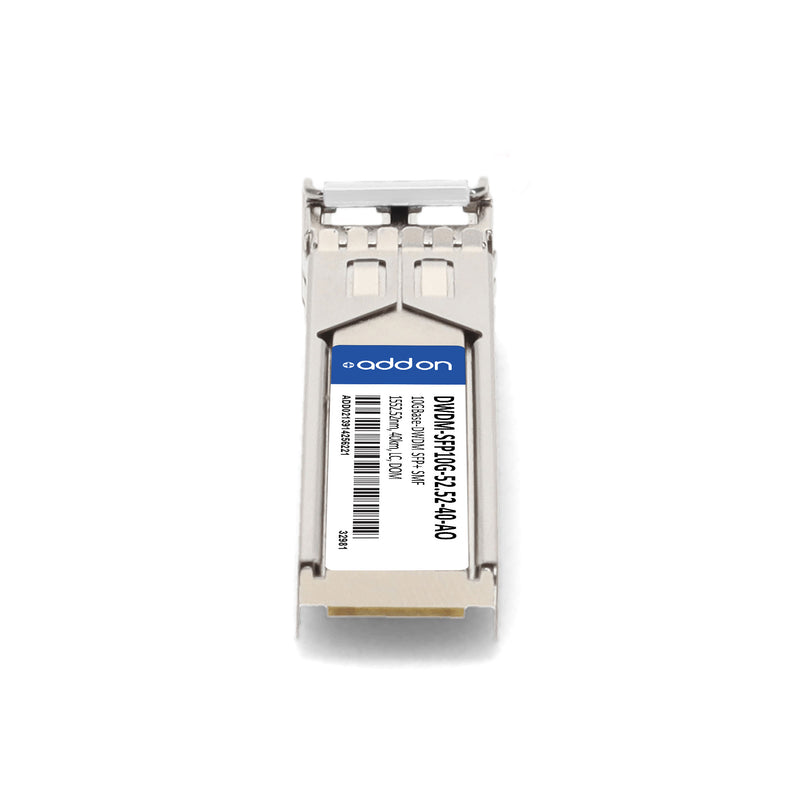

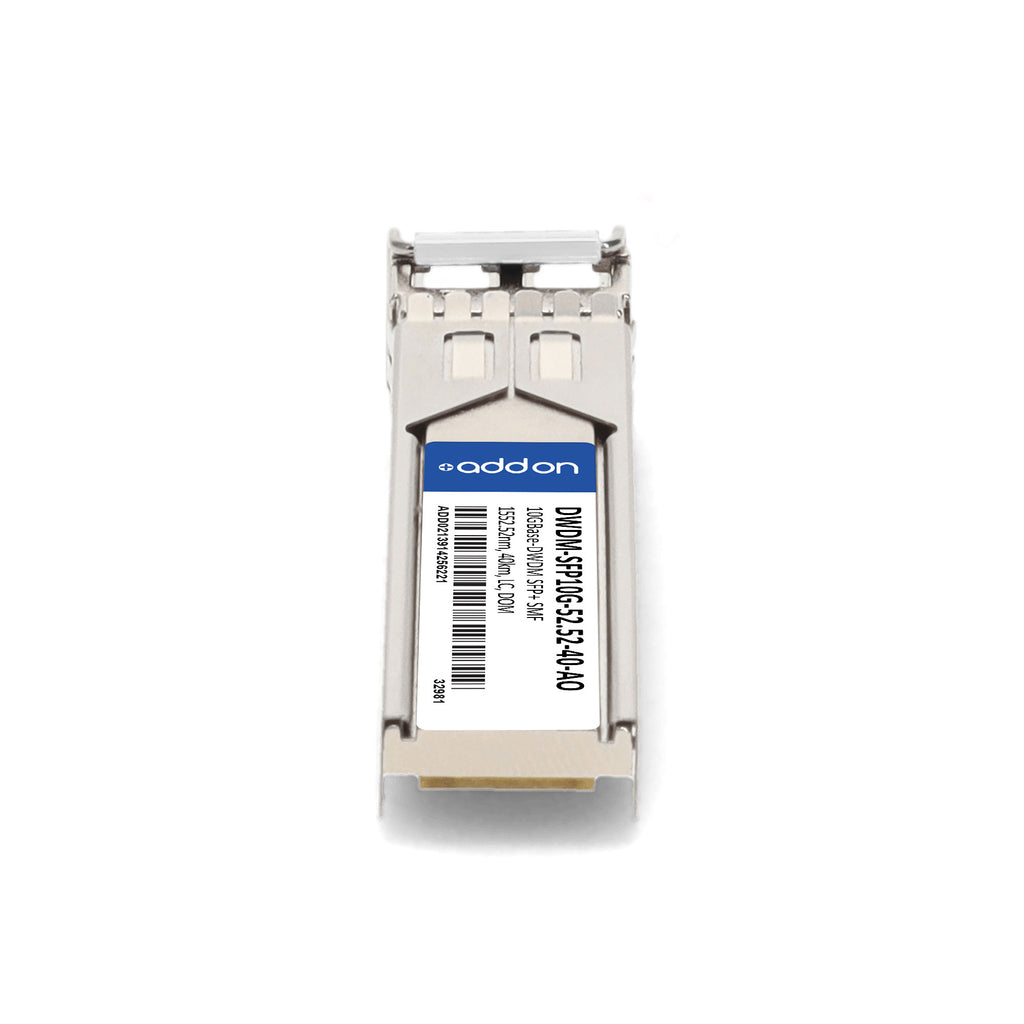

The AddOn Cisco® DWDM-SFP10G-52.52-AO is a 10GBase-DWDM SFP+ transceiver designed for high-performance optical networking over single-mode fiber. Operating at a wavelength of 1552.52nm with 100GHz channel spacing, this transceiver supports data transmission up to 40km via an LC duplex connector. It features a temperature-stabilized EML transmitter and PIN receiver, ensuring consistent signal integrity across access, metro, and enterprise networks.
Engineered for full interoperability, this module is guaranteed 100% compatible with the equivalent Cisco® transceiver. It supports Digital Optical Monitoring (DOM) for real-time parameter tracking and is hot-swappable for simplified deployment. With RoHS compliance, excellent ESD protection, and a limited lifetime warranty, it provides a reliable and cost-effective solution for demanding 10GbE and Fibre Channel applications.
| Specification | Details |
|---|---|
| Manufacturer | AddOn |
| SKU / Part Number | DWDM-SFP10G-52.52-40-AO |
| Compatible OEM | Cisco® |
| Form Factor | SFP+ |
| Data Rate | 10.3125 Gbps (10GBase-DWDM) |
| Wavelength | 1552.52nm (Channel 31, ITU-T Grid 100GHz) |
| Distance / Reach | Up to 40km over SMF |
| Connector Type | Duplex LC |
| Transmitter Type | Cooled EML (Externally Modulated Laser) |
| Receiver Type | PIN |
| DOM Support | Yes (Digital Optical Monitoring) |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Compliance Standards | SFF-8432, SFF-8472, RoHS, TAA |
| Power Dissipation | 1.5W max |
| Applications | 10GbE DWDM, 8G/10G Fibre Channel, Access, Metro, Enterprise Networks |
| Hot Swappable | Yes |
| Warranty | Limited Lifetime |
