Description

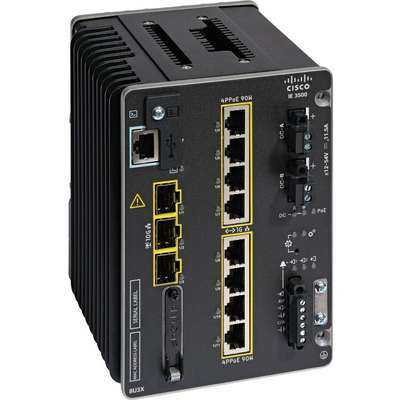

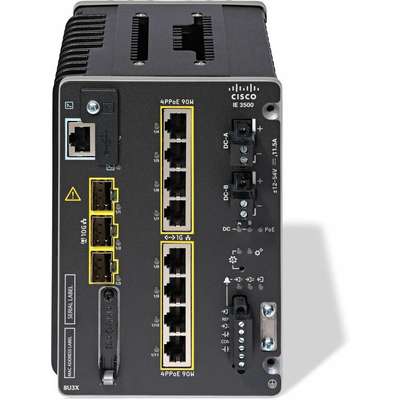

The Cisco IE-3500-8U3X-E is a rugged, modular Industrial Ethernet switch designed for high-performance operational technology (OT) and edge networking environments. Built to operate reliably in harsh industrial conditions, it combines advanced Layer 2 and Layer 3 capabilities with high-density Power over Ethernet and 10-Gigabit uplinks.
This model features eight PoE/PoE+/4PPoE copper ports capable of delivering up to 480W of total PoE power, making it ideal for powering cameras, sensors, controllers, and next-generation wireless access points. Three integrated 10G SFP+ uplink ports provide high-speed aggregation and edge-to-core connectivity for bandwidth-intensive industrial applications.
With a fanless, DIN-rail-mountable design and extended operating temperature support, the IE-3500-8U3X-E is well suited for manufacturing floors, transportation systems, utilities, substations, and smart infrastructure deployments. The Network Essentials license delivers robust security, resiliency, and management features required for modern industrial networks.
| Specification | Details |
|---|---|
| Manufacturer | Cisco |
| Product Series | IE 3500 Rugged Series |
| Model / SKU | IE-3500-8U3X-E |
| Switch Type | Industrial Ethernet Switch |
| Network License | Network Essentials |
| Total Ports | 11 |
| Downlink Ports | 8 × 10/100/1000 Ethernet (PoE / PoE+ / 4PPoE) |
| Uplink Ports | 3 × 10G SFP+ |
| PoE Standards | IEEE 802.3af / 802.3at / 802.3bt (Type 4) |
| Maximum PoE Budget | 480 W |
| Switching Features | Layer 2 and Layer 3 switching |
| Redundancy Protocols | REP, MRP, DLR support |
| Management Options | Web UI, CLI, Catalyst Center |
| Mounting | DIN Rail |
| Cooling | Fanless, convection cooled |
| Operating Temperature | Industrial extended temperature range |
| Power Input | Dual DC power inputs |
| Form Factor | Modular base switch with expansion support |
| Intended Use | Industrial automation, utilities, transportation, edge networks |
