Description

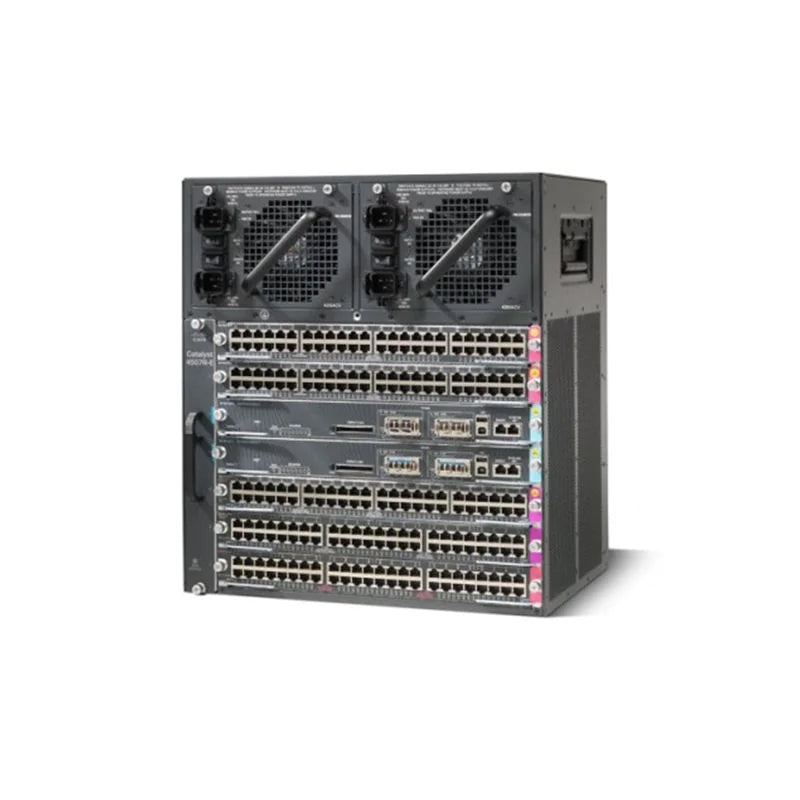

The Cisco C1-C4507R+E is an enterprise-grade modular switch chassis designed for scalable campus core and aggregation deployments. Built on the Catalyst 4500 E-Series platform, this 7-slot chassis delivers high availability, flexible expansion, and robust Layer 2 through Layer 4 switching and routing for demanding enterprise networks.
Engineered to support up to 48 Gbps per slot with Supervisor Engines 7-E or 8-E, the C1-C4507R+E provides the performance headroom required for converged voice, video, wireless, and IoT workloads. Its modular architecture supports up to 244 ports depending on line card selection, enabling organizations to scale network capacity without replacing the core chassis.
The platform supports redundant supervisor engines and power supplies for nonstop operation, along with advanced features such as SSO and NSF to maximize uptime. With UPoE-ready power capabilities when paired with compatible power supplies, the C1-C4507R+E is well suited for power-intensive campus environments, including wireless access points, IP cameras, and unified communications.
Delivered as a base chassis with fan tray and no power supply included, the C1-C4507R+E allows IT teams and integrators to tailor power, supervisors, and line cards to precise deployment requirements—making it a flexible and future-ready foundation for enterprise campus networks.
| Specification | Details |
|---|---|
| Model | C1-C4507R+E (WS-C4507R+E) |
| Brand | Cisco |
| Series | Catalyst 4500 E-Series |
| Form Factor | Modular switch chassis |
| Rack Units | 11RU |
| Chassis Slots | 7 total |
| Supervisor Engine Slots | 2 (Slots 3 & 4) |
| Line Card Slots | 5 (Slots 1–2, 5–7) |
| Switching Capacity | Up to 48 Gbps per slot |
| Forwarding Rate | Up to 250 Mpps |
| Maximum Port Density | Up to 244 ports (line card dependent) |
| Layer Support | Layer 2–Layer 4 switching and routing |
| VLAN Support | Up to 4,096 VLANs |
| Supervisor Redundancy | 1+1 redundancy with SSO / NSF |
| Power Supply Redundancy | 1+1 (power supplies sold separately) |
| PoE / UPoE Support | Yes (with compatible power supplies) |
| Maximum PoE per Slot | Up to 1500W |
| Fan System | Hot-swappable fan tray |
| Power Supplies Included | No |
| Dimensions (H × W × D) | 19.19 × 17.31 × 12.50 in |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Certifications | NEBS Level 3, FCC, CE, UL 60950 |
