Description

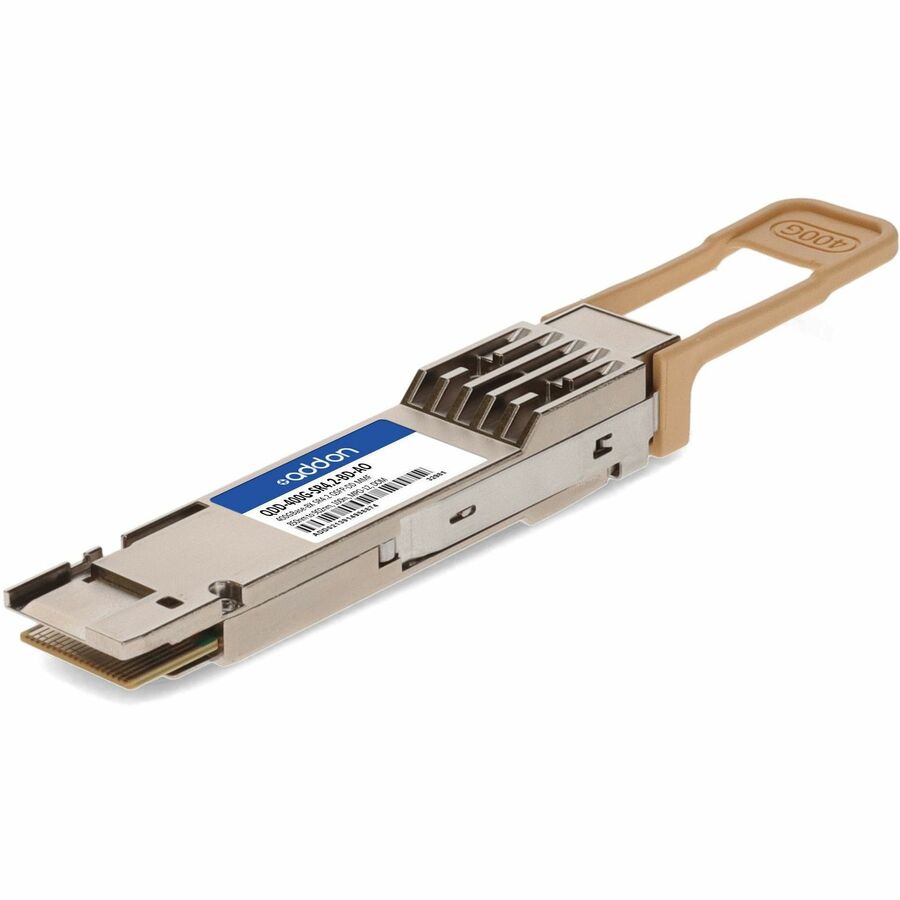

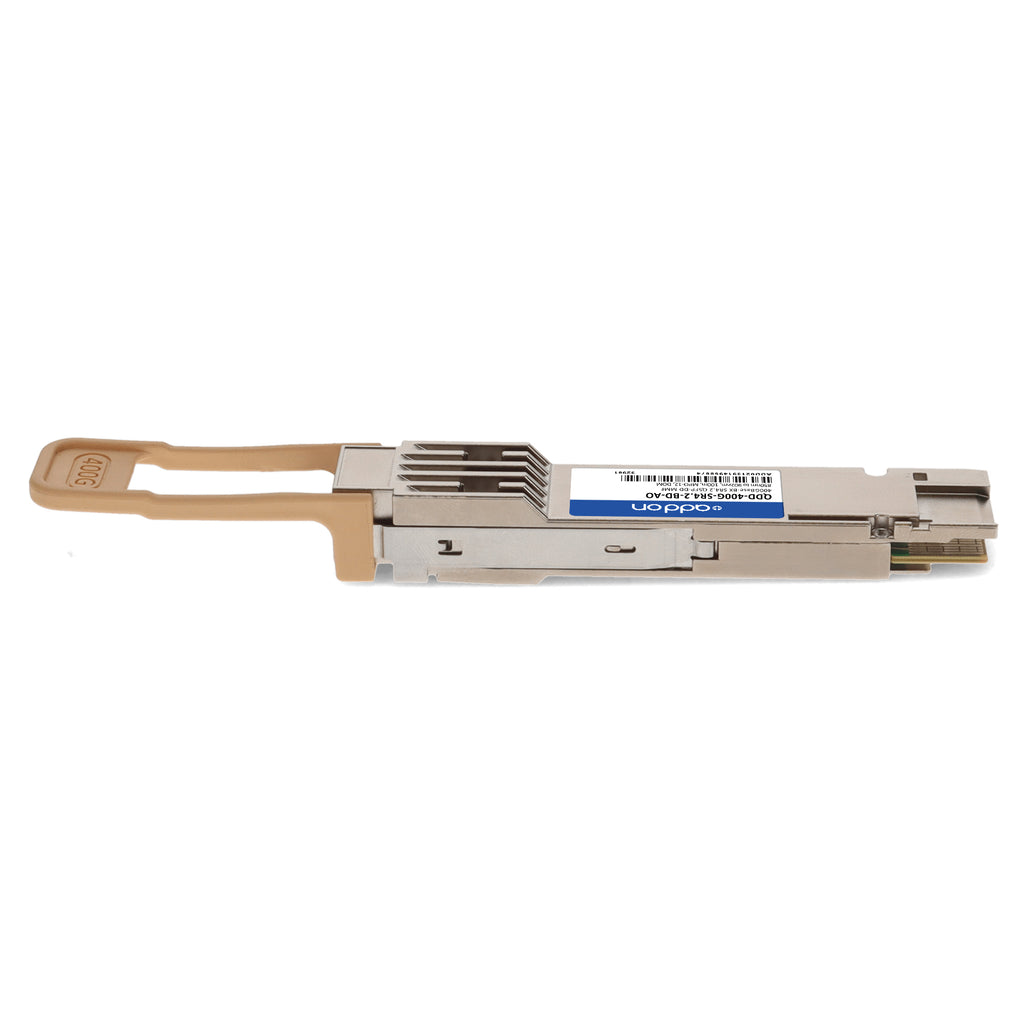

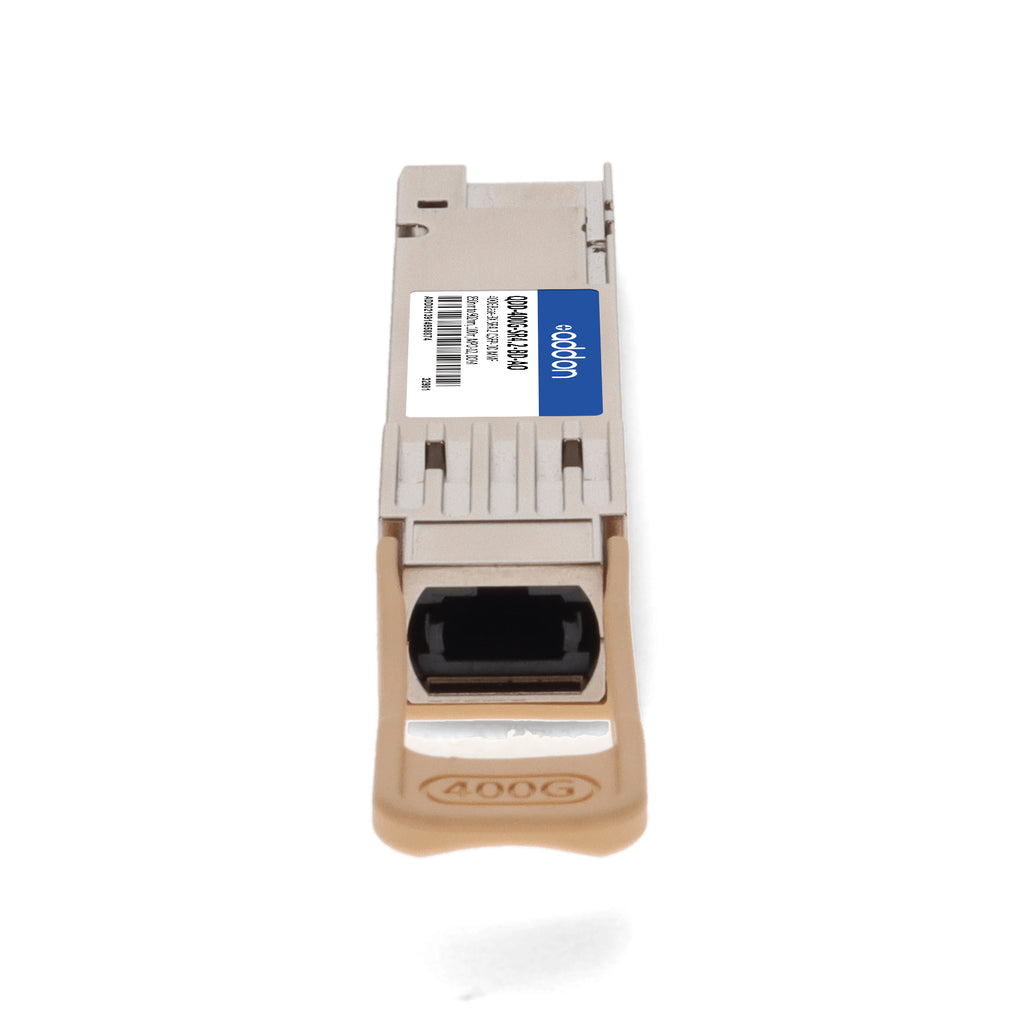

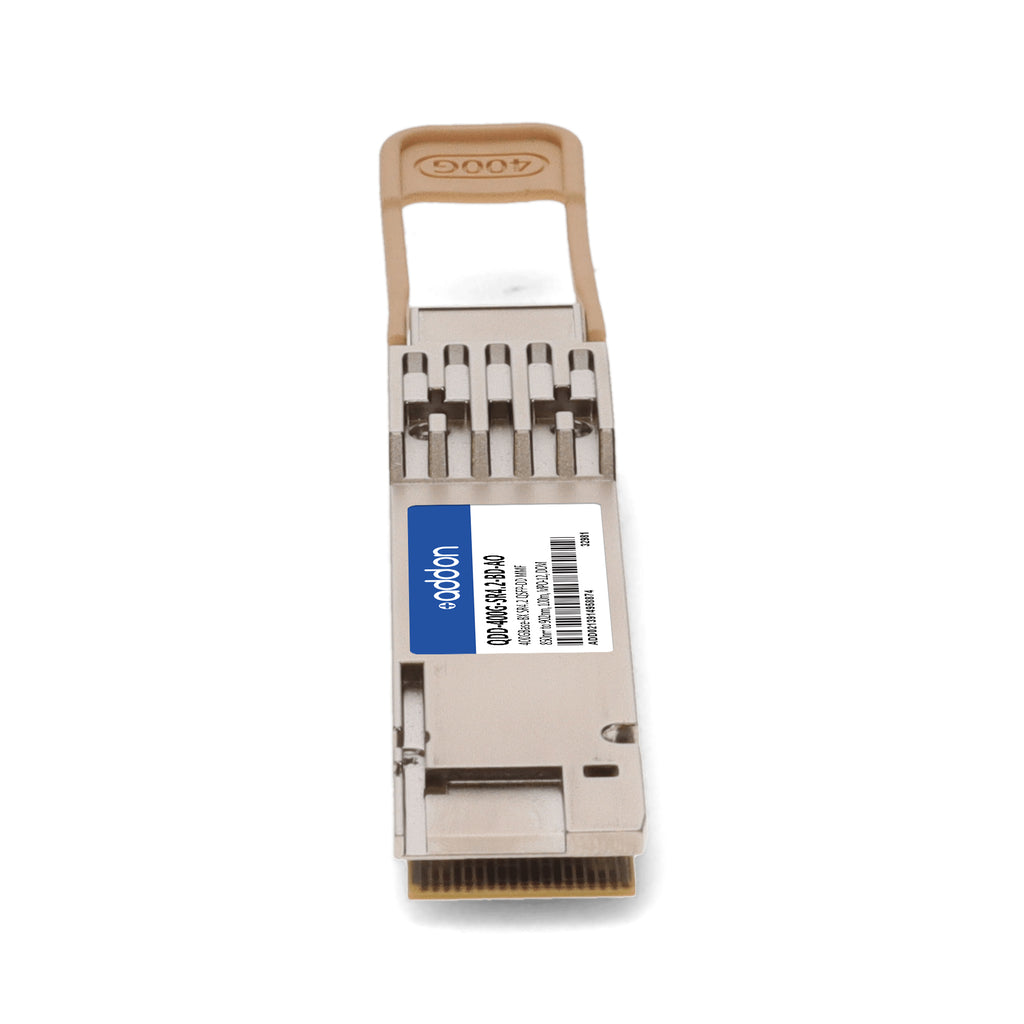

The AddOn Cisco® QDD-400G-SR4.2-BD-AO is a high-performance QSFP-DD transceiver that delivers 400GBase-BX SR4.2 PAM4 throughput over multi-mode fiber (MMF) for distances up to 100 m. Operating across wavelengths from 850 nm to 902 nm, this transceiver uses VCSEL and PD array technology and features an MPO-12 connector for seamless high-density connectivity.
Engineered to meet or exceed OEM standards, it is 100% compatible with Cisco® equipment and is fully hot-pluggable for simple installation. Support for Digital Optical Monitoring (DOM) allows real-time diagnostics of key parameters, while CMIS 4.0 compliance ensures interoperability in modern high-speed data center, enterprise, and access network environments. This module also supports 4×100G breakout functionality, making it an ideal choice for scalable, high-bandwidth architectures. Built to the highest quality standards, it is RoHS compliant, lead-free, TAA compliant, and backed by AddOn’s limited lifetime warranty.
| Specification | Details |
|---|---|
| SKU | QDD-400G-SR4.2-BD-AO |
| Form Factor | QSFP-DD |
| Data Rate | 400 Gbps |
| Application | 400GBase-BX SR4.2 PAM4 |
| Wavelength Range | 850 nm – 902 nm |
| Interface | MPO-12 |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Max Distance | 100 m |
| Breakout Support | 4×100G breakout |
| Connector Type | MPO-12 |
| Compliance | CMIS V4.0, MSA Compliant |
| DOM Support | Yes |
| Operating Temperature | 0 °C to 70 °C (Commercial) |
| Power Consumption | 11 W (typical) |
| Supply Voltage | 3.14 V – 3.46 V |
| Average Launch Power per Lane | -6.5 dBm to 4 dBm |
| Receiver Sensitivity (OMAouter) | ≤ –6.6 dBm |
| Extinction Ratio | ≥ 3 dB |
| Hot Pluggable | Yes |
| ESD Protection | Excellent |
| Compliance Standards | TAA, RoHS, Lead-Free |
| Warranty | Limited Lifetime Warranty |
