Description

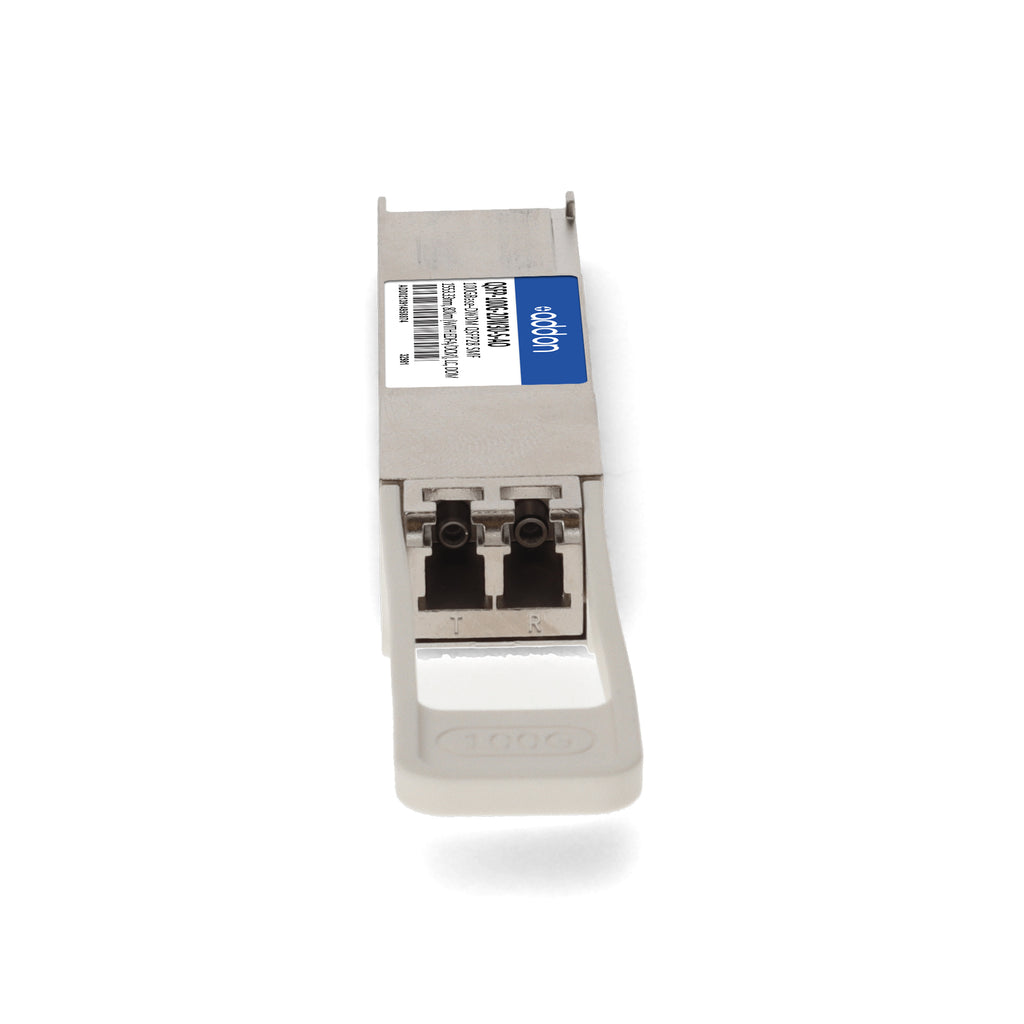

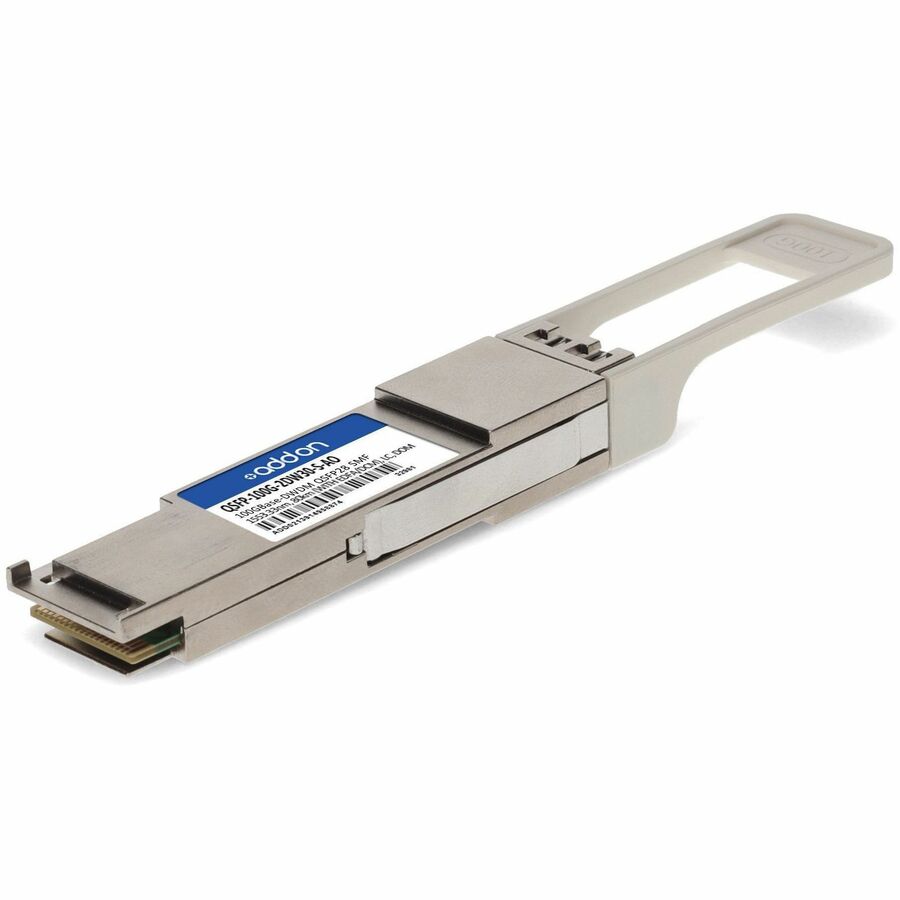

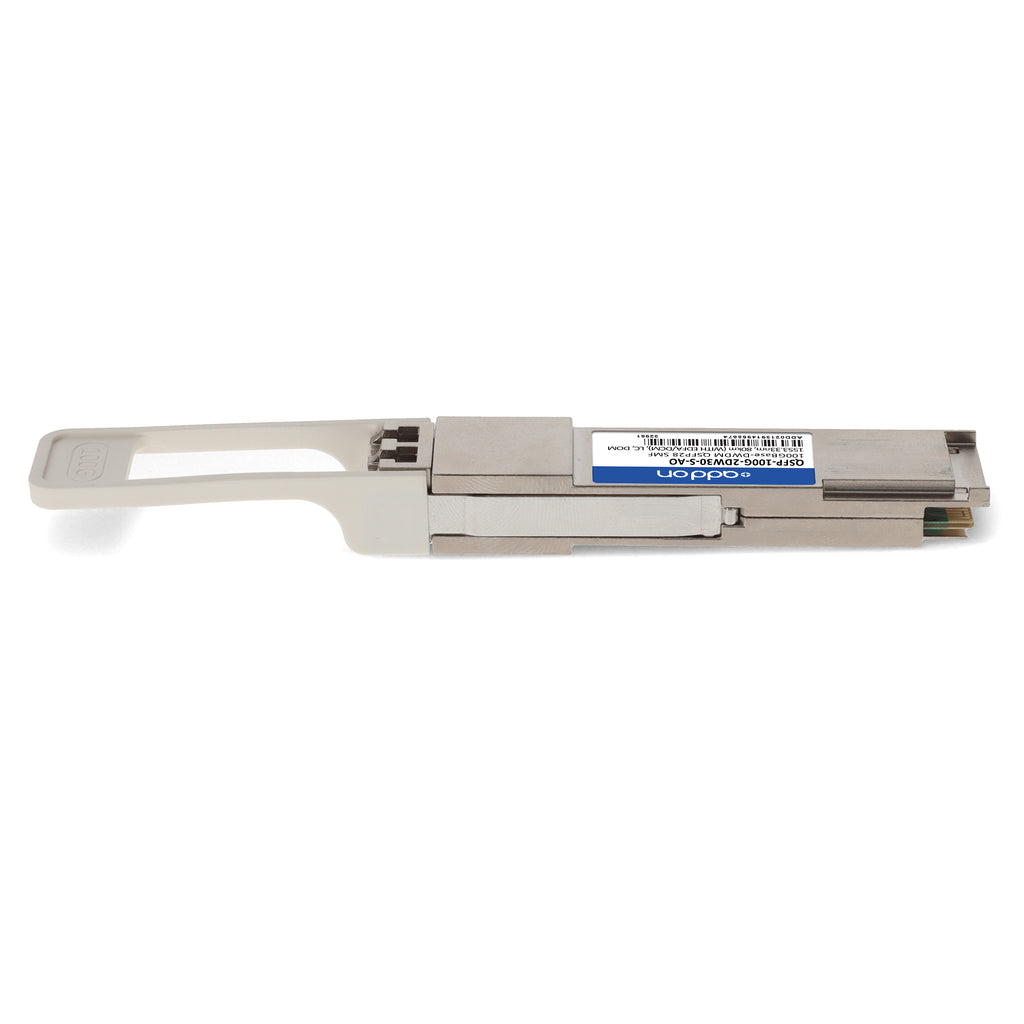

The AddOn Cisco® QSFP-100G-2DW30-S Compatible QSFP28 Transceiver delivers reliable 100GBase-DWDM performance over single-mode fiber (SMF) with reach up to 80 km using an LC duplex connector. Operating on the C-Band ITU Channel DW30 (1553.33 nm) with PAM4 modulation, this hot-swappable transceiver is designed for seamless integration into Cisco® networking environments, ensuring 100% compatibility with the OEM counterpart. It supports Digital Optical Monitoring (DOM) for real-time performance diagnostics and is ideal for access, metro, and enterprise network deployments.
Engineered for demanding DWDM transport applications, this module is TAA compliant, RoHS 2.0 certified, and features robust ESD/EMI protection, excellent signal integrity, and a commercial operating temperature range of 20 °C to 70 °C. Each unit is programmed, serialized, and tested for guaranteed performance and reliability.
| Specification | Details |
|---|---|
| Brand | AddOn |
| SKU | QSFP-100G-2DW30-S-AO |
| Compatibility | Cisco® QSFP-100G-2DW30-S |
| Form Factor | QSFP28 |
| Data Rate | 100 Gbps |
| Transmission Standard | 100GBase-DWDM PAM4 |
| Wavelength / Channel | 1553.33 nm (C-Band, DW30, ITU-T Grid 100 GHz) |
| Transmission Distance | Up to 80 km (with EDFA/DCM) |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Optical Modulation | PAM4 |
| Optical Extinction Ratio | ≥ 6 dB |
| Transmit Power (per lane) | –11 dBm to –8 dBm |
| Receiver Sensitivity | ≤ –2.5 dBm |
| Receiver Damage Threshold | +10 dBm |
| Side-Mode Suppression Ratio (SMSR) | ≥ 30 dB |
| Channel Spacing | 100 GHz |
| Digital Diagnostics (DOM) | Supported |
| Power Supply Voltage | 3.135 V – 3.465 V |
| Power Dissipation | 4 – 5 W |
| Operating Temperature | 20 °C – 70 °C (Commercial) |
| Compliance Standards | SFF-8665, IEC 61000-4-3, FCC Part 15, EN55022:2010, FDA 21CFR, EN60950-1, IEC 60825-1/2 |
| TAA Compliance | Yes |
| Hot-Swappable | Yes |
| RoHS Compliance | Yes |
| Applications | 100G Ethernet, Access, Metro, and Enterprise Networks |
