Description

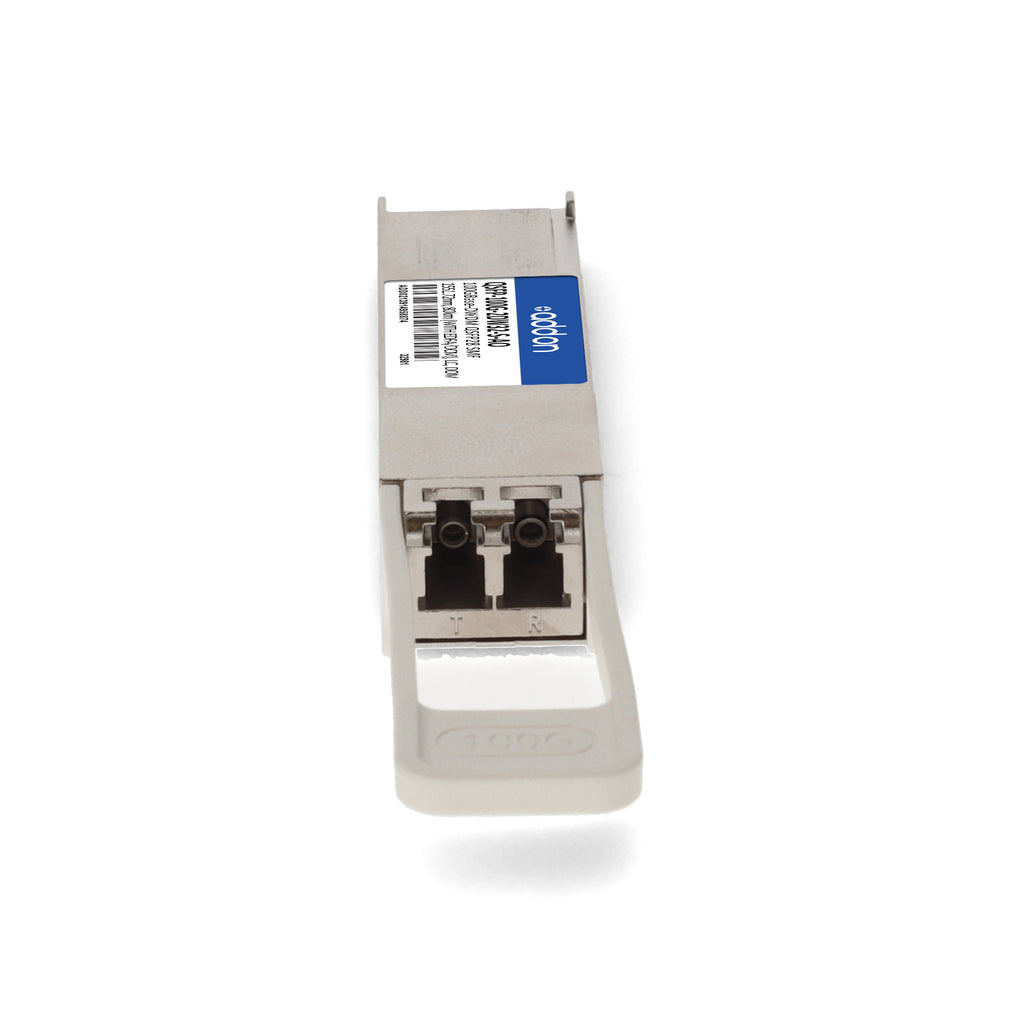

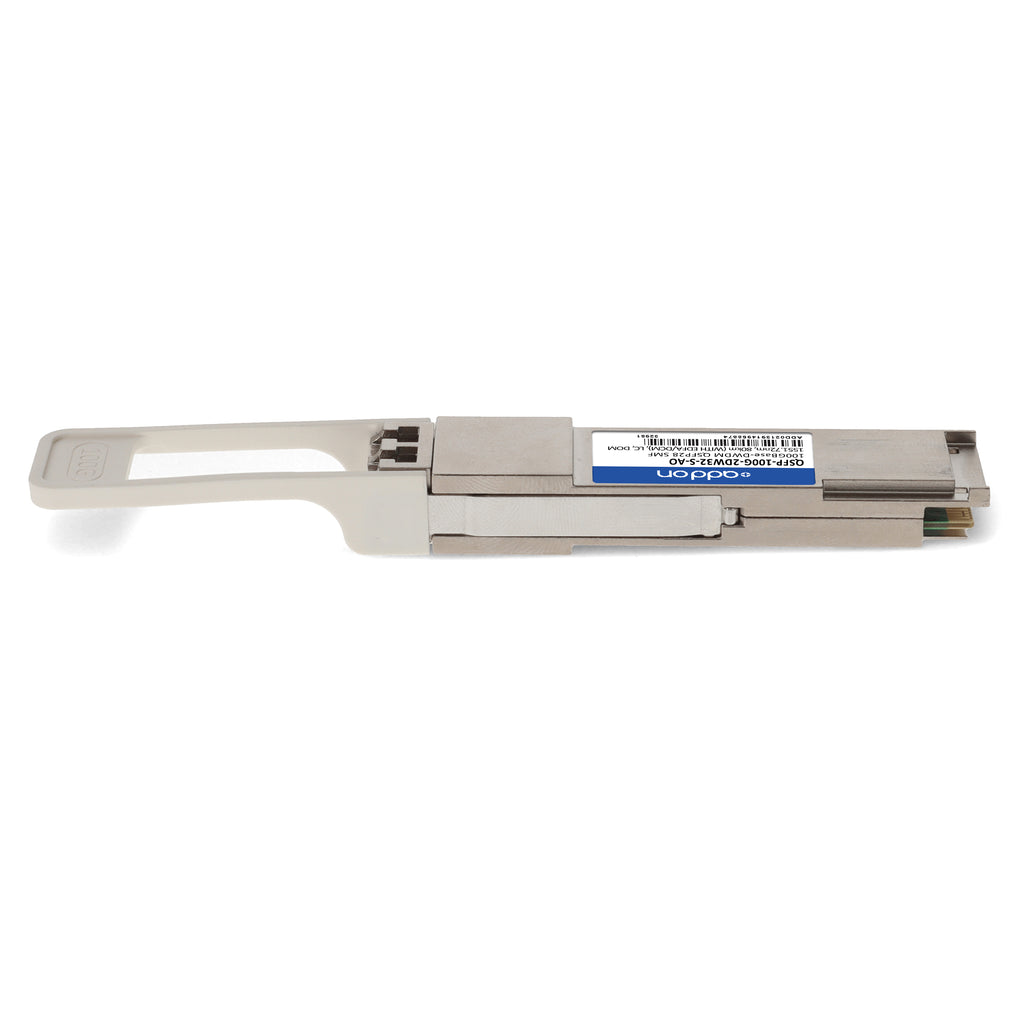

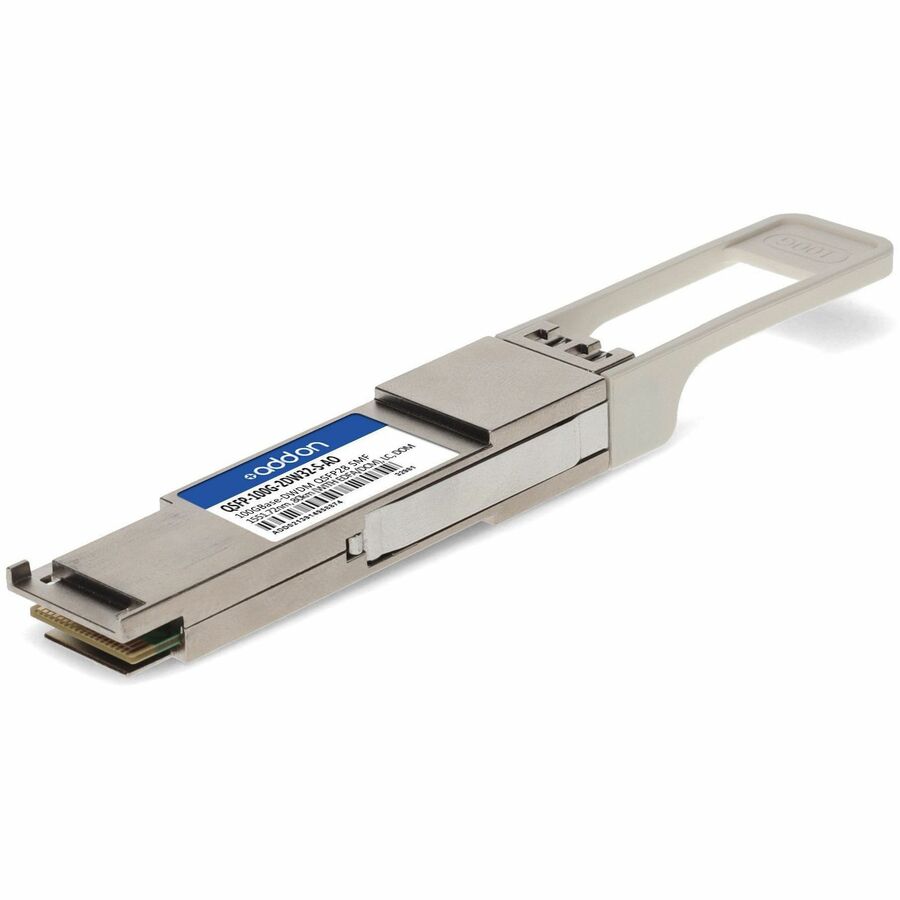

The AddOn Cisco® QSFP-100G-2DW32-S Compatible QSFP28 transceiver delivers high-performance 100GBase-DWDM connectivity over single-mode fiber (SMF) at distances up to 80 km, operating on the C-Band ITU Channel DW32 (1551.72 nm). Designed for seamless interoperability, it ensures 100% compatibility with the original Cisco® module and supports hot-swappable installation for minimal network downtime. Featuring PAM4 modulation, Digital Optical Monitoring (DOM), and a duplex LC connector, this transceiver is ideal for data center interconnects, metro, access, and enterprise networking applications. Built with excellent ESD protection, low EMI metal housing, and compliance with SFF-8665, it meets the stringent requirements of modern optical networks. TAA compliant and backed by AddOn’s limited lifetime warranty, this module provides reliable, cost-effective optical performance.
| Parameter | Specification |
|---|---|
| Brand | AddOn |
| Model/SKU | QSFP-100G-2DW32-S-AO |
| Form Factor | QSFP28 |
| Data Rate | 100 Gbps |
| Reach / Distance | Up to 80 km (with EDFA/DCM) |
| Wavelength | 1551.72 nm (C-Band ITU Channel DW32) |
| Optical Modulation | PAM4 |
| Connector Type | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Channel Spacing | 100 GHz DWDM ITU Grid |
| Optical Transmit Power | -11 dBm to -8 dBm |
| Receiver Sensitivity | ≤ -2 dBm |
| Extinction Ratio | ≥ 6 dB |
| Side-Mode Suppression Ratio (SMSR) | ≥ 30 dB |
| Digital Optical Monitoring (DOM) | Supported |
| Hot Swappable | Yes |
| Operating Temperature | 20 °C to 70 °C |
| Power Supply Voltage | 3.135 V – 3.465 V |
| Power Dissipation | ≤ 5 W |
| Compliance | SFF-8665, RoHS, TAA, FCC Part 15, EN55022:2010, IEC 60825-1/2 |
| Applications | 100G Ethernet, Metro, Access, Enterprise Networks |
| Warranty | Limited Lifetime Warranty |
