Description

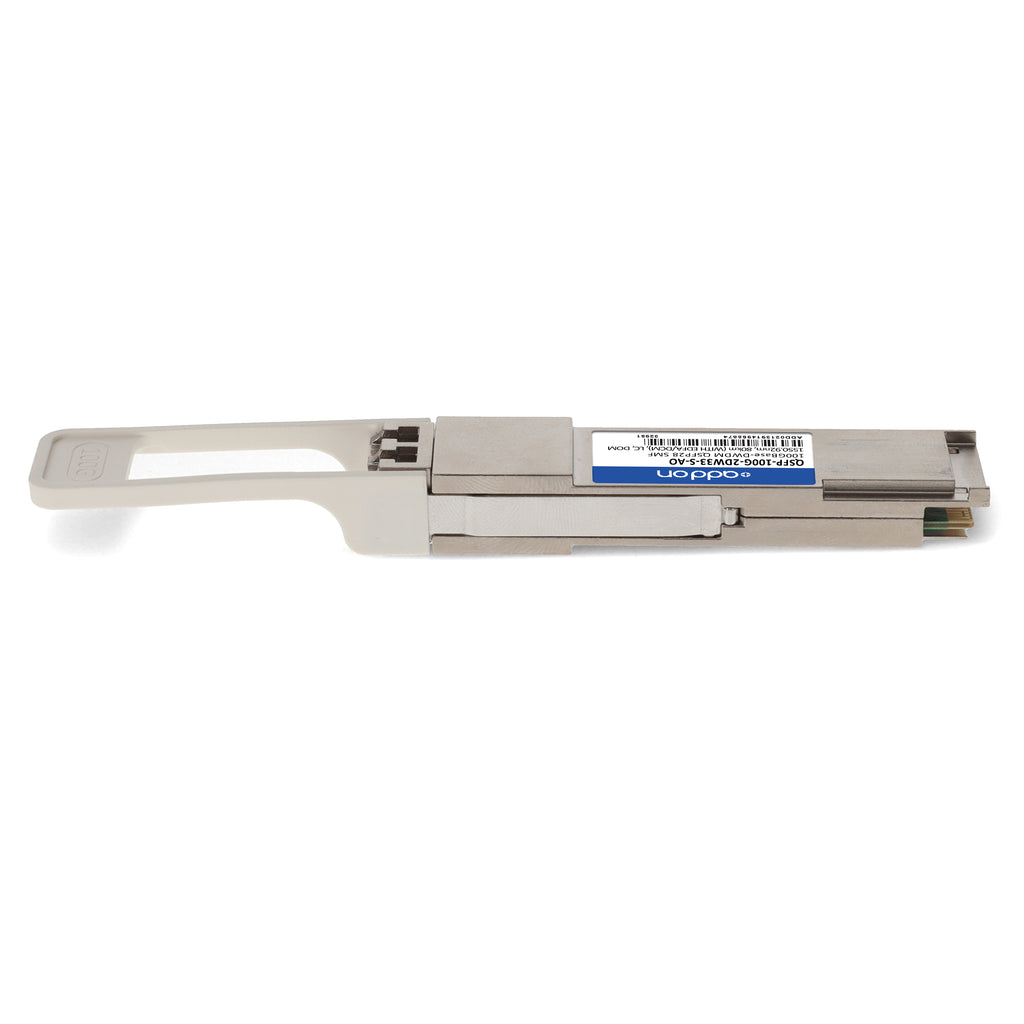

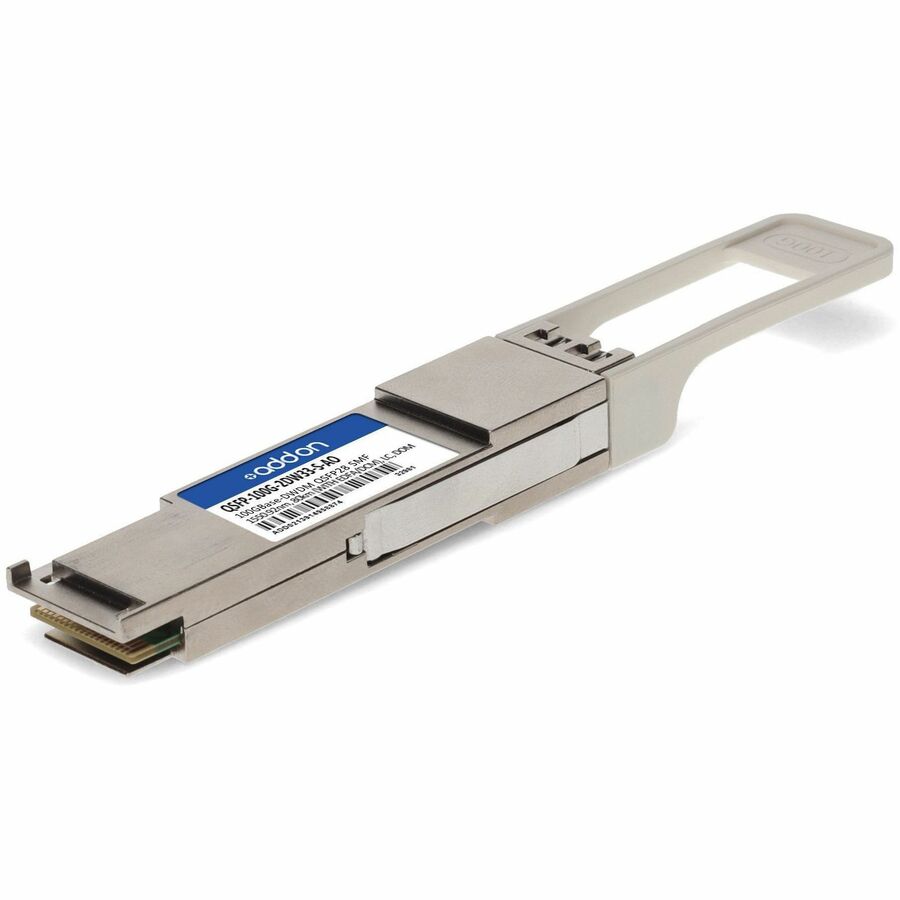

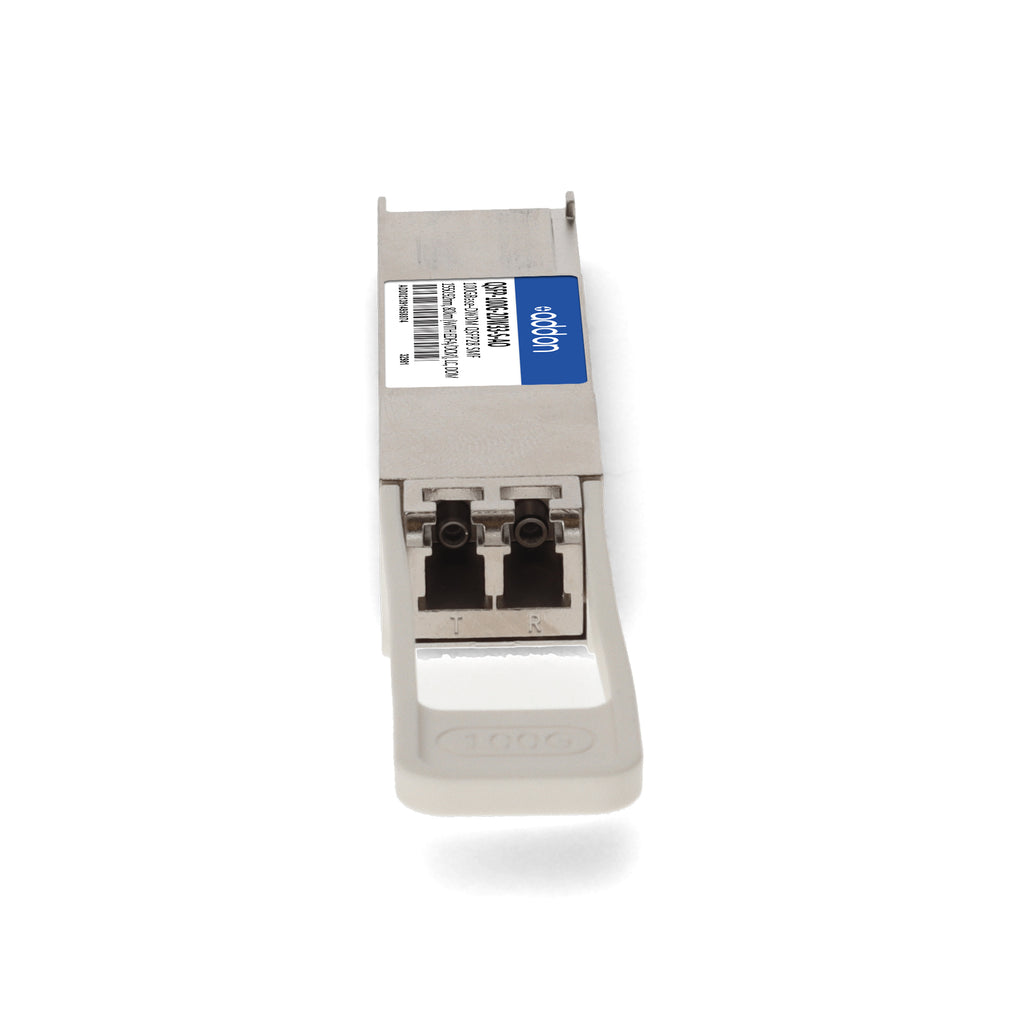

The AddOn Cisco® QSFP-100G-2DW33-S Compatible 100GBase-DWDM PAM4 QSFP28 transceiver delivers reliable 100Gbps data transmission over single-mode fiber (SMF) for distances up to 80 km, leveraging C-Band Channel DW33 with a 1550.92 nm wavelength. Designed for use in access, metro, and enterprise networks, this hot-pluggable transceiver ensures seamless integration and interoperability with Cisco® platforms. It is fully compliant with SFF-8665 and ITU-T 100 GHz DWDM grid standards and features digital optical monitoring (DOM) for real-time performance insights. TAA compliant and engineered for durability, it offers robust ESD protection, low EMI, and reliable performance across commercial temperature ranges. Each unit is uniquely serialized, application-tested, and backed by AddOn’s limited lifetime warranty for maximum confidence in mission-critical deployments.
| Specification | Details |
|---|---|
| Brand | AddOn |
| SKU | QSFP-100G-2DW33-S-AO |
| Form Factor | QSFP28 |
| Data Rate | 100 Gbps |
| Transmission Distance | Up to 80 km (with EDFA/DCM) |
| Wavelength | 1550.92 nm (C-Band, DW33) |
| Channel Spacing | 100 GHz ITU Grid |
| Optical Modulation | PAM4 |
| Connector Type | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Digital Diagnostics (DOM) | Supported |
| Operating Temperature | 20 °C to 70 °C |
| Power Supply Voltage | 3.135 V – 3.465 V |
| Power Dissipation | 4 – 5 W |
| Transmitter Optical Power (per lane) | –11 dBm to –8 dBm |
| Receiver Sensitivity | ≤ –3 dBm |
| Maximum Input Power | 10 dBm |
| Extinction Ratio | ≥ 6 dB |
| Side-Mode Suppression Ratio | ≥ 30 dB |
| Connector Compliance | SFF-8665 |
| EMI/EMC Compliance | FCC Part 15 Subpart B, EN55022:2010 |
| Laser Safety | FDA 21CFR, EN60950-1, IEC 60825-1, -2 |
| Compliance | TAA, RoHS 2.0 (2015/863/EU) |
| Applications | 100G Ethernet, Access, Metro, Enterprise Networks |
| Warranty | Limited Lifetime Warranty |
