Description

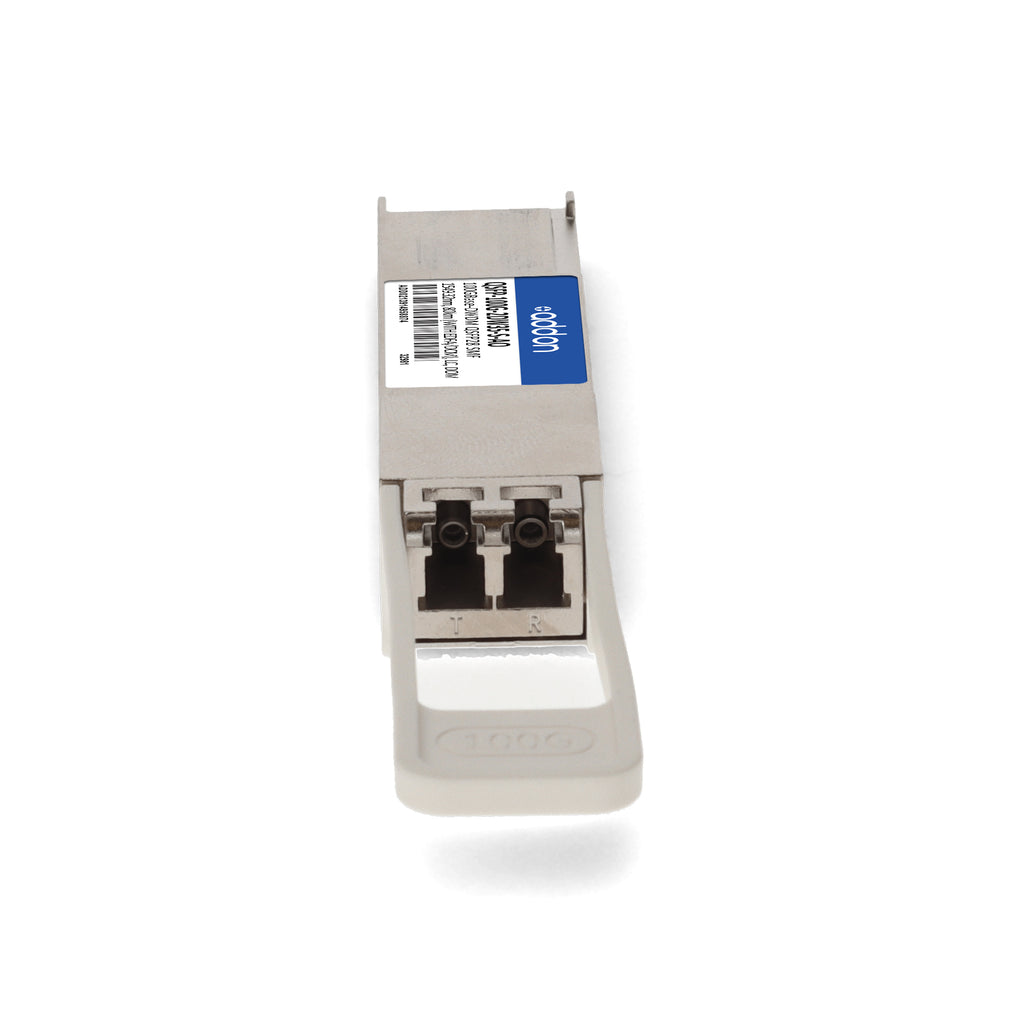

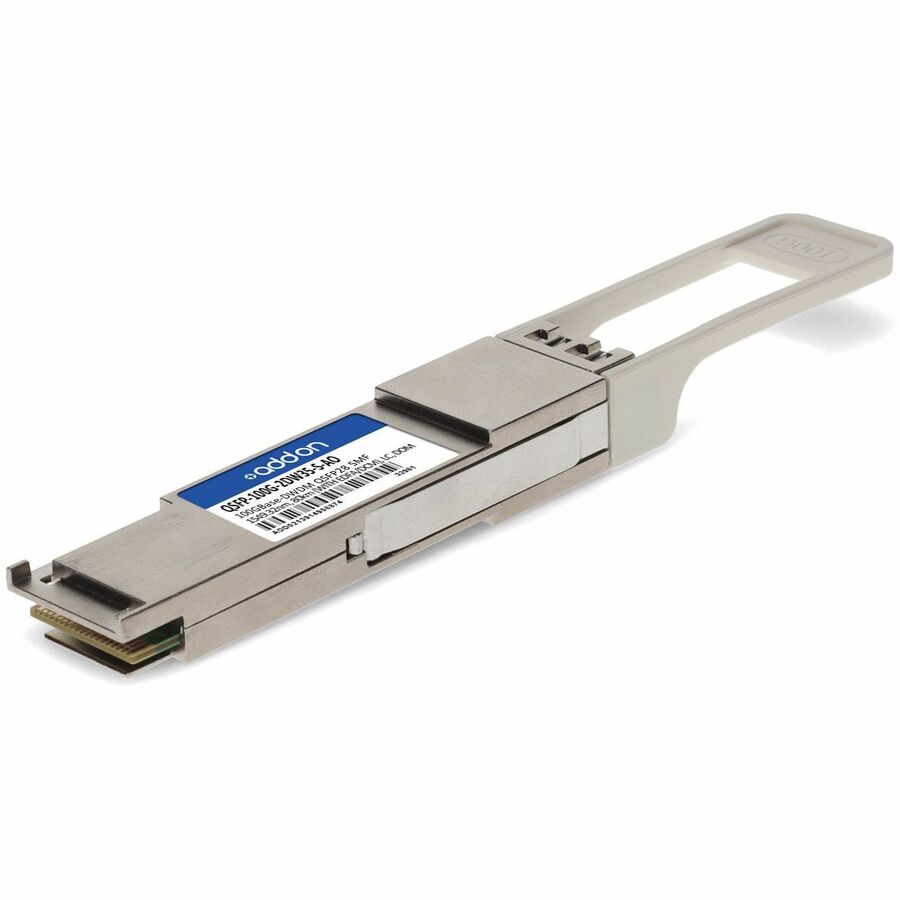

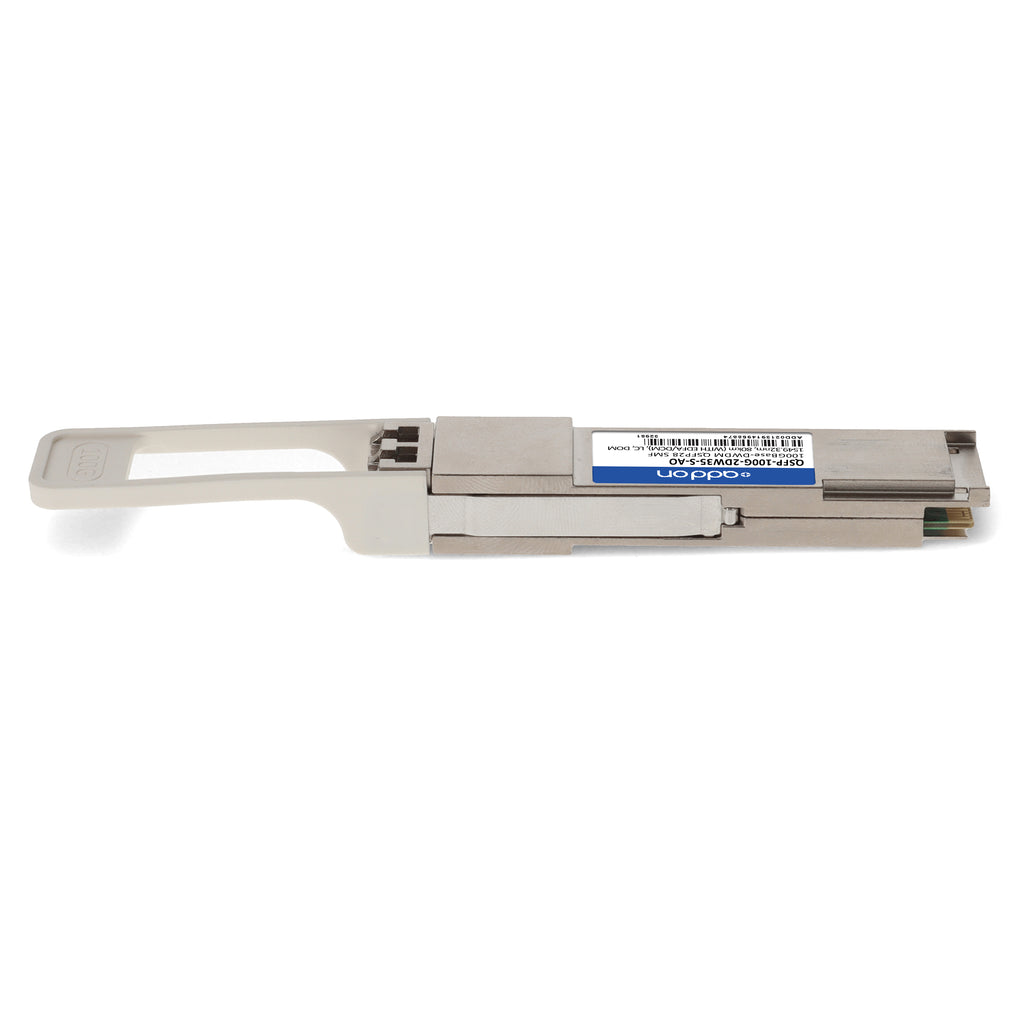

The AddOn Cisco® QSFP-100G-2DW35-S Compatible 100GBase-DWDM PAM4 QSFP28 Transceiver delivers high-performance, long-reach data transmission for demanding optical networks. Operating on the C-Band DWDM ITU Channel DW35 at a wavelength of 1549.32nm, this module supports data rates up to 100Gbps over single-mode fiber (SMF) at distances of up to 80km when used with EDFA and DCM. Designed for seamless interoperability, it is guaranteed to be 100% compatible with the original Cisco® part and undergoes extensive testing for signal integrity, application performance, and reliability.
This hot-swappable, easy-to-install transceiver features a duplex LC connector, supports Digital Optical Monitoring (DOM) for real-time diagnostics, and operates in commercial temperature environments from 20°C to 70°C. Fully compliant with SFF-8665 standards, it is ideal for access, metro, and enterprise network deployments requiring scalable, high-capacity optical transport. RoHS compliant, lead-free, and TAA certified, it ensures quality, compliance, and reliability backed by AddOn’s industry-leading warranty.
| Specification | Details |
|---|---|
| Brand | AddOn |
| Part Number / SKU | QSFP-100G-2DW35-S-AO |
| Compatibility | Cisco® QSFP-100G-2DW35-S |
| Form Factor | QSFP28 |
| Data Rate | 100GBase-DWDM PAM4 |
| Wavelength | 1549.32 nm (C-Band ITU DW35) |
| Distance | Up to 80 km (with EDFA/DCM) |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Optical Channel Spacing | 100 GHz DWDM |
| Optical Transmit Power (per lane) | -11 to -8 dBm |
| Receiver Sensitivity | -3 to -2 dBm |
| Receiver Damage Threshold | 10 dBm |
| Optical Return Loss | ≥20 dB |
| Extinction Ratio | ≥6 dB |
| Side-Mode Suppression Ratio | ≥30 dB |
| Spectral Width | ±25 GHz |
| Digital Optical Monitoring (DOM) | Supported |
| Temperature Range (Operating) | 20°C to 70°C |
| Power Dissipation | ≤5 W |
| Compliance | SFF-8665, FCC Part 15, EN55022:2010, FDA 21CFR, IEC 60825-1/2, RoHS 2.0 |
| Hot Pluggable | Yes |
| TAA Compliant | Yes |
| Applications | 100G Ethernet, Access, Metro, and Enterprise Networks |
| Warranty | Limited Lifetime Warranty |
