Description

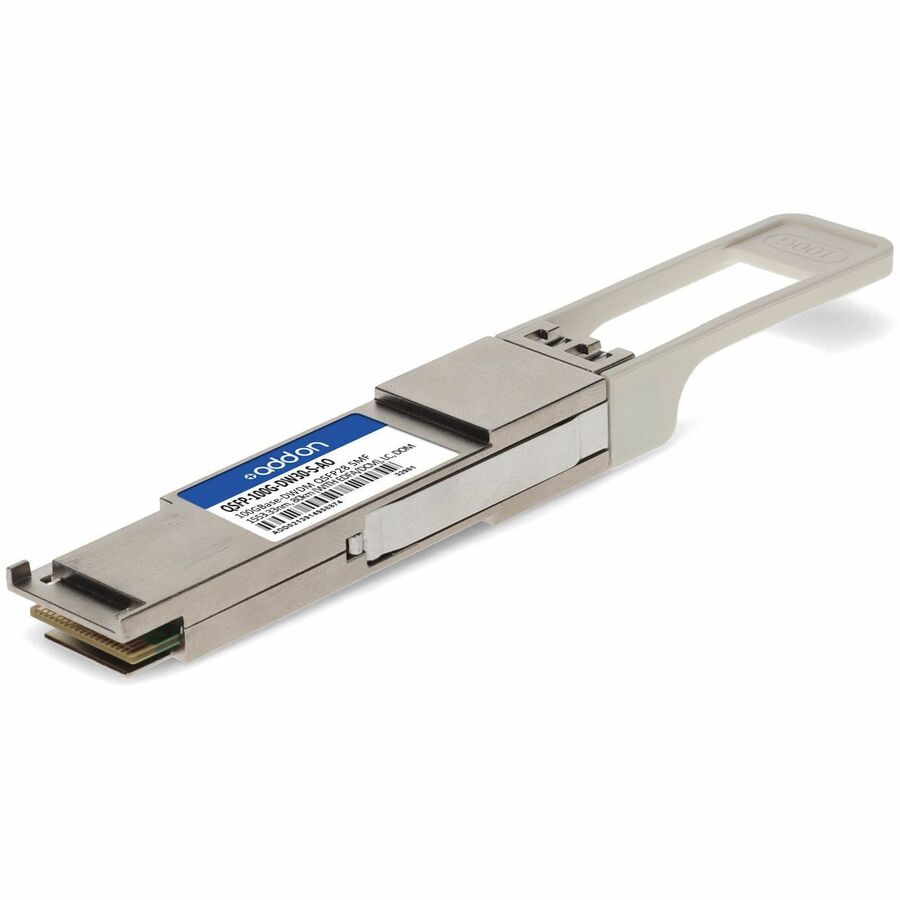

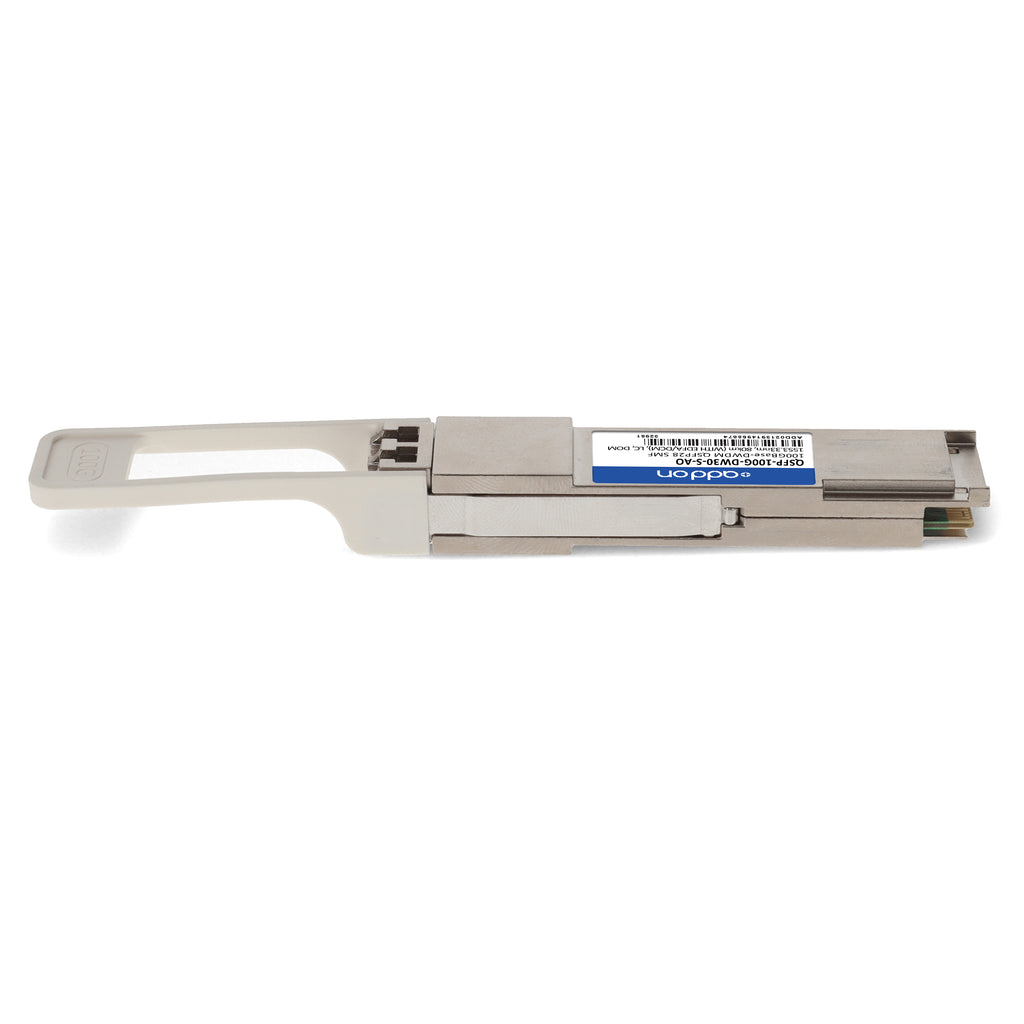

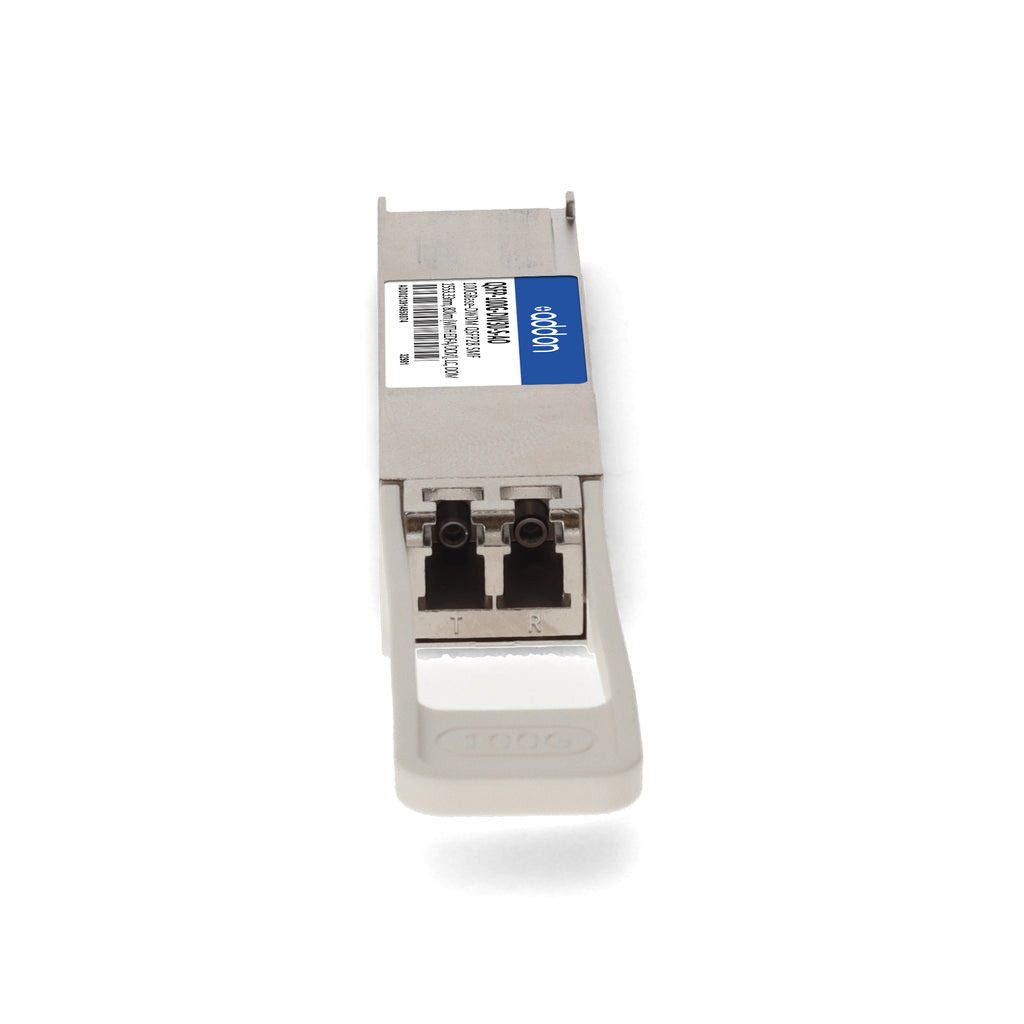

The AddOn Cisco® QSFP-100G-DW30-S Compatible TAA 100GBase-DWDM QSFP28 Transceiver delivers high-speed 100Gbps connectivity over single-mode fiber (SMF) for distances up to 80km. Operating on a 1553.33nm wavelength within the C-band, this PAM4-based single-lambda module integrates FEC for improved signal integrity and supports digital optical monitoring (DOM) for real-time diagnostics.
Engineered for access, metro, and enterprise network applications, it features a duplex LC connector, hot-pluggable design, and compliance with the SFF-8636 MSA and 100GHz ITU DWDM grid standards. With low EMI, excellent ESD protection, and full TAA compliance, this transceiver is 100% compatible with the Cisco® equivalent and undergoes rigorous testing to guarantee seamless performance and reliable operation in demanding network environments.
| Specification | Details |
|---|---|
| Manufacturer | AddOn |
| Part Number | QSFP-100G-DW30-S-AO |
| Form Factor | QSFP28 |
| Compatibility | Cisco® QSFP-100G-DW30-S |
| Data Rate | 100Gbps |
| Wavelength | 1553.33nm (C-Band, 100GHz ITU Grid) |
| Transmission Distance | Up to 80km (with EDFA/DCM) |
| Optical Signal | PAM4 with integrated FEC |
| Connector Type | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| DOM Support | Yes |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Power Consumption | ≤5.5W |
| Average TX Optical Power | -2 to +2 dBm |
| Receiver Sensitivity | -9 to -8 dBm |
| Receiver Overload | +4 dBm |
| Dispersion Tolerance | ±30 ps/nm |
| Compliance | SFF-8636 MSA, RoHS, FCC Part 15, EN55022, FDA 21CFR, IEC 60825-1/2 |
| TAA Compliant | Yes |
| Hot Pluggable | Yes |
| Applications | 100G Ethernet, Metro, Access, Enterprise Networks |
