Description

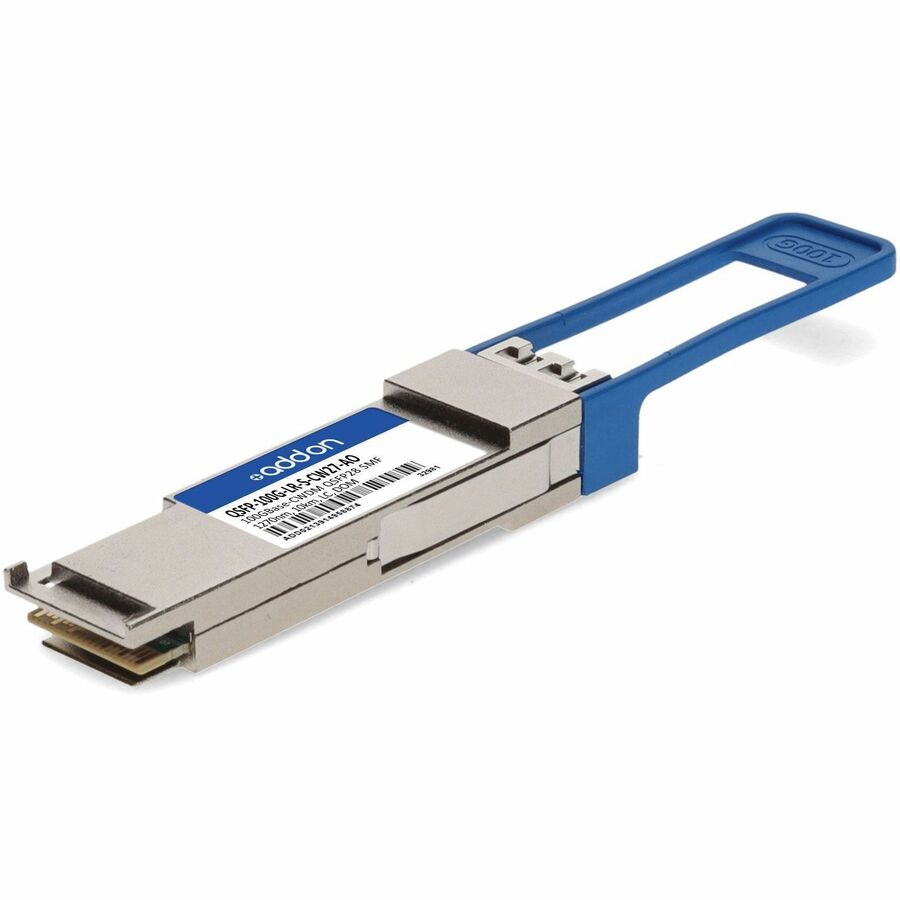

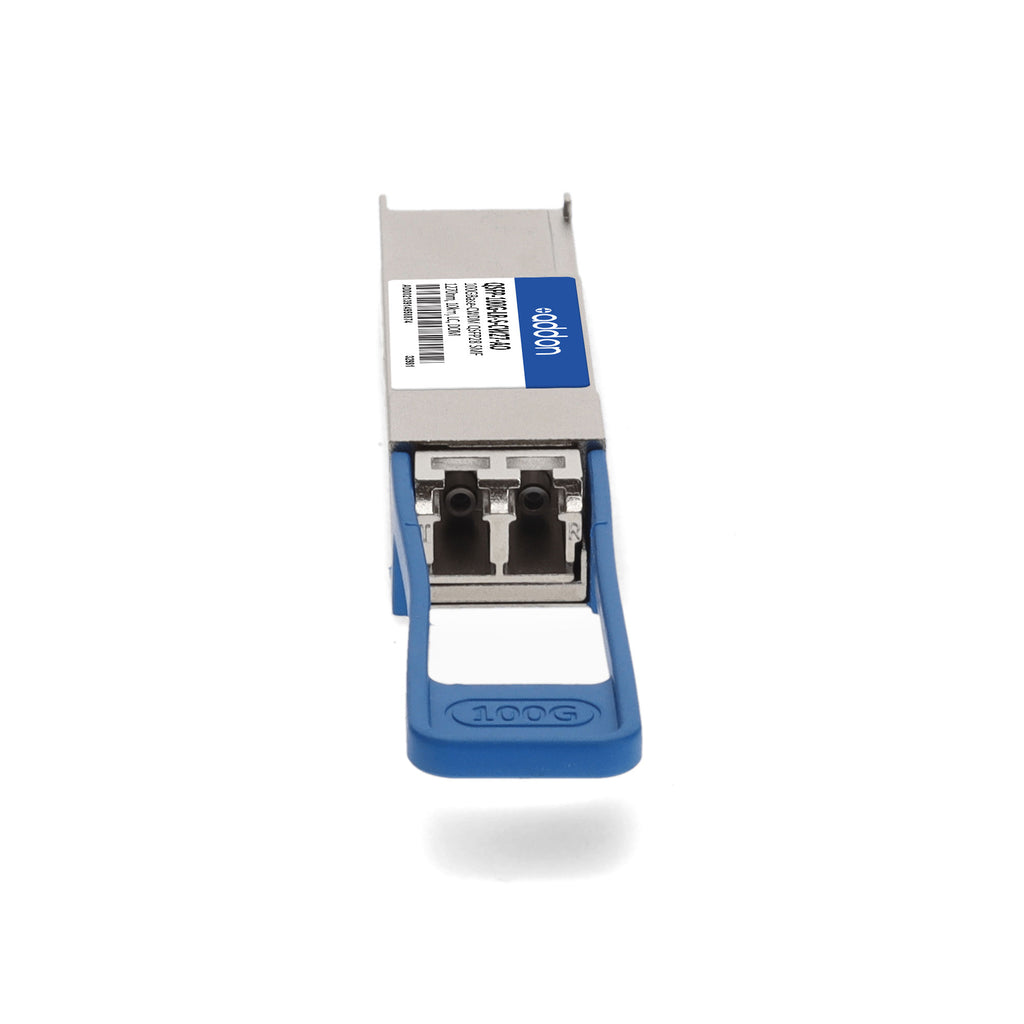

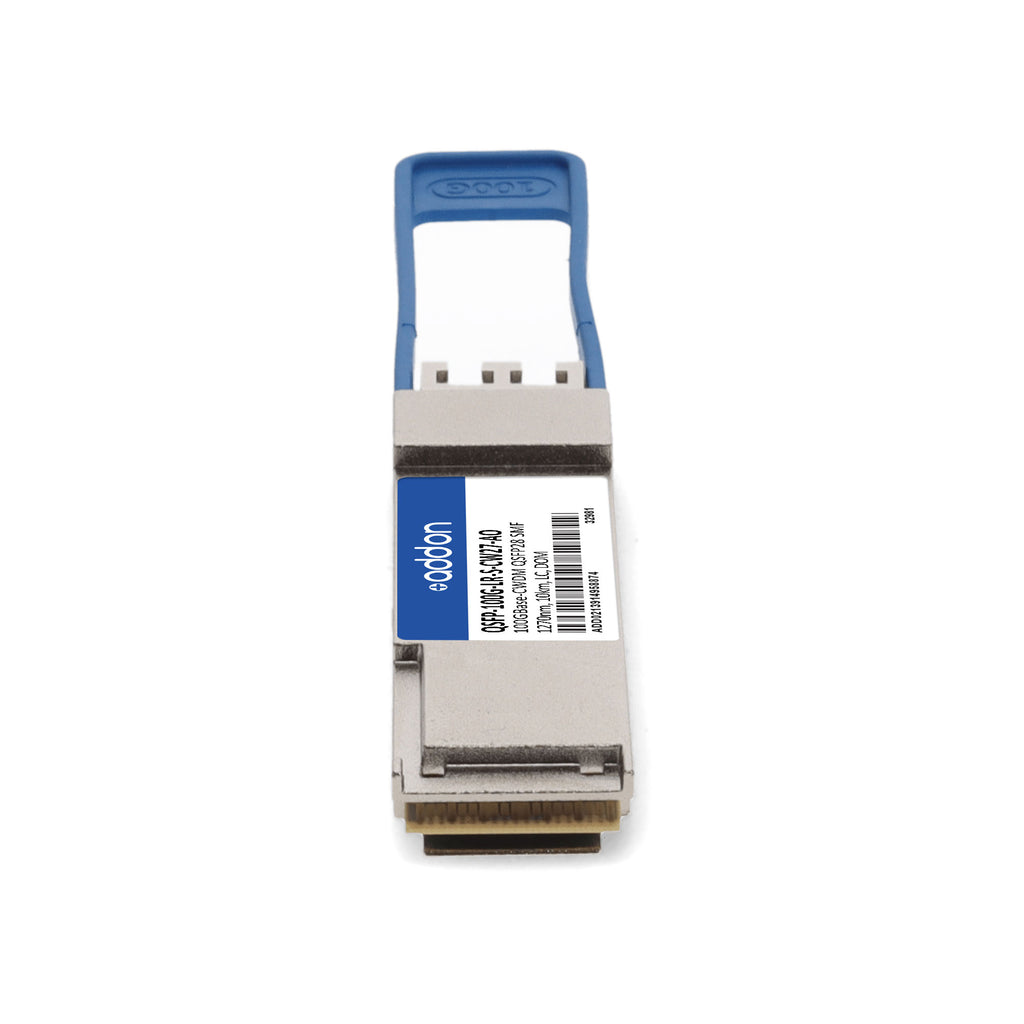

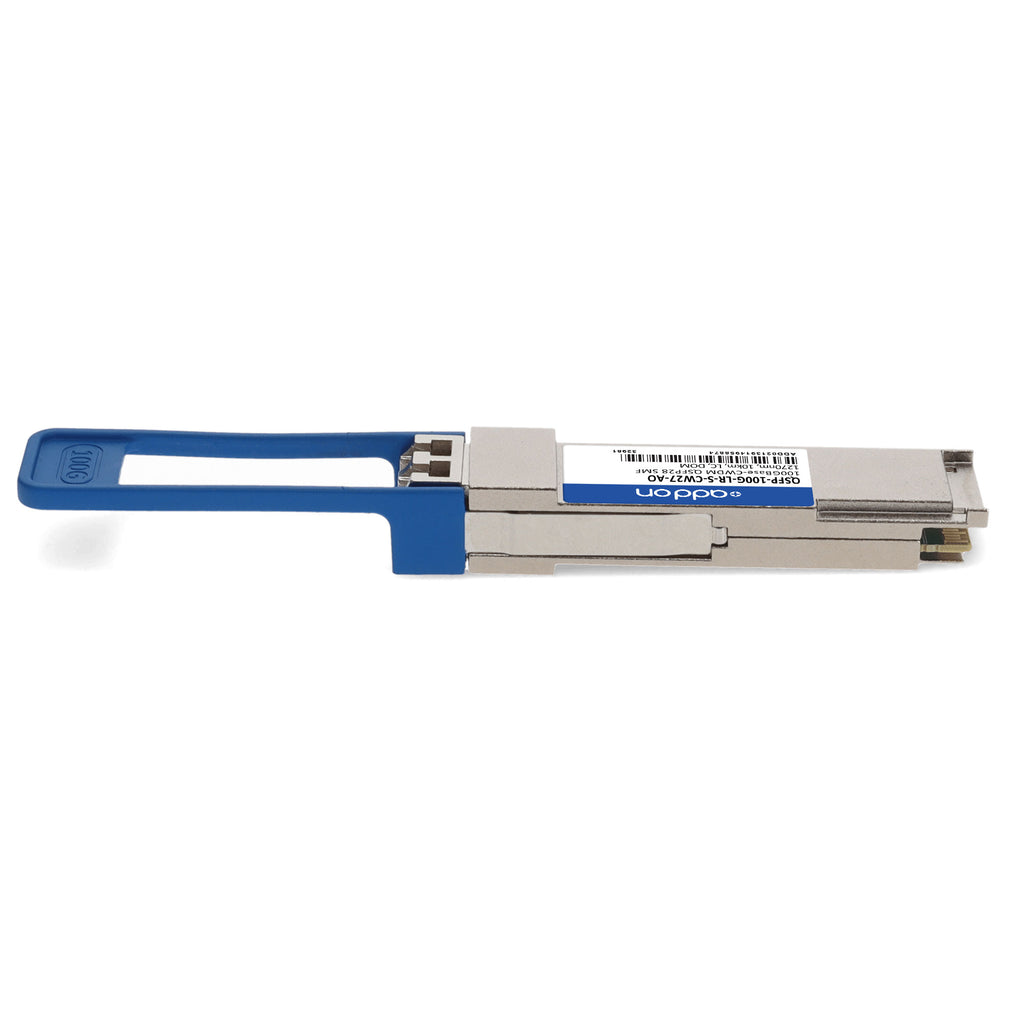

The AddOn Cisco® QSFP-100G-LR-S-CW27 Compatible Transceiver is a high-performance, cost-effective solution designed for 100GBase-CWDM Ethernet applications over single-mode fiber (SMF). Operating at a 1270nm wavelength, this QSFP28 optical module delivers reliable 100Gbps data throughput over distances of up to 10km with FEC, making it ideal for access, metro, and enterprise network deployments.
Built to meet 100G Lambda MSA 100G-LR and QSFP28 MSA standards, the transceiver supports a 4x25G electrical interface, features low power dissipation (<4.5W), and includes integrated Digital Diagnostic Monitoring (DOM) for real-time performance insights. It’s hot-swappable and 100% compatible with Cisco® equipment, ensuring seamless deployment in existing infrastructures. Fully RoHS and TAA compliant, this transceiver is backed by AddOn’s limited lifetime warranty for guaranteed performance and reliability.
| Specification | Description |
|---|---|
| Brand | AddOn |
| OEM Compatibility | Cisco® QSFP-100G-LR-S-CW27 |
| Form Factor | QSFP28 |
| Data Rate | 100Gbps |
| Wavelength | 1270nm (CWDM, λ27) |
| Optical Technology | PAM4, Single Lambda |
| Transmission Distance | Up to 10km with FEC |
| Fiber Type | SMF (Single-Mode Fiber) |
| Connector Type | LC Duplex |
| Power Dissipation | < 4.5W |
| Electrical Interface | 4x25G |
| Compliance Standards | 100G Lambda MSA 100G-LR, QSFP28 MSA, SFF-8636 Rev 2.10a |
| Digital Diagnostics (DOM) | Supported |
| Operating Case Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Operating Relative Humidity | 5% – 85% |
| Supply Voltage | 3.135V – 3.465V |
| Receiver Sensitivity (OMAouter) | Max(-6.1 dBm, SECQ-7.5 dBm) |
| Transmit Power (Average) | -1.4 dBm to 4.5 dBm |
| Extinction Ratio | ≥ 3.5 dB |
| Side-Mode Suppression Ratio | ≥ 30 dB |
| Loss of Signal (LOS) Assert / De-assert | -15 dBm / -12 dBm |
| Compliance | TAA, RoHS |
| Warranty | Limited Lifetime Warranty |
