Description

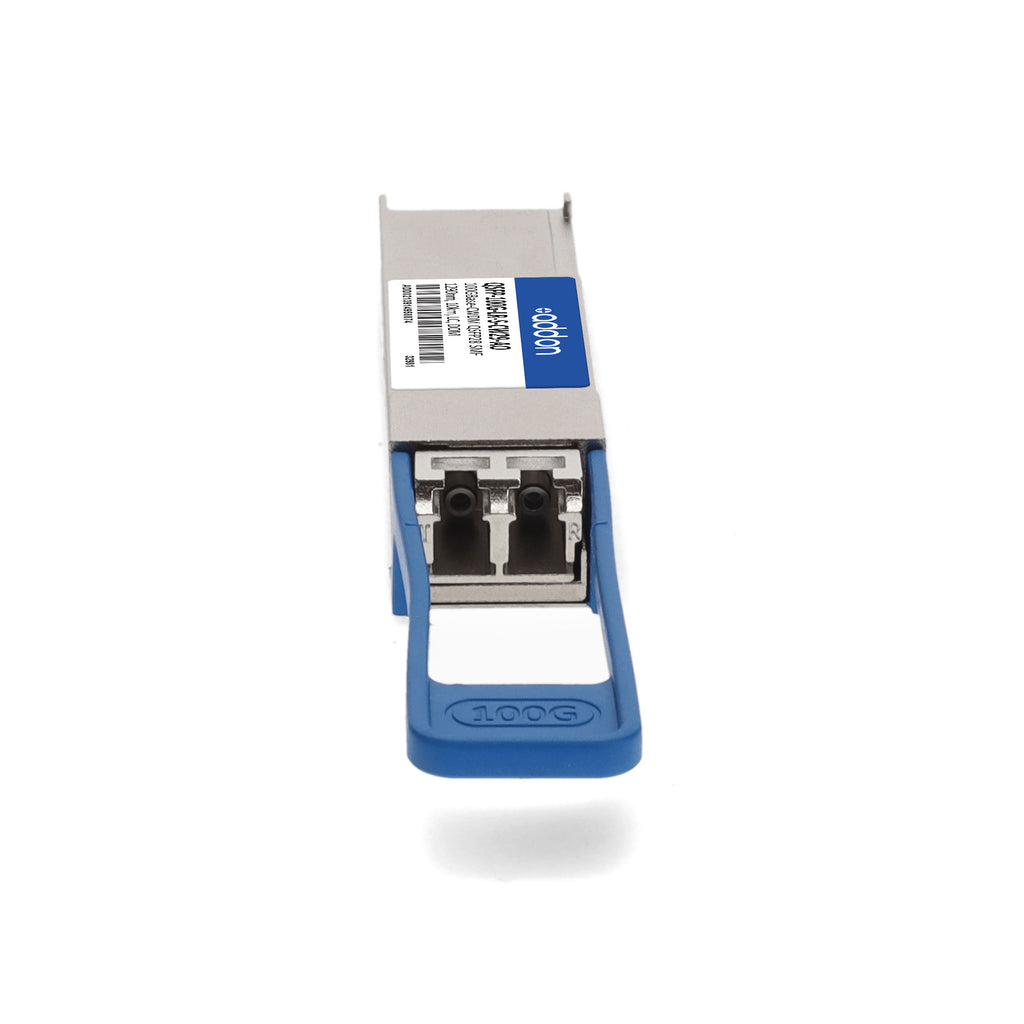

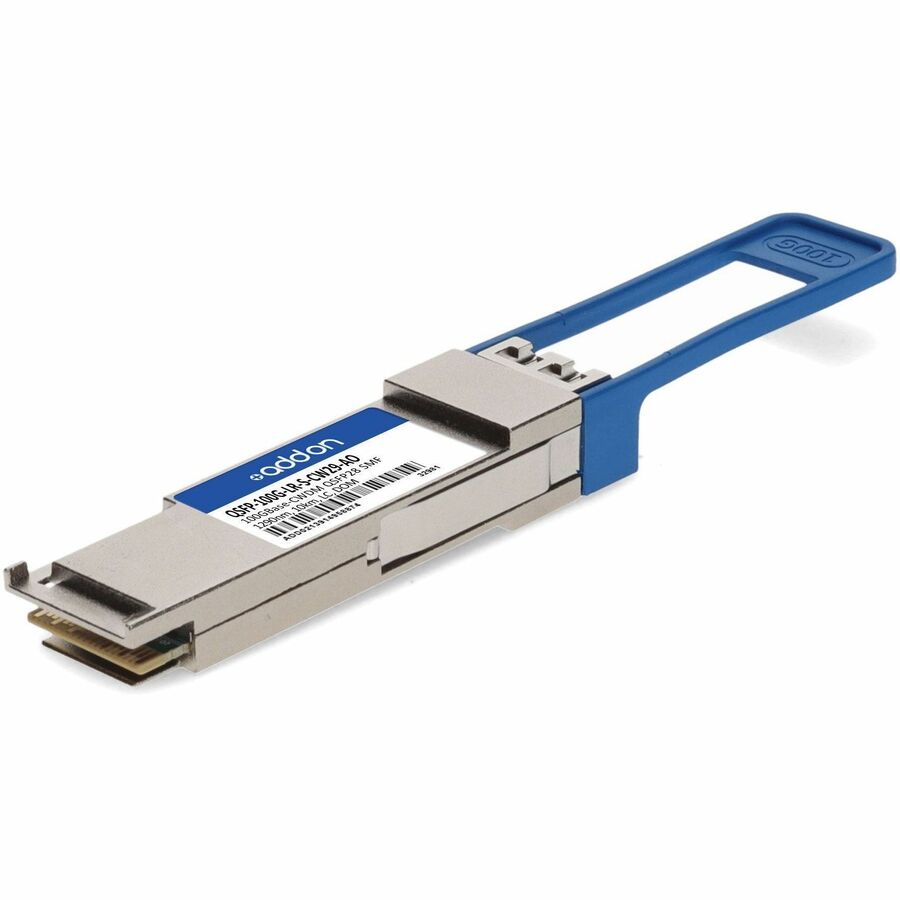

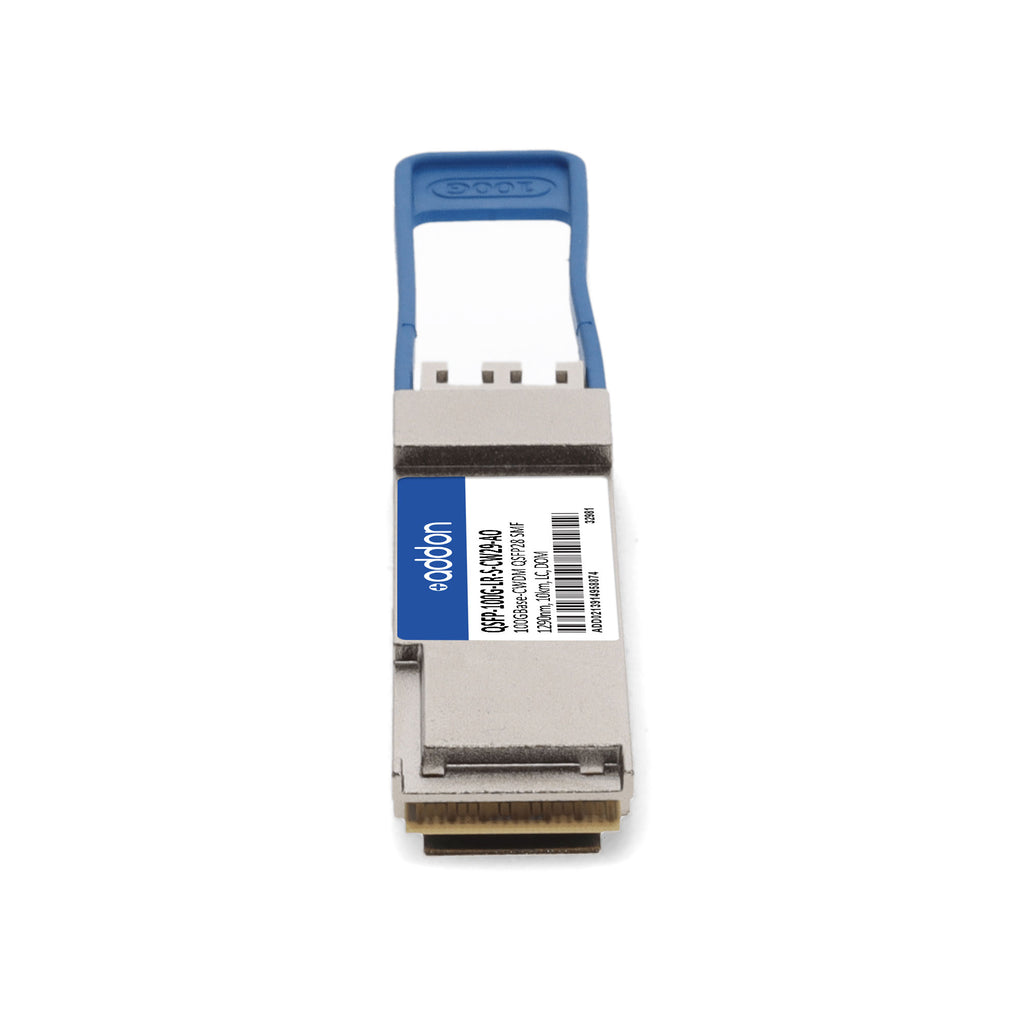

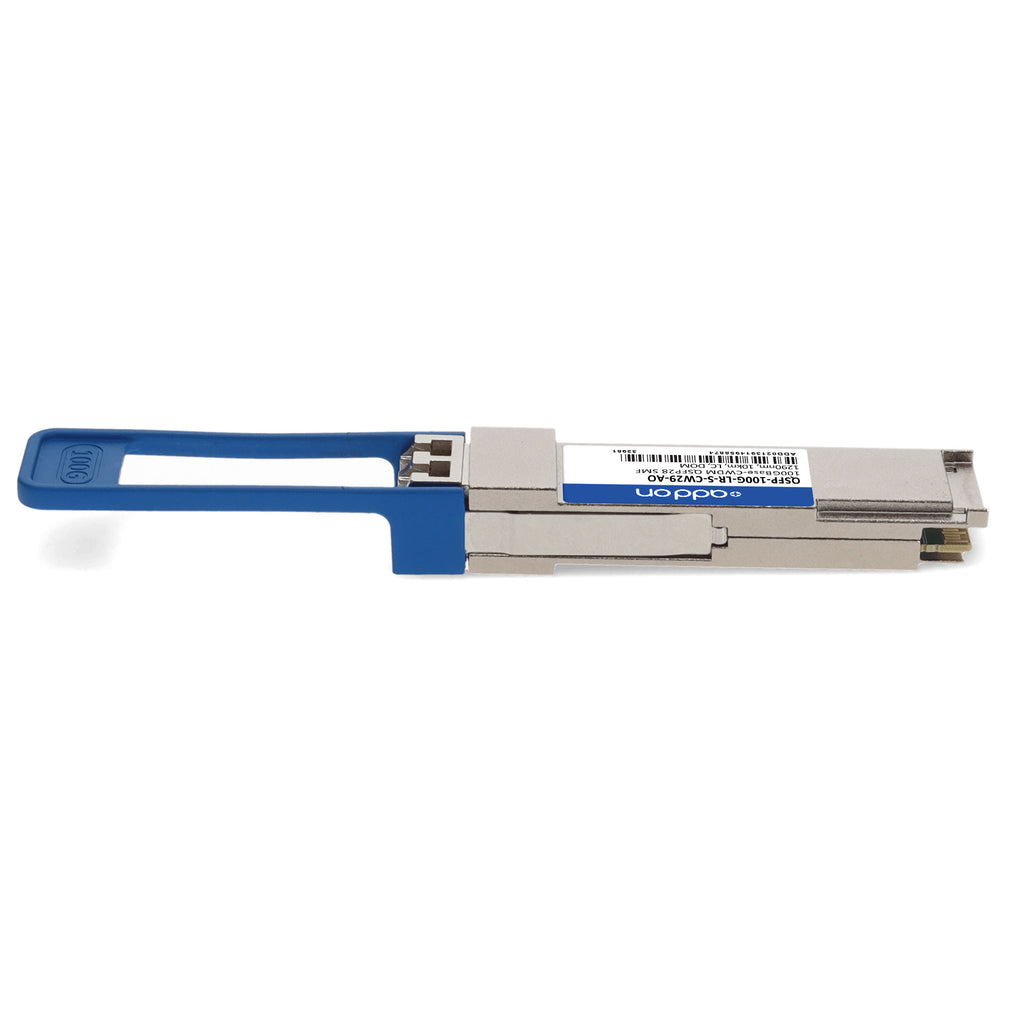

The AddOn Cisco® QSFP-100G-LR-S-CW29-AO is a high-performance, TAA-compliant 100GBase-CWDM QSFP28 transceiver designed for seamless integration into Cisco networking environments. Operating over single-mode fiber (SMF) with a wavelength of 1290nm, this single-lambda optical module delivers reliable 100Gbps connectivity up to 10km with forward error correction (FEC). It features an LC duplex connector, hot-swappable QSFP28 form factor, and integrated Digital Optical Monitoring (DOM) for real-time performance diagnostics.
Engineered to meet 100G Lambda MSA 100G-LR specifications, this transceiver ensures full compatibility, plug-and-play installation, and exceptional reliability for high-bandwidth applications across access, metro, and enterprise networks. Each unit is programmed, uniquely serialized, and tested for data-traffic and application performance to guarantee identical operation to the OEM equivalent. Supported by AddOn’s industry-leading quality assurance and limited lifetime warranty, it is the ideal choice for future-ready optical networking.
| Specification | Details |
|---|---|
| Part Number | QSFP-100G-LR-S-CW29-AO |
| Brand Compatibility | Cisco® |
| Form Factor | QSFP28 |
| Data Rate | 100Gbps |
| Transmission Standard | 100GBase-CWDM |
| Wavelength | 1290nm (CW29) |
| Distance | Up to 10km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | LC Duplex |
| Optical Modulation | PAM4 |
| Signaling Rate | 53.125 Gbaud |
| Optical Power (Tx OMA) | 0.7 to 4.7 dBm |
| Receiver Sensitivity | Max(-6.1 dBm, SECQ - 7.5 dBm) |
| Average Rx Power | -7.7 to 4.5 dBm |
| Power Supply Voltage | 3.135V – 3.465V |
| Power Dissipation | < 4.5W |
| Electrical Interface | 4x25G |
| Digital Diagnostics (DOM) | Supported |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Compliance | QSFP28 MSA, 100G Lambda MSA 100G-LR, SFF-8636 Rev 2.10a, RoHS, TAA |
| Applications | 100G Ethernet, Access, Metro, and Enterprise Networks |
| Warranty | Limited Lifetime Warranty |
