Description

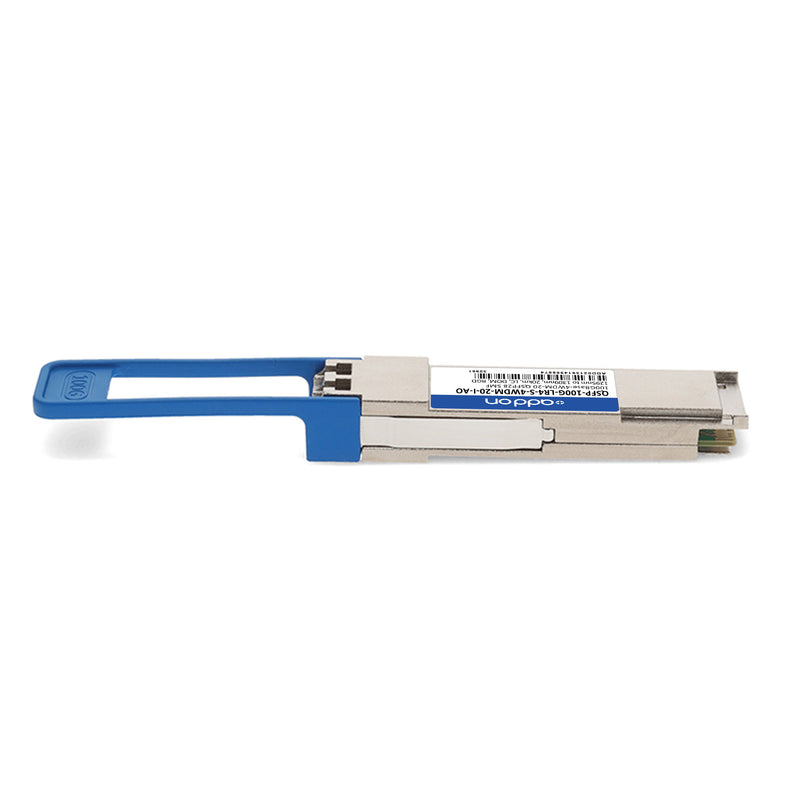

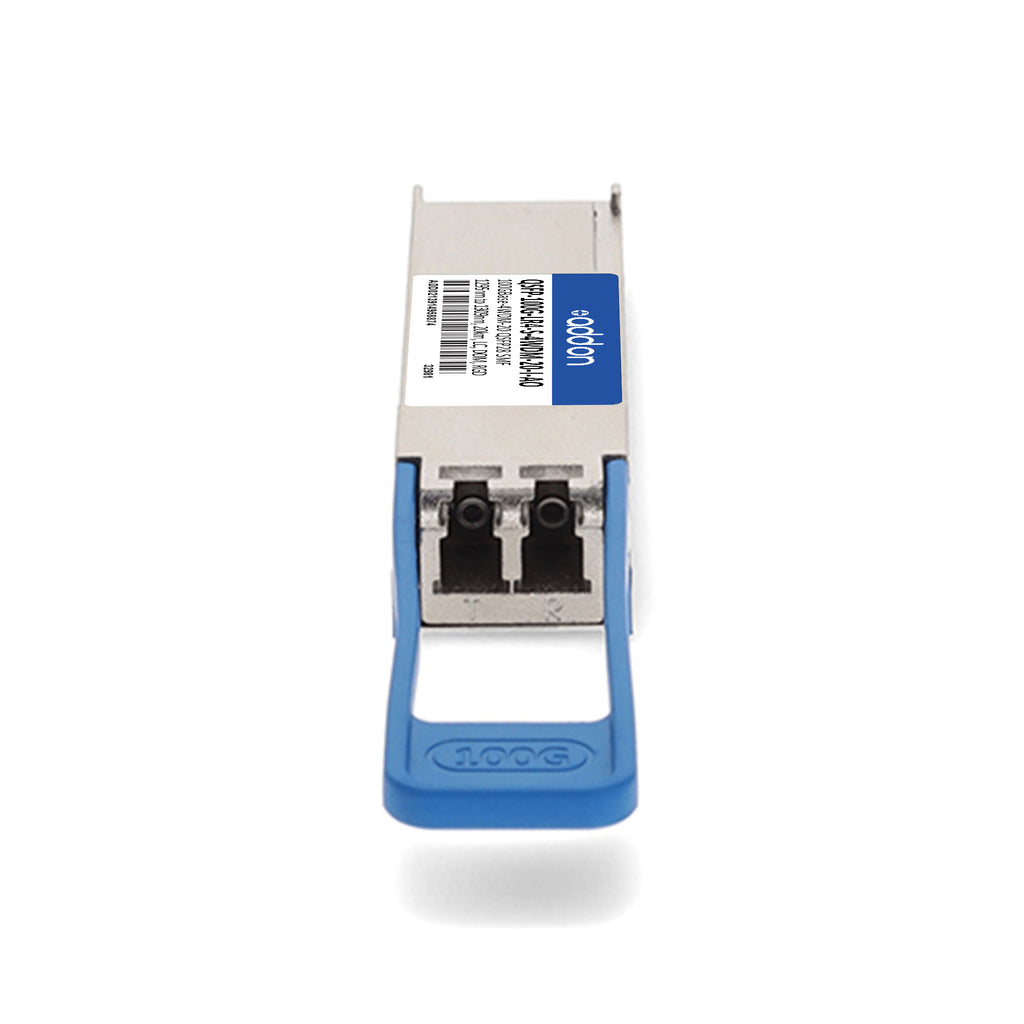

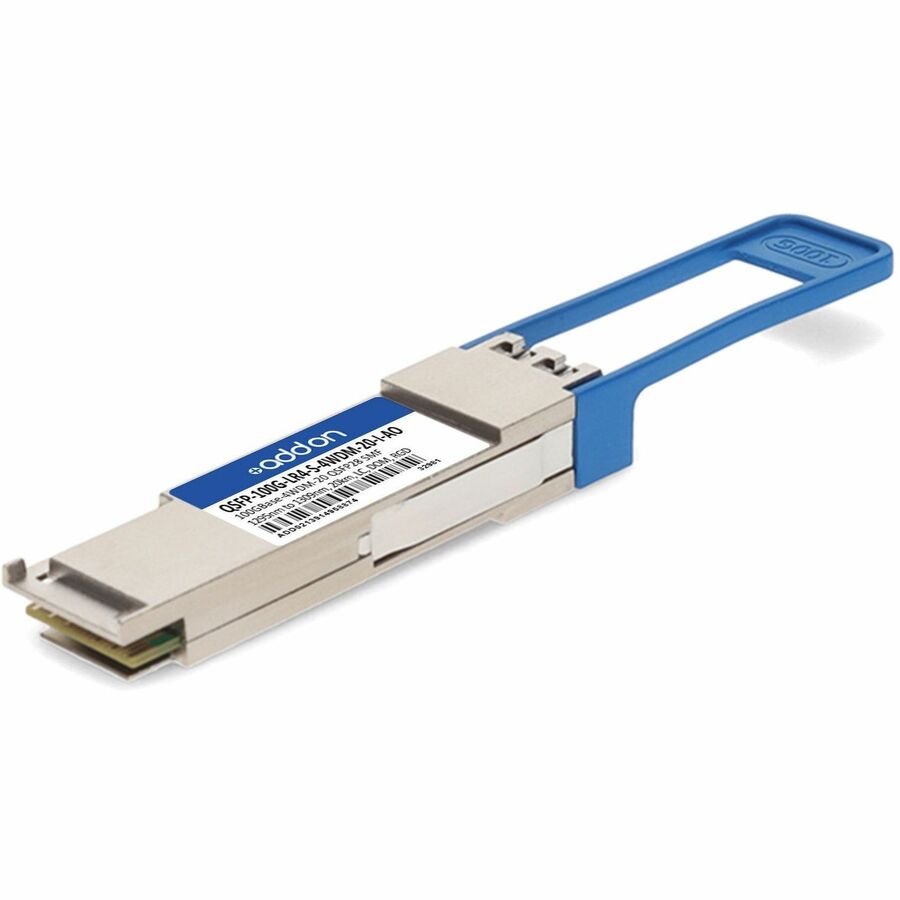

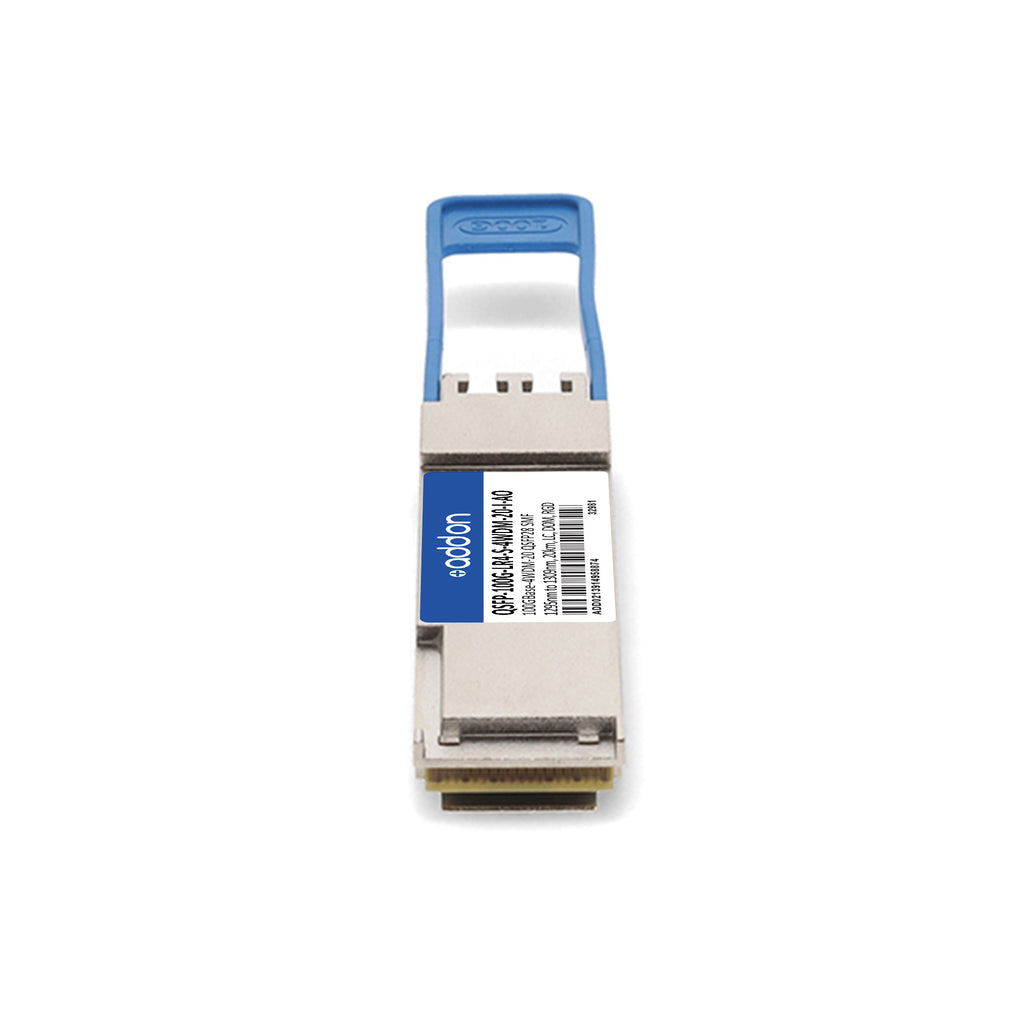

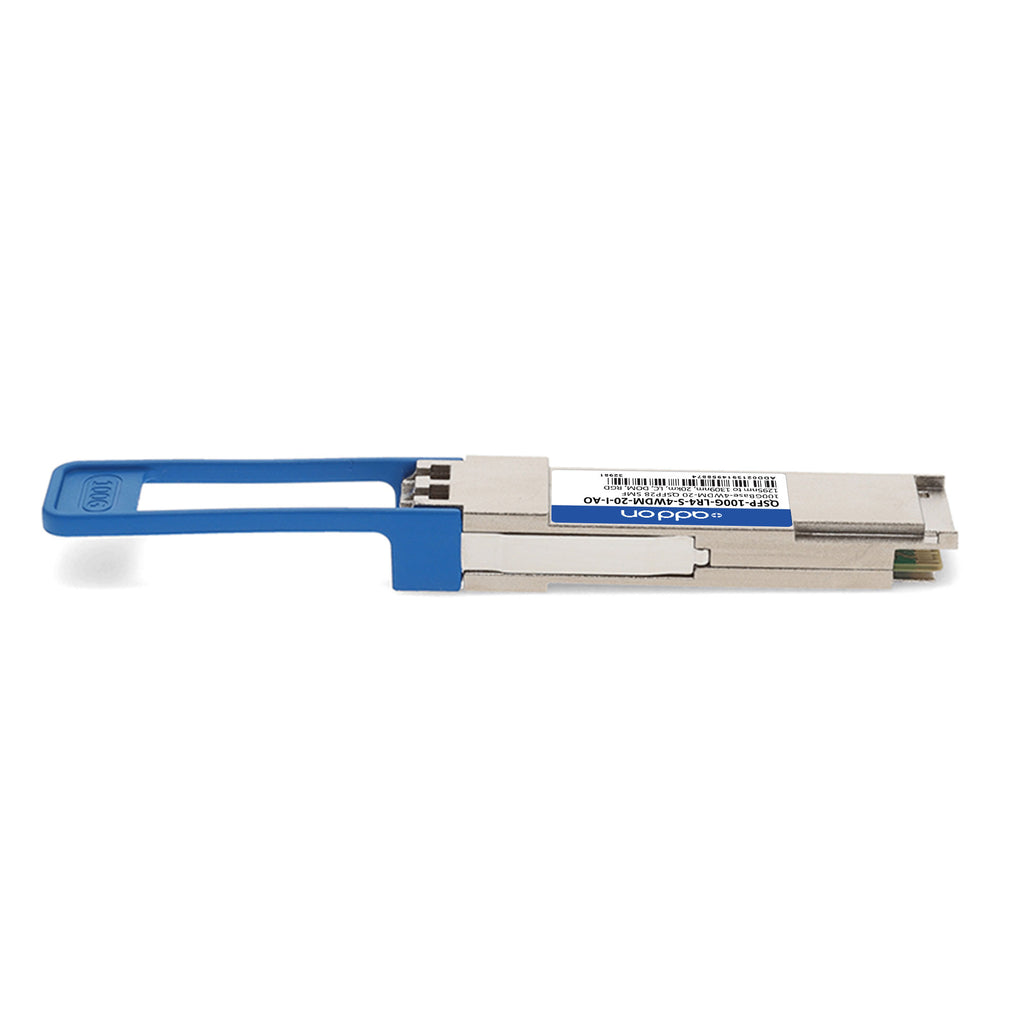

The AddOn Cisco® QSFP-100G-LR4-S-4WDM-20-I Compatible TAA 100GBase-4WDM-20 QSFP28 Transceiver is designed to deliver high-speed, reliable 100GbE connectivity for enterprise, data center, and access networks. Supporting data rates up to 103Gbps, this hot-swappable optical transceiver operates over single-mode fiber (SMF) at wavelengths ranging from 1295nm to 1309nm and provides a transmission distance of up to 20km via duplex LC connectors.
Built with LAN-WDM DFB-based transmitters and PIN/TIA receivers, this module offers superior optical performance and energy efficiency with power consumption below 4.8W. It features Digital Optical Monitoring (DOM) for real-time performance metrics and operates across a wide industrial temperature range (-40°C to 85°C).
Fully compliant with QSFP28 MSA and IEEE 802.3 standards, this transceiver ensures seamless interoperability and is 100% guaranteed to be compatible with the equivalent Cisco® part. Each unit is TAA compliant, uniquely serialized, and tested for quality, reliability, and full OEM-equivalent performance.
| Specification | Description |
|---|---|
| Manufacturer | AddOn |
| SKU / Part Number | QSFP-100G-LR4-S-4WDM-20-I-AO |
| Form Factor | QSFP28 |
| Data Rate | 100GBase-4WDM-20 (103Gbps) |
| Wavelength Range | 1295nm – 1309nm |
| Maximum Distance | 20km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Transmitter Type | 4x 25Gbps DFB LAN-WDM |
| Receiver Type | PIN + TIA Array |
| Interface | 4x25G Electrical Interface |
| Digital Diagnostics (DOM) | Supported (I2C Interface) |
| Power Supply Voltage | 3.3V (Single) |
| Power Consumption | < 4.8W |
| Operating Temperature | -40°C to 85°C (Industrial) |
| Extinction Ratio | ≥ 4 dB |
| Average Output Power per Lane | -4.3 to 4.5 dBm |
| Receiver Sensitivity (OMA) | ≤ -12.5 dBm |
| Maximum Receive Power | 4.5 dBm |
| Compliance Standards | QSFP28 MSA, IEEE 802.3, RoHS, TAA |
| Applications | 100G Ethernet, Access Networks, Enterprise, Data Center |
| Warranty | Limited Lifetime Warranty |
