Description

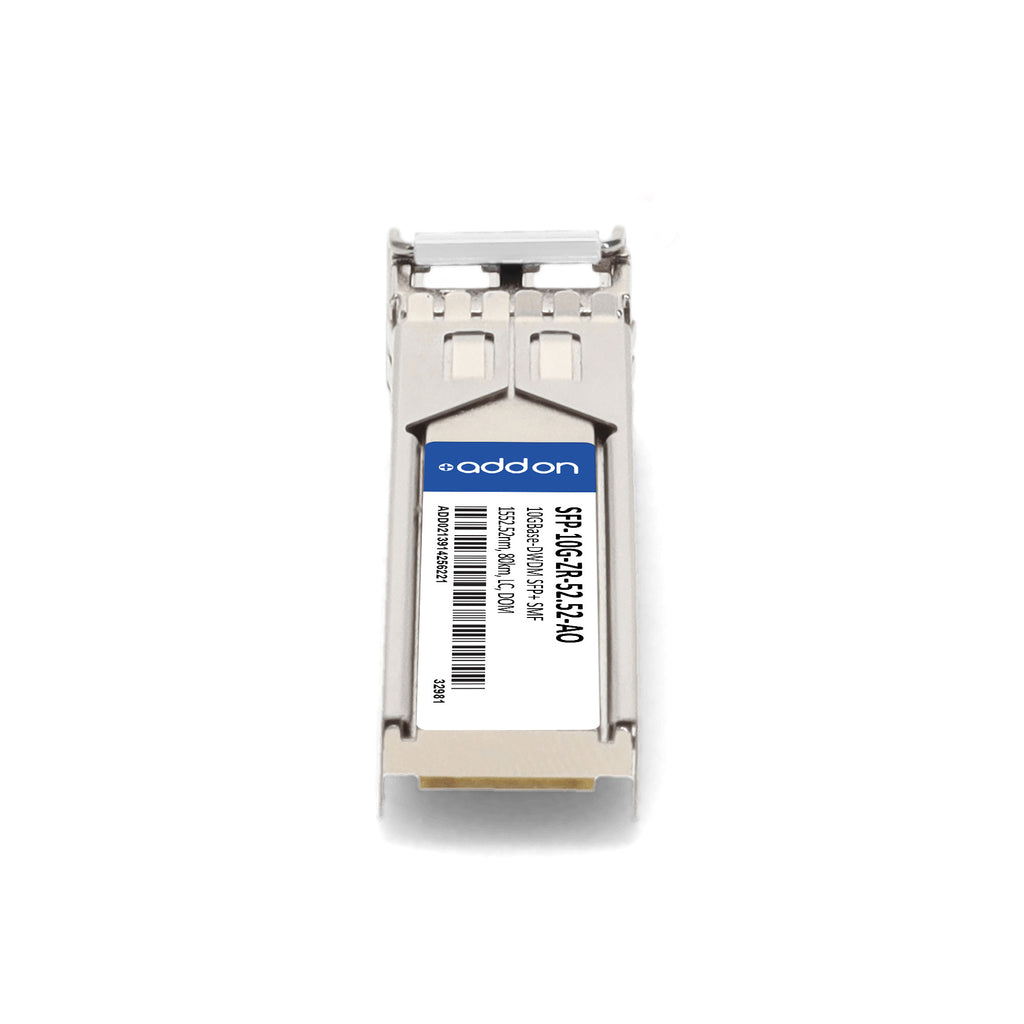

The AddOn Cisco® SFP-10G-ZR-52.52-AO is a high-performance, hot-swappable SFP+ transceiver designed for long-reach 10 Gigabit Ethernet and DWDM network applications. Delivering 10GBase-DWDM throughput up to 80km over single-mode fiber (SMF) using a 1552.52nm wavelength, this module ensures robust, high-bandwidth connectivity in metro, enterprise, and carrier environments.
It is fully compliant with SFF-8432 and SFF-8472 standards and features a temperature-stabilized EML transmitter and APD receiver for superior signal integrity. Equipped with digital optical monitoring (DOM), it allows real-time visibility into critical operating parameters. Each unit is uniquely serialized, data-traffic tested, and programmed for seamless interoperability with Cisco® systems.
Built with excellent ESD protection, low EMI shielding, and TAA compliance, this AddOn transceiver offers exceptional reliability, cost-effectiveness, and lifetime support — making it the ideal solution for expanding high-speed DWDM networks.
| Parameter | Specification |
|---|---|
| SKU | SFP-10G-ZR-52.52-AO |
| Compatible OEM | Cisco® |
| Form Factor | SFP+ |
| Application | 10GBase-DWDM |
| Data Rate | 10.3125 Gbps |
| Wavelength | 1552.52 nm (ITU Channel 31) |
| Transmission Distance | Up to 80 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Transmitter Type | EML (Externally Modulated Laser) |
| Receiver Type | APD |
| Digital Optical Monitoring (DOM) | Supported |
| Operating Temperature | 0°C to +70°C |
| Power Consumption | 1.5 W (typical) |
| Transmit Optical Power | 0 to +4 dBm |
| Receiver Sensitivity | -24 dBm |
| Average Receive Power | -24 to -7 dBm |
| Extinction Ratio | ≥ 9 dB |
| Spectral Width (-20 dB) | ≤ 0.6 nm |
| Side Mode Suppression Ratio (SMSR) | ≥ 30 dB |
| Relative Intensity Noise (RIN) | ≤ -128 dB/Hz |
| Transmitter Dispersion Penalty (TDP) | ≤ 3.2 dB |
| Hot Swappable | Yes |
| Compliance Standards | SFF-8432, SFF-8472, IEEE 802.3ae |
| TAA Compliant | Yes |
| RoHS Compliant / Lead-Free | Yes |
| Warranty | Limited Lifetime Warranty |
