Description

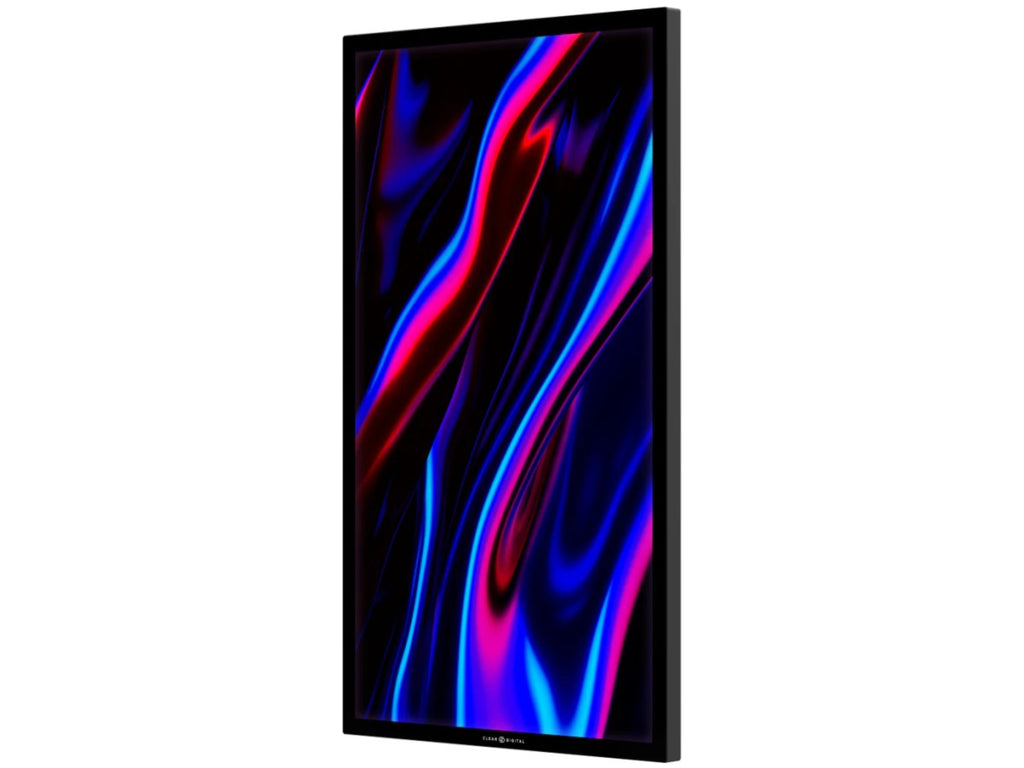

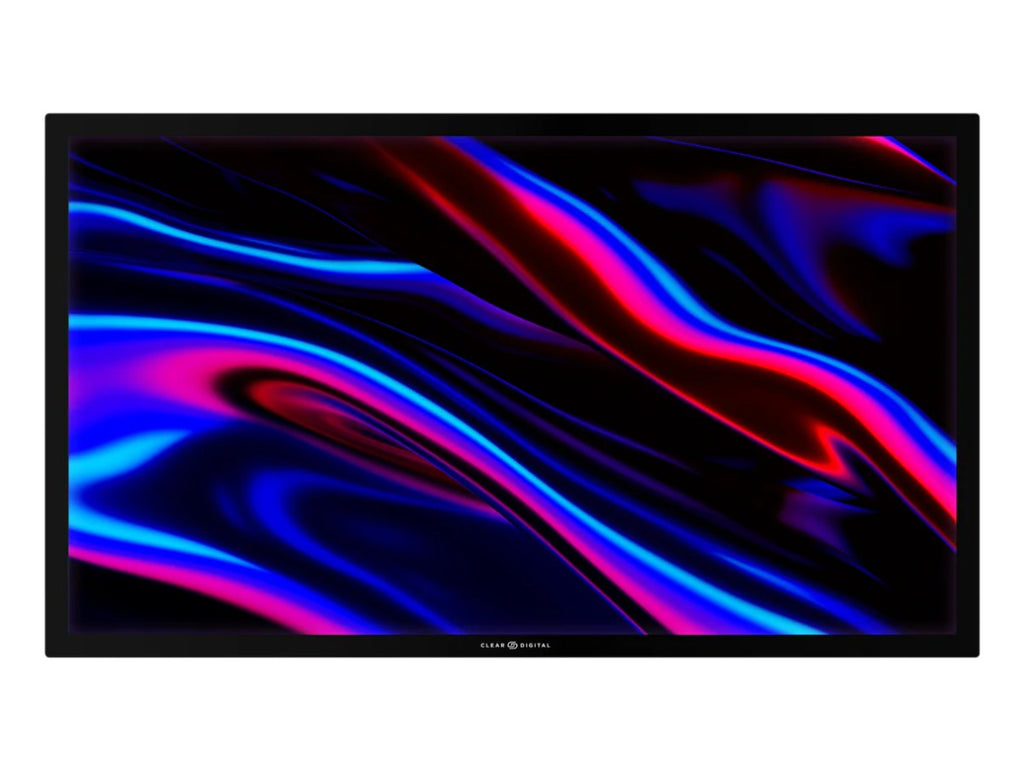

The Clear Digital 32" PCAP Touch Screen is a bright, durable interactive display designed for commercial, wayfinding, kiosk, and digital signage applications. Featuring a Full HD 1920 x 1080 LCD panel with W-LED technology, 1000-nit brightness, anti-glare glass, and an IP54-rated design, it delivers clear visibility and reliable performance in demanding environments.
Powered by Android 13 with 4GB RAM and 32GB flash memory, this touch display supports smooth operation for interactive content, media playback, and connected applications. Built-in LAN and Wi-Fi provide flexible network connectivity, while HDMI, USB, RJ45, and TF card interfaces make integration simple. The unit includes a VESA mounting bracket and comes with a 1-year warranty.
| Specification | Details |
|---|---|
| SKU | CDS-TMBDS-WAYP32+TAF |
| Model | CDS-TMBDS-WAYP-32 |
| Product Type | PCAP Touch Screen Display |
| Display Size | 32 Inch |
| Display Type | LCD Display |
| Display Technology | W-LED |
| Display Format | FHD |
| Resolution | 1920 x 1080 |
| Brightness | 1000 nits |
| Contrast Ratio | 1400:1 |
| Aspect Ratio | 16:9 |
| Response Time | 6.5 ms |
| Pixel Pitch | 0.36375 mm |
| Screen Design | Flat |
| Viewing Angle | 89/89 |
| Operating System | Android 13 |
| Memory | 4GB RAM |
| Storage | 32GB Flash Memory |
| Network Connectivity | LAN, Wi-Fi |
| Speakers | Yes |
| Interfaces | USB 2.0 x1, USB 3.0 x1, HDMI 2.0 x1, RJ45 x1, TF Card x1 |
| Video Interface | HDMI |
| HDMI Ports | 1 |
| LAN Speed | 100/1000M |
| Power Consumption | 86W |
| Power Requirement | AC 100-240V, 50-60Hz |
| Width | 2.64 in |
| Depth | 17.29 in |
| Height | 29.22 in |
| Weight | 35.27 lbs |

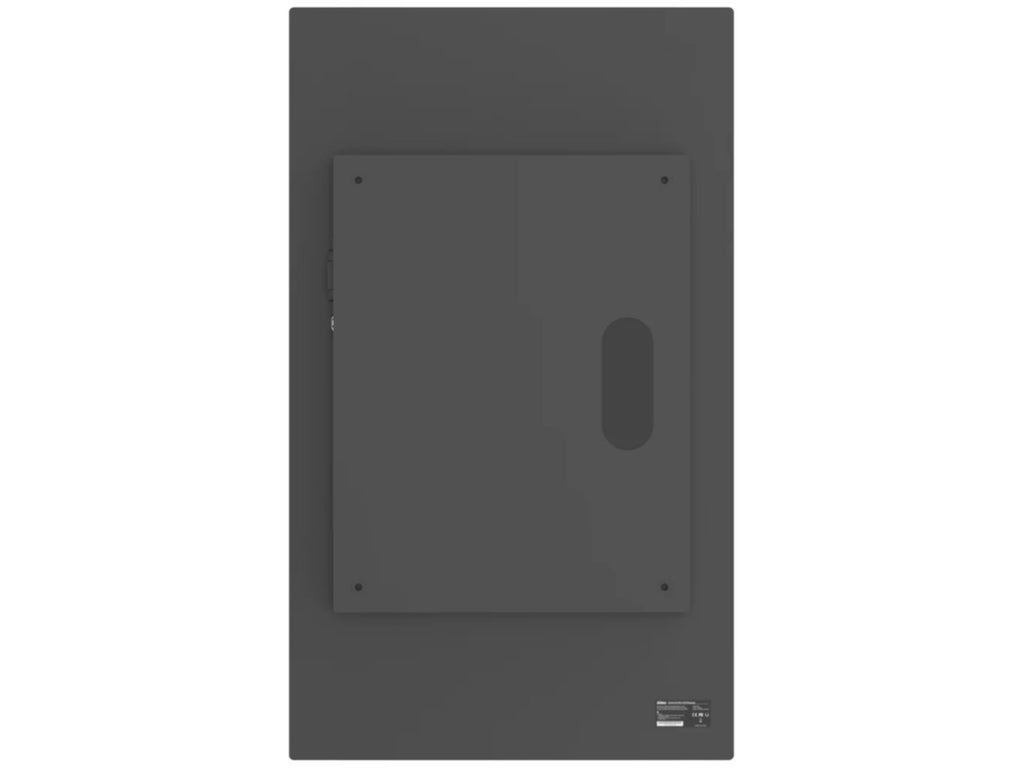

| Mounting | VESA Mounting Hole with Bracket Included |
| Protection | IP54 |
| Glass | Anti-glare |
| Warranty | 1-Year Warranty |
| COO | Inquire |
| TAA Compliance | Inquire |
| UNSPSC Code | 43211902 |
| Additional Feature | Bundled +TAF, Mandatory Tariff Allocation Fee |
