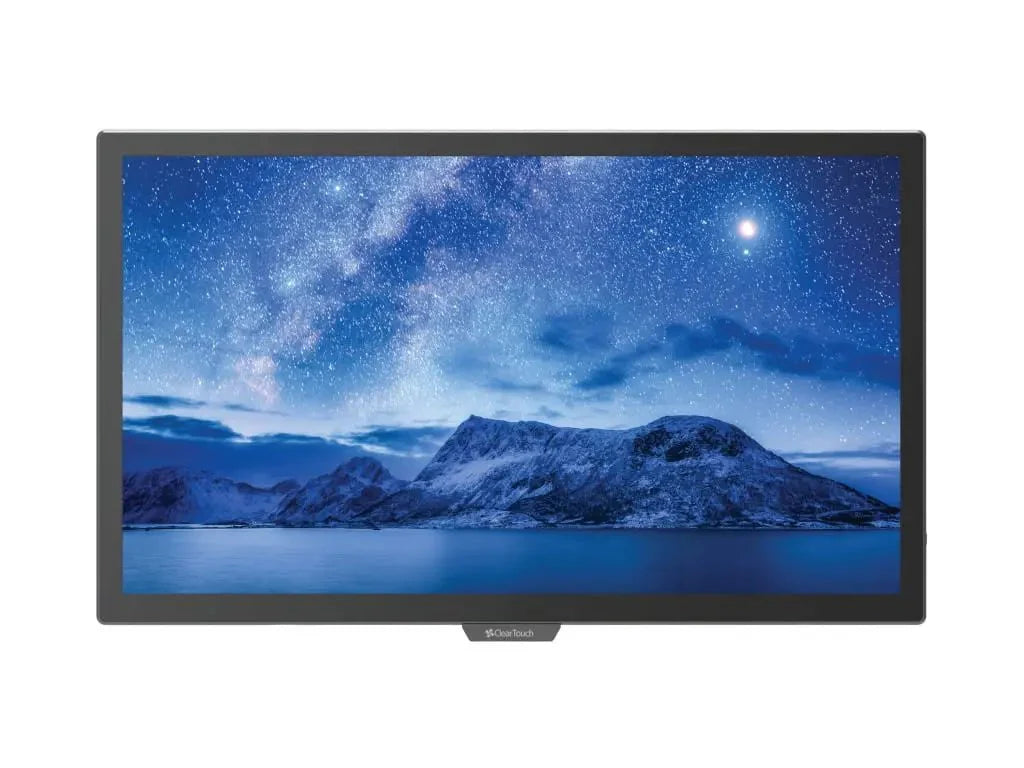

Description
The Clear Touch CTI-7043XT-UH20 43" 7000XT Series Interactive Panel delivers a compact 4K collaboration experience with responsive PCAP multi-touch technology, Android 11, integrated casting, and built-in panel management tools. Designed for education, training rooms, huddle spaces, and flexible work environments, this display supports up to 40 touch points on Windows and includes collaboration software without subscription fees.
Its 43-inch ADS display provides crisp 3840 x 2160 resolution, 450 cd/m² brightness, wide 178° viewing angles, and long-lasting performance rated for 50,000+ hours. Built for use with the mini-convertible stand, the panel supports drafting or tabletop mode and includes WiFi, Bluetooth, speakers, USB-C input, HDMI connectivity, and essential accessories for fast setup.
| Specification | Details |
|---|---|
| SKU | CTI-7043XT-UH20 |
| Brand | Clear Touch |
| Series | 7000XT Series |
| Display Size | 43" |
| Panel Type | ADS |
| Aspect Ratio | 16:9 |
| Resolution | 3840 x 2160 4K UHD |
| Display Area | 37.05" x 20.84" |
| Brightness | 450 cd/m² |
| Contrast Ratio | 1200:1 |
| Viewing Angle | 178° |
| Display Colors | 1.07B, 10-bit |
| Refresh Rate | 60Hz |
| Response Time | 8 ms |
| Backlight | ELED |
| Lifetime | 50,000+ hours |
| Touch Technology | Capacitive touch recognition |
| Touch Points | 32 points Android, 40 points Windows |
| Touch Compatibility | Windows 11, Windows 10, Linux, MacOSX, Android, Chrome |
| Touch Tools | Finger, capacitive stylus |
| Palm Rejection | Supported |
| Pressure Sensitivity | 4096 levels |
| Glass Type | 4mm toughened glass, Level 9 Mohs standard |
| Operating System | Android 11.0 |
| CPU | A53 x4 + A73 x4 |
| GPU | Mali G52 MP8 |
| RAM | 4GB |
| Storage | 32GB ROM |
| Audio | 2.0 channel |
| Speaker Output | 2 x 10W |
| HDMI Input | 3 |
| HDMI Output | 1 |
| USB 2.0 | 3 |
| USB 3.0 | 2 |
| USB-C Input | 1 |
| Touch USB | 2 |
| Audio Output | 1 |
| SPDIF | 1 |
| RS232 | 1 |
| RJ45 Input | 1 |
| RJ45 Output | 1 |
| WiFi Module | Included |
| Wireless | WiFi 802.11 a/b/g/n/ac/ax, Bluetooth 5.0 |
| Power Requirements | 100–240V, 50/60Hz, 3.0A |
| Standby Power | ≤0.5W |
| Standard Power | 78W |
| Max Power with PC | 265W |
| Dimensions | 39.57" x 23.62" x 2.83" |
| Package Dimensions | 44.05" x 7.36" x 28.23" |
| Net Weight | 57.65 lbs |
| Gross Weight | 67.24 lbs |
| VESA Mount | 400 x 300 mm |
| Wall-Hanging Screw Spec | M8 x 25 mm |
| Operating Temperature | 32°F – 104°F |
| Operating Humidity | 10% – 90% |
| Storage Temperature | -4°F – 140°F |
| Storage Humidity | 10% – 90% |
| Altitude | Below 16,000 ft |
| Included Accessories | Power cord, USB touch cable, HDMI cable, USB-C cable, wall mount, remote, batteries, 2 passive pens, quick start guide |
| Optional PC Module | CTI-PCOPS-PC15 |
| Standard Warranty | 3 years |
| Extended Warranty Option | 5 years |
