Description
The Soundweb London BLU-103 (BLU-103) is a high-performance conferencing processor designed for professional AV environments requiring advanced acoustic echo cancellation (AEC), VoIP connectivity, and scalable networked audio distribution.
Featuring 8 analog mic/line inputs and 8 analog outputs, the BLU-103 provides a fixed yet powerful configuration ideal for boardrooms, divisible meeting spaces, training rooms, and multi-room conferencing applications.
With a built-in VoIP interface supporting two SIP v2.0 (or later) lines, the BLU-103 seamlessly integrates into enterprise telephony systems. Dedicated AEC processing delivers up to eight independent AEC algorithms, each with Automatic Gain Control (AGC) and Noise Cancellation (NC), ensuring crystal-clear communication by maintaining optimal microphone levels and removing steady-state background noise such as HVAC or projector fans.
The processor includes a 48-channel, low-latency, fault-tolerant digital audio bus over standard Cat5e cabling, supporting distances up to 100 meters between devices — and over 40 km with fiber media converters. Fully compatible with the Soundweb London family, the BLU-103 integrates seamlessly into larger 256-channel system architectures.

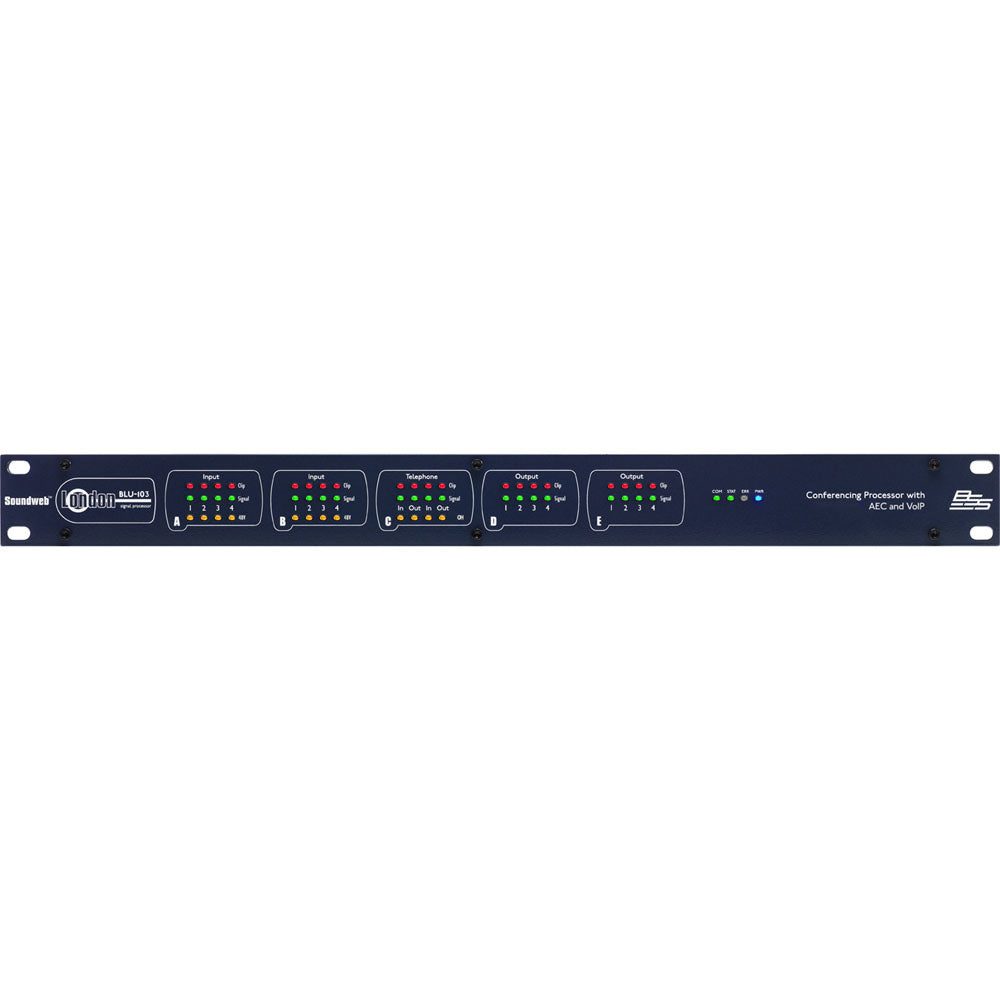

Front-panel LED indicators provide immediate access to phantom power, signal present, and clip status without requiring a PC. Twelve control inputs and six logic outputs allow GPIO integration with third-party control systems, while configuration, control, and monitoring are handled through HiQnet Audio Architect™ software.
The BLU-103 delivers the building blocks for a perfectly tailored conferencing and installed audio solution.
Key Features
-
8 analog mic/line inputs with 48V phantom power
-
8 analog outputs
-
Integrated VoIP port (dual SIP lines)
-
8 channels of advanced AEC processing
-
Automatic Gain Control and Noise Cancellation
-
48-channel digital audio bus
-
Front panel LED status indicators
-
Bi-directional device locate functionality
-
12 control inputs and 6 logic outputs
-
GPIO integration support
-
Compatible with Soundweb London systems
-
Configurable via HiQnet Audio Architect
| Specification | Details |
|---|---|
| Product Model | BLU-103 |
| Form Factor | 19" Rack Mount (1U) |
| Analog Inputs | 8 (Software configurable gain in 6dB steps up to +48dB) |
| Phantom Power | 48V per channel (software selectable) |
| AEC Processing | 8 independent AEC channels |
| AGC & Noise Cancellation | Included per AEC channel |
| Analog Outputs | 8 |
| Digital Inputs | None |
| Digital Outputs | None |
| VoIP Connection | 1 Port (Supports 2 SIP v2.0 lines) |
| Digital Audio Bus | 48-channel, low latency, fault tolerant |
| Maximum Bus Distance | 100m via Cat5e (40km+ with fiber converters) |
| Logic Processing | Yes |
| Control Inputs | 12 |
| Logic Outputs | 6 |
| GPIO Integration | Supported |
| RS-232 | Yes |
| LCD Display | No |
| Signal Processing Speed | 400 MHz |
| Configuration | Software-based |
| Network Compatibility | Soundweb London Family |
| HiQnet Support | Configuration, Control & Monitoring via HiQnet Audio Architect |
