Description

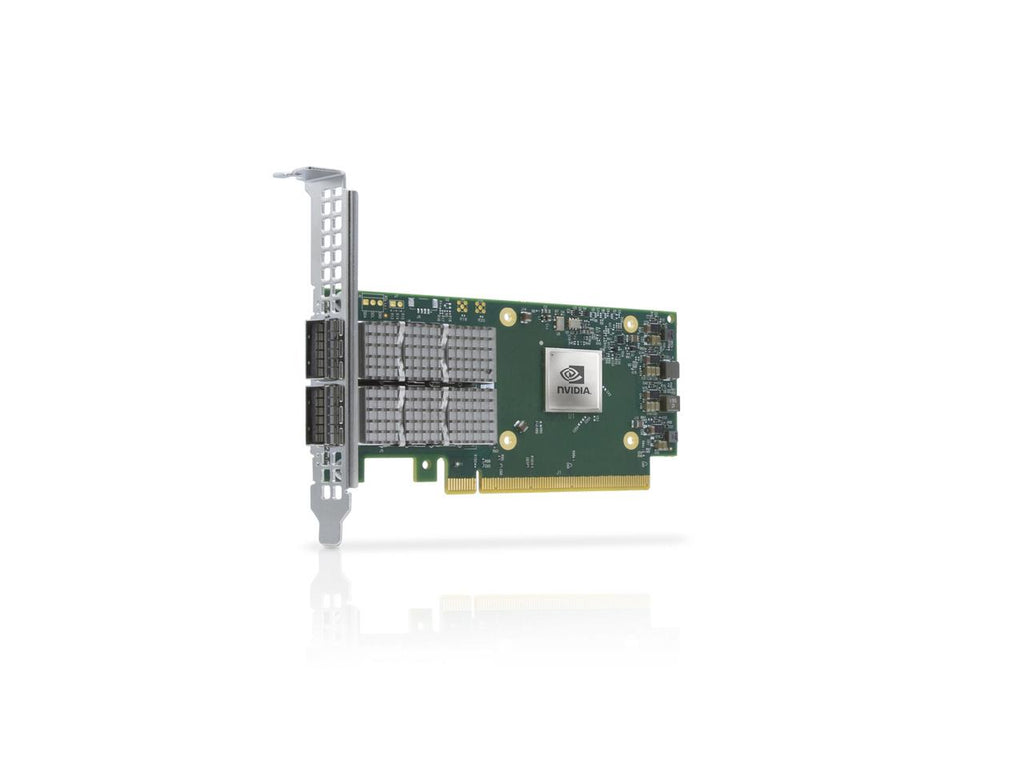

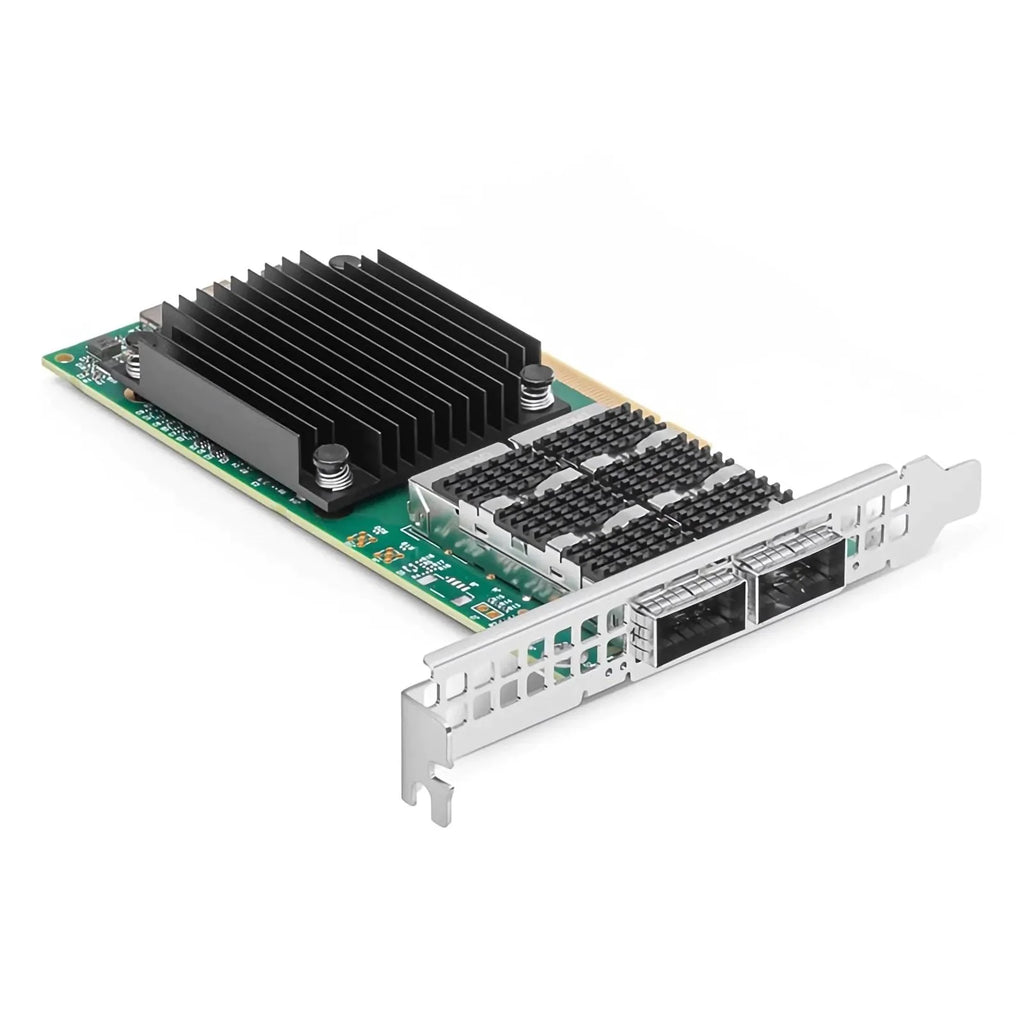

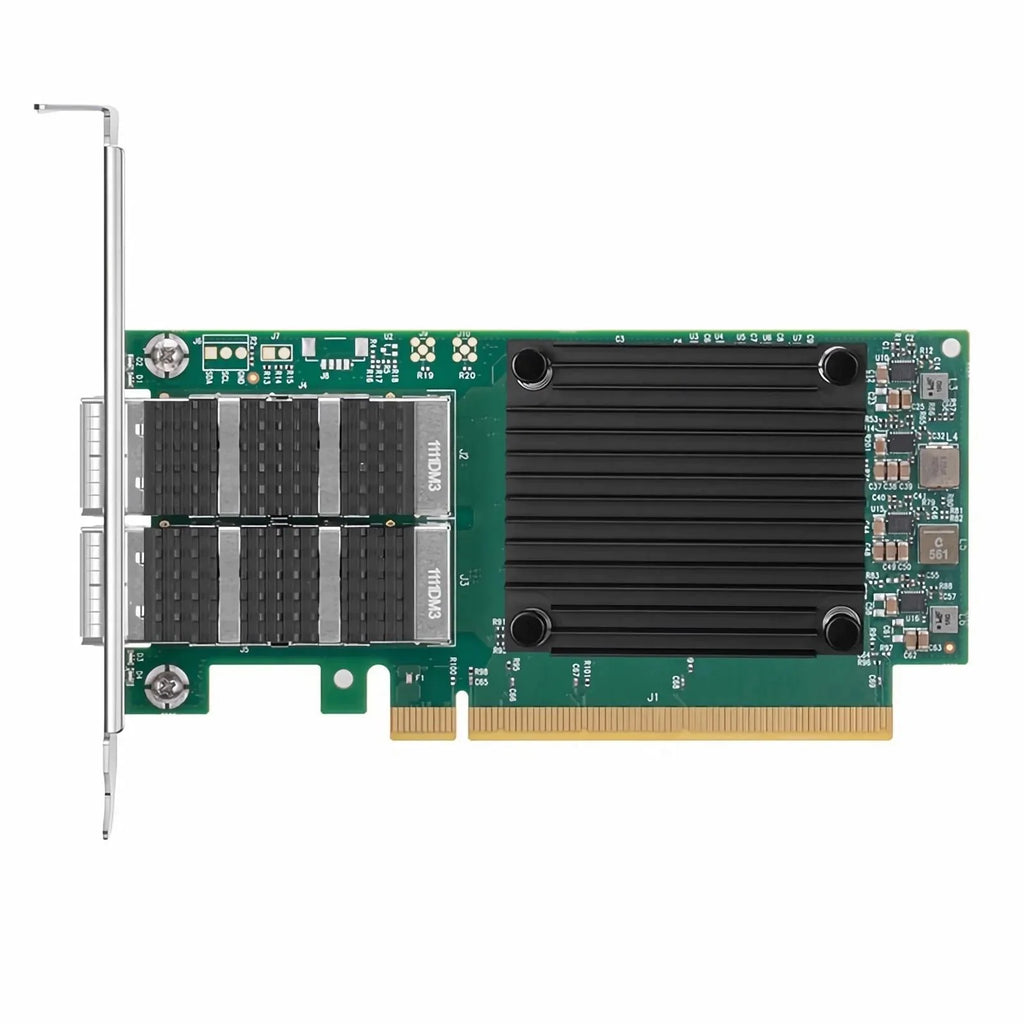

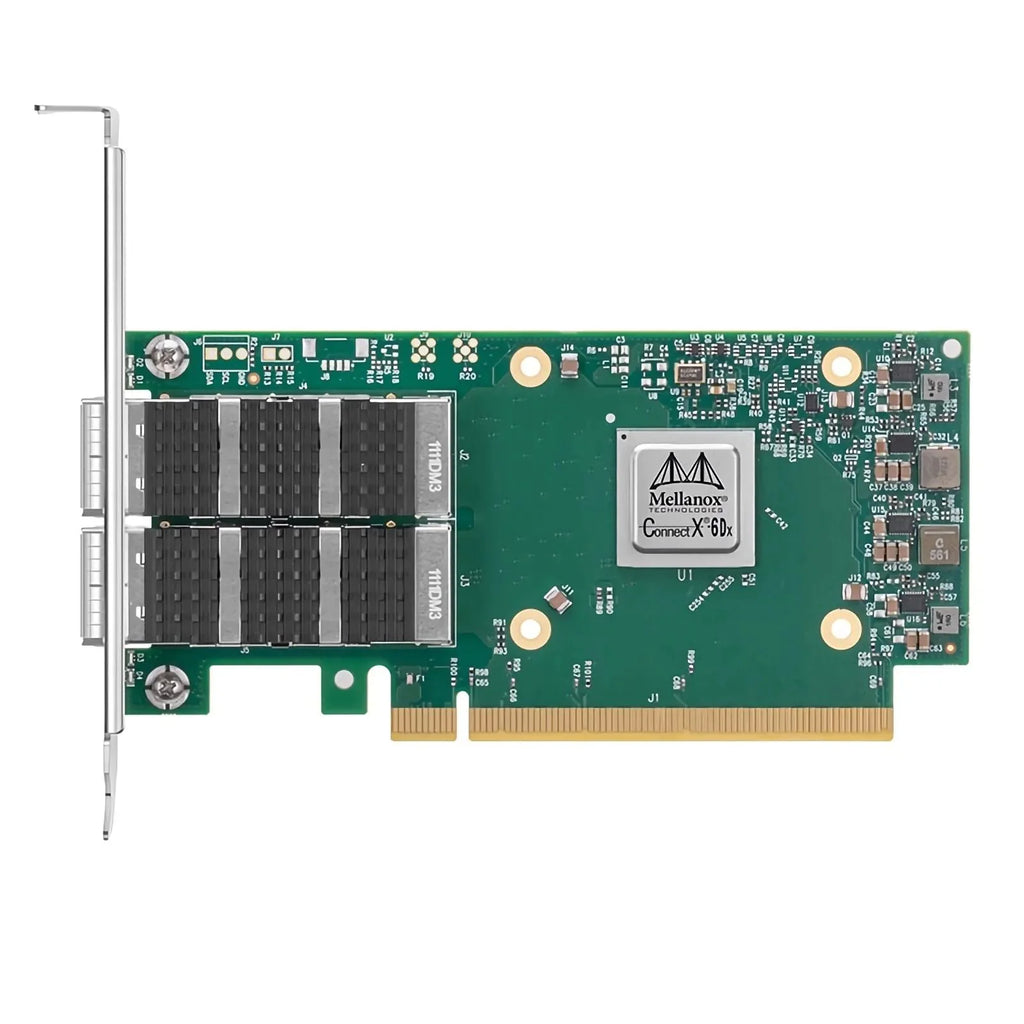

The NVIDIA Mellanox MCX623106AC-CDAT is a ConnectX-6 Dx EN Ethernet adapter with two QSFP56 ports. It supports 1, 10, 25, 40, 50, and 100Gb/s Ethernet and connects over PCIe Gen 4.0 x16, with backward compatibility to Gen 3.0. This model has both hardware crypto and Secure Boot enabled. It ships with a tall bracket and fits half-height, half-length (HHHL) slots.
ConnectX-6 Dx provides RoCE for low-latency RDMA, NVGRE and VXLAN overlay offloads, and Open vSwitch offload through ASAP². It also supports SR-IOV, NVMe over Fabrics target offloads, and IEEE 1588v2 PTP with an integrated hardware clock. Supported platforms include RHEL/CentOS, Windows, FreeBSD, and VMware.
Note: if a large share of 100Gb/s-or-higher bandwidth will carry IPsec traffic, review NVIDIA's product release notes for a possible bandwidth limitation on crypto-enabled cards.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | NVIDIA Mellanox |
| MPN | MCX623106AC-CDAT |
| NVIDIA SKU | 900-9X6AG-0086-ST0 |
| Product Type | Ethernet Adapter Card |
| Controller | ConnectX-6 Dx |
| Form Factor | HHHL (half-height, half-length) |
| Dimensions | 5.59 x 2.71 in (142.00 x 68.90mm) |
| Ports | 2 x QSFP56 (copper and optical) |
| Ethernet Data Rate | 1/10/25/40/50/100Gb/s |
| Supported Protocols | 100GBASE-CR4/KR4/SR4/CR2/KR2/SR2, 50GBASE-R2/R4, 40GBASE-CR4/KR4/SR4/LR4/ER4/R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-SR/LR/ER/CX4/CR/KR, 1000BASE-CX/KX, SGMII |
| Host Interface | PCIe Gen 3.0/4.0, 16.0GT/s x16 (2.0 and 1.1 compatible) |
| Crypto | Enabled |
| Secure Boot | Enabled |
| Bracket | Tall bracket |
| Key Features | RoCE, ASAP² OVS offload, SR-IOV, NVGRE/VXLAN offload, NVMe-oF target offload, IEEE 1588v2 PTP, jumbo frames (9.6KB) |
| Typical Power (passive cables) | 18.7W (PCIe Gen 3.0); 19.52W (PCIe Gen 4.0) |
| Maximum Power (passive cables) | 25.28W (PCIe Gen 3.0); 26.64W (PCIe Gen 4.0) |
| Max Power per QSFP56 Port | 5W |
| Airflow (heatsink to port, 55°C) | 550LFM passive cable; 700LFM active 2.5W cable |
| Operating Temperature | 0°C to 55°C |
| Non-Operating Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 85% RH |
| Operating Altitude | 3050m |
| Safety | CB, cTUVus, CE |
| EMC | CE, FCC, VCCI, ICES, RCM |
| Compliance | RoHS |
