Description

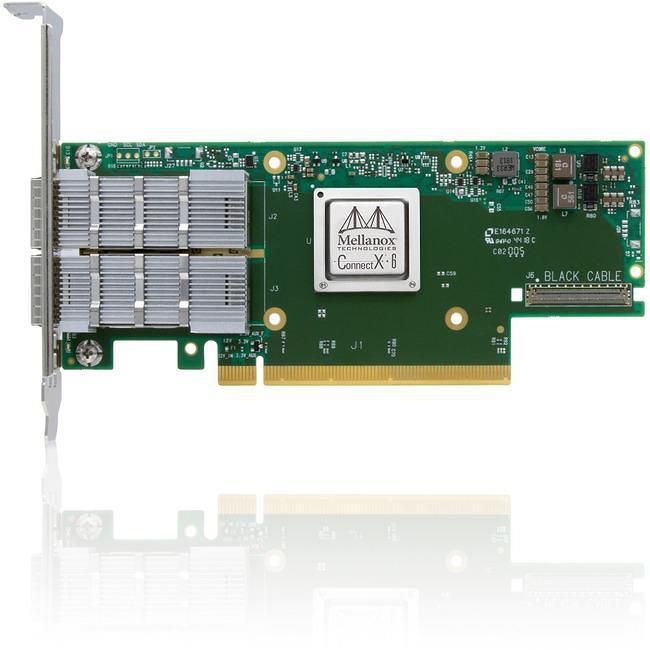

The NVIDIA Mellanox MCX653106A-HDAT is a ConnectX-6 adapter card that supports both InfiniBand and Ethernet. It offers two QSFP56 ports for HDR 200Gb/s InfiniBand and 200GbE. On the InfiniBand side it supports SDR, DDR, QDR, FDR, EDR, HDR100 and HDR rates. On the Ethernet side it supports 1, 10, 25, 40, 50, 100 and 200Gb/s. The card uses a PCIe x16 edge connector and is compatible with PCIe Gen 3.0 and Gen 4.0. It can deliver up to 200Gb/s in a PCIe Gen 4.0 slot, or up to 100Gb/s in a Gen 3.0 slot.
Built on the MT28908A0-XCCF-HVM adapter IC, this card measures 167.65mm x 68.90mm in a half-height, half-length form factor and ships with a tall bracket. Typical power with passive cables is 23.6W, and each QSFP56 port can supply up to 5W to attached modules. Install the card in a PCIe slot that can supply the required power and airflow.
Product Highlights
- ConnectX-6 InfiniBand/Ethernet adapter card
- Dual-port QSFP56, HDR 200Gb/s InfiniBand and 200GbE
- InfiniBand SDR/DDR/QDR/FDR/EDR/HDR100/HDR support
- Ethernet data rates of 1/10/25/40/50/100/200Gb/s
- PCIe Gen 3.0/4.0 x16 (8.0GT/s / 16.0GT/s)
- PCIe half-height, half-length form factor with tall bracket
- 23.6W typical power with passive cables
Technical Specifications
| Specification | Details |
|---|---|
| Brand | NVIDIA Mellanox |
| Manufacturer Part Number | MCX653106A-HDAT |
| NVIDIA SKU | 900-9X6AF-0058-ST1 |
| Product Type | Network Adapter Card |
| Product Series | ConnectX-6 |
| Ports | 2x QSFP56 (copper and optical) |
| InfiniBand Data Rates | SDR / DDR / QDR / FDR / EDR / HDR100 / HDR |
| Ethernet Data Rates | 1/10/25/40/50/100/200Gb/s |
| InfiniBand Protocol | IBTA v1.4a |
| Ethernet Protocols | 200GBASE-CR4, 200GBASE-KR4, 200GBASE-SR4, 100GBASE-CR4, 100GBASE-CR2, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
| Host Interface | PCIe Gen 3.0/4.0 x16, SERDES @ 8.0GT/s / 16.0GT/s (2.0 and 1.1 compatible) |
| Form Factor | PCIe Half Height, Half Length |
| Dimensions | 167.65mm x 68.90mm (6.6in. x 2.71in.) |
| Bracket | Tall bracket |
| Adapter IC | MT28908A0-XCCF-HVM |
| Voltage | 3.3Aux (100mA max current) |
| Typical Power (Passive Cables) | 23.6W |
| Max Power per QSFP56 Port | 5W |
| Airflow (Passive Cables) | 400 LFM at 55°C (heatsink to port); 300 LFM at 35°C (port to heatsink) |
| Operating Temperature | 0°C to 55°C |
| Non-Operating Temperature | -40°C to 70°C |
| Humidity | 10% to 85% operating; 10% to 90% non-operating |
| Operating Altitude | 3050m |
| Safety | CB / cTUVus / CE |
| EMC | CE / FCC / VCCI / ICES / RCM / KC |
| RoHS | RoHS compliant |
