Description

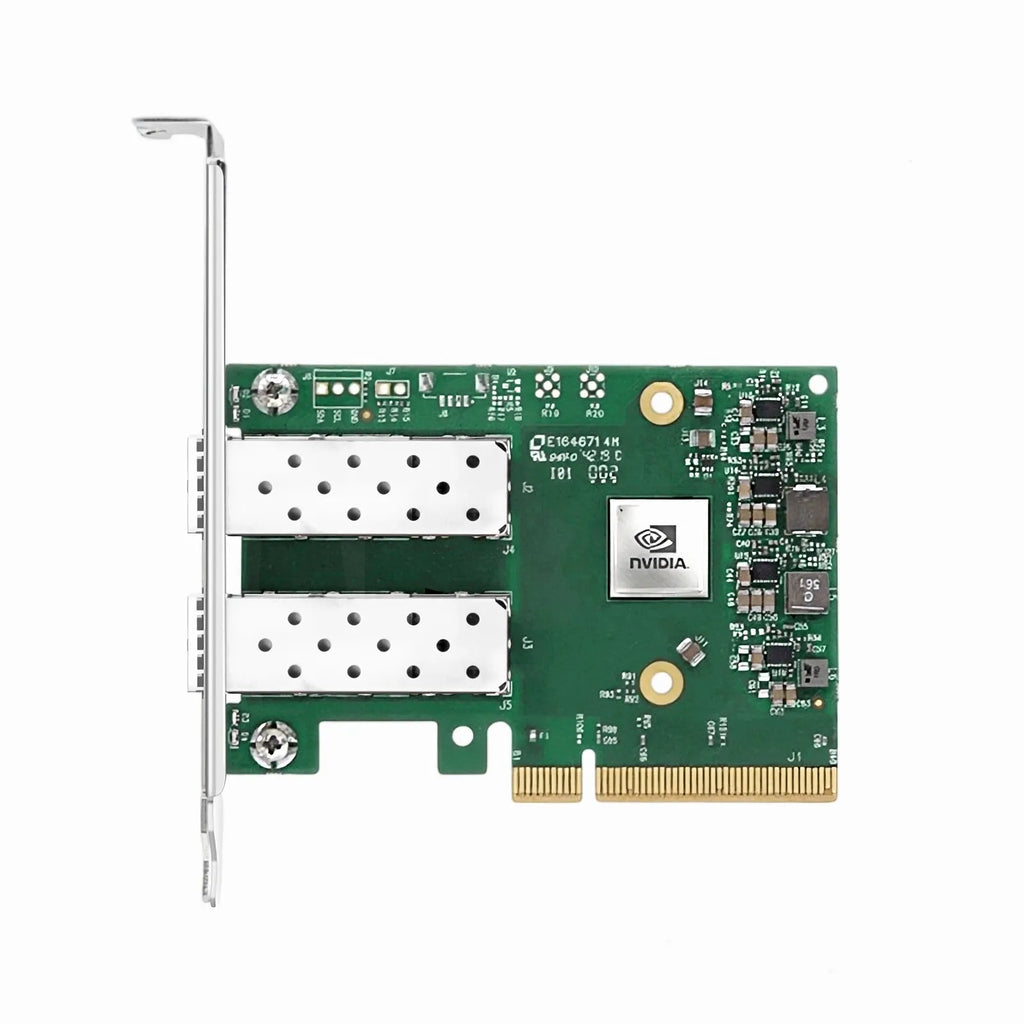

The NVIDIA Mellanox MCX631102AS-ADAT is a ConnectX-6 Lx Ethernet adapter in a low-profile PCIe HHHL form factor. It has two SFP28 ports supporting 1, 10, and 25Gb/s Ethernet and connects over PCIe Gen 4.0 x8. Secure Boot is enabled and crypto (IPsec offload) is disabled on this model. It ships with a tall bracket.
ConnectX-6 Lx provides RoCE for low-latency RDMA over Layer 2 and Layer 3 networks, NVGRE and VXLAN overlay offloads, Open vSwitch offload through ASAP², and SR-IOV virtualization.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | NVIDIA Mellanox |
| MPN | MCX631102AS-ADAT |
| NVIDIA SKU | 900-9X662-0073-ST0 |
| Product Type | Ethernet Adapter Card |
| Controller | ConnectX-6 Lx (MT28942A0-YCCF-AE) |
| Form Factor | PCIe HHHL, 3.79 x 2.71 in (96.30 x 68.90mm) |
| Ports | 2 x SFP28 (copper and optical) |
| Ethernet Data Rate | 1/10/25Gb/s |
| Host Interface | PCIe Gen 3.0/4.0, 16.0GT/s x8 |
| Crypto (IPsec Offload) | Disabled |
| Secure Boot | Enabled |
| Bracket | Tall bracket |
| Key Features | RoCE, ASAP² OVS offload, SR-IOV, NVGRE/VXLAN offload, IEEE 1588v2, jumbo frames (9.6KB) |
| Typical Power (passive cables) | 10.73W (Gen 3.0); 11.53W (Gen 4.0) |
| Maximum Power (passive cables) | 12.14W (Gen 3.0); 12.94W (Gen 4.0) |
| Airflow (heatsink to port, 55°C) | 300LFM passive; 350LFM 0.8W active; 400LFM 1.5W active |
| Operating Temperature | 0°C to 55°C |
| Non-Operating Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 85% RH |
| Operating Altitude | 3050m |
| Safety / EMC | CB, cTUVus, CE / CE, FCC, VCCI, ICES, RCM |
| Compliance | RoHS |
