Description

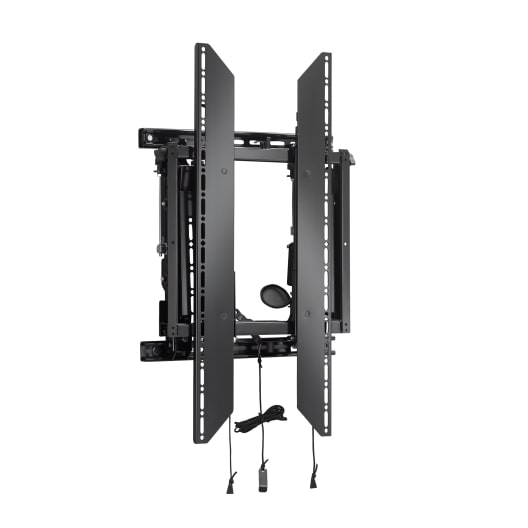

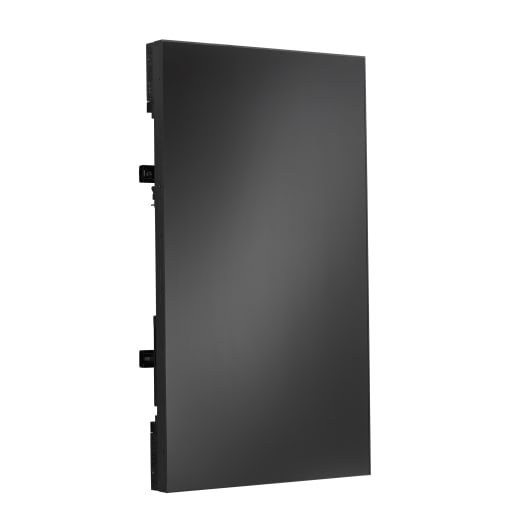

The Chief ConnexSys Portrait Video Wall Mounting System (LVSXUP) is engineered to simplify large-scale video wall installations while delivering precise alignment, long-term rigidity, and streamlined serviceability. Designed for portrait-oriented displays, this system ships without rails, allowing installers to source standard strut channel locally and efficiently connect multiple mounts on a single rail.
ConnexSys technology enables each row of the video wall to be leveled once, reducing installation time while ensuring consistent alignment across displays. Micro-adjustment controls provide fine-tuned positioning after installation, while built-in service access allows displays to extend forward for maintenance without disrupting adjacent screens. Ideal for commercial environments, LVSXUP supports large-format displays and demanding video wall configurations with professional-grade reliability.
| Specification | Details |
|---|---|
| Product Type | Video wall portrait mounting system |
| Orientation | Portrait |
| Number of Displays | Single display (multi-display capable with strut) |
| Typical Screen Size | 40" – 80" (1016 – 2032 mm) |
| Weight Capacity | Supports displays up to 150 lb (68 kg) |
| Mounting Application | Wall-mounted |
| VESA Compatibility | 200 × 100 mm to 800 × 400 mm |
| Adjustability | Extension, micro-adjustable, height adjustable, lateral shift |
| Tilt Range | +4° / −2.5° |
| Depth | 10.41 cm (4.1 in) |
| Minimum Depth | 101.6 mm (4 in) |
| Width | 49.53 cm (19.5 in) |
| Height | 82.55 cm (32.5 in) |
| Color | Black |
| With Rails | No |
| Special Features | Multi-display capable using locally sourced strut |
| UPC | 841872161181 |
| Compliance | UL Listed |
