Description

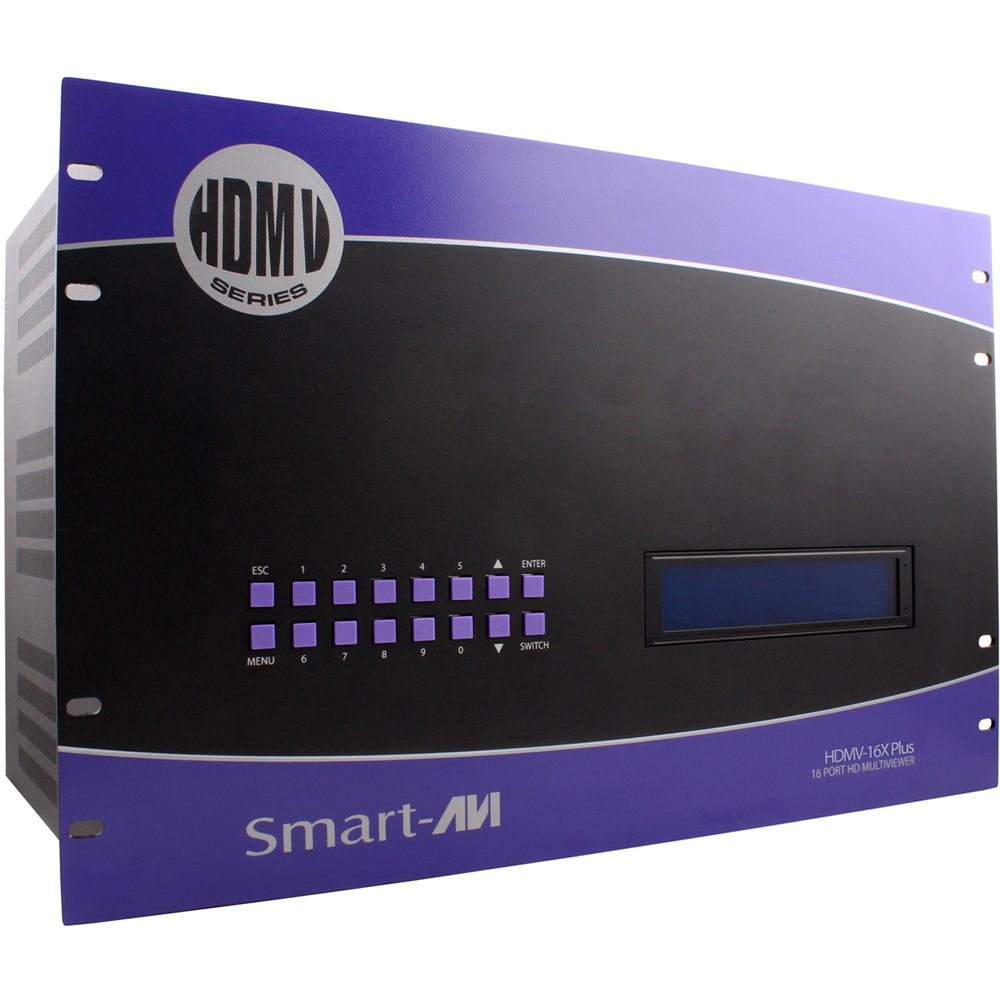

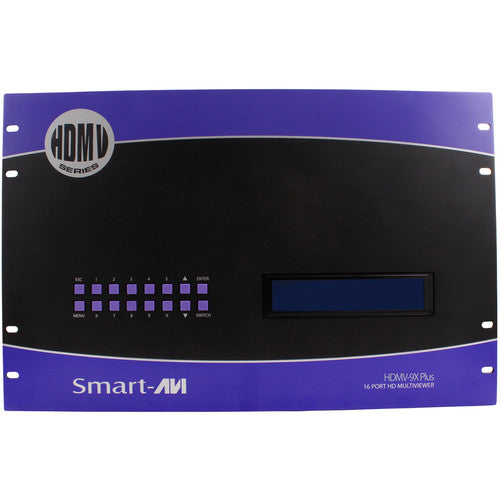

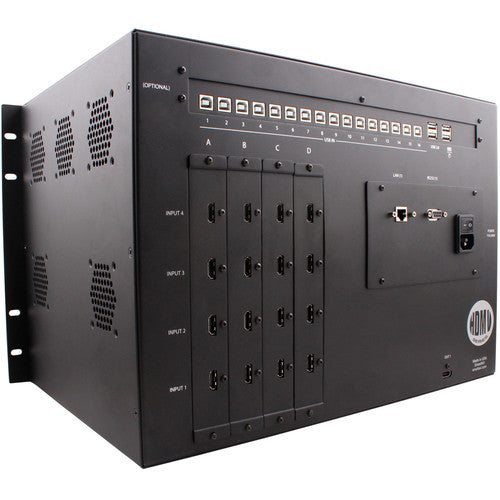

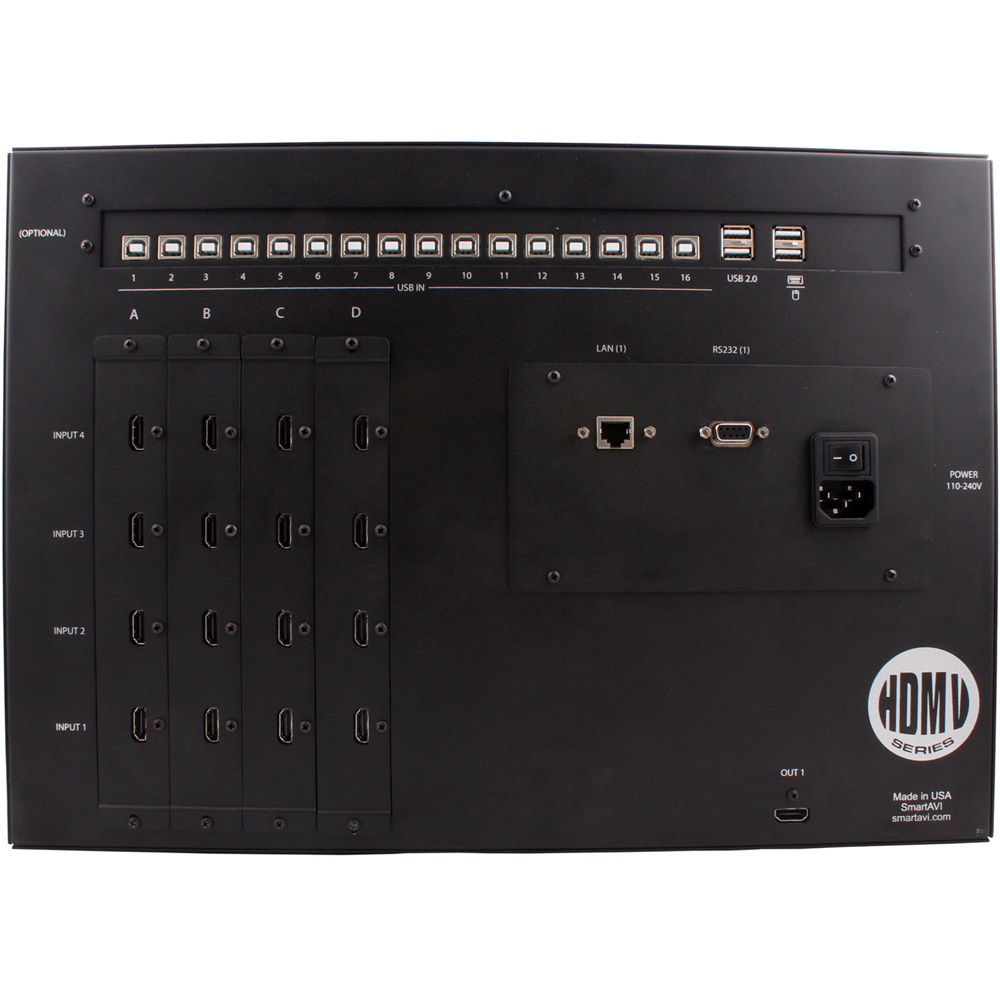

The SmartAVI SM-HDMV16X-PLUS is a powerful 16-port HDMI multiviewer with integrated KVM control, designed for environments that demand real-time monitoring and centralized management of multiple systems. This solution enables operators to view and control up to sixteen computers simultaneously on a single display, eliminating the need to switch between sources and significantly improving operational efficiency.
Built for mission-critical applications such as control rooms, broadcasting, industrial monitoring, and security operations, the SM-HDMV16X-PLUS delivers crisp high-definition video with flexible display configurations. Users can seamlessly switch between full-screen, dual-view, quad-view, or 16-view layouts, providing complete visibility and control at all times.

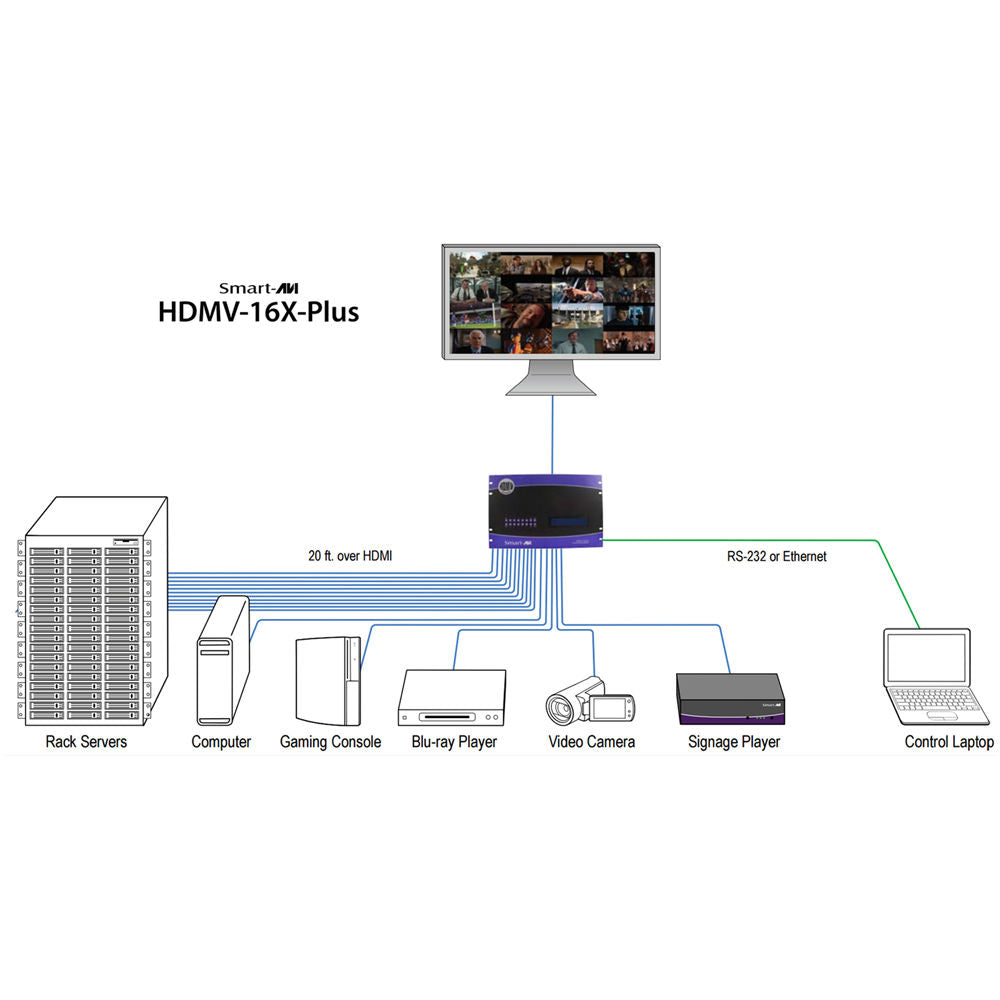

With support for keyboard and mouse emulation, users can interact with connected systems directly from a single workstation. The intuitive on-screen display and multiple control options including front panel buttons, hotkeys, RS-232, and optional Ethernet ensure easy deployment and operation. Designed for reliability and performance, this multiviewer is an ideal solution for organizations that require scalable, centralized monitoring and control.
| Feature | Specification |
|---|---|
| Product Type | HDMI Multiviewer with Integrated KVM Control |
| Number of Inputs | 16 HDMI inputs |
| Number of Outputs | 1 HDMI output |
| Supported Video Resolutions | Up to 1920 x 1200 (PC), 1080p (HDTV) |
| Video Bandwidth | Single-link 340 MHz (10.2 Gbps) |
| HDMI Standard | HDMI 1.4 compliant |
| HDCP Compliance | Supports HDCP 1.0 and 2.0 |
| Multiview Modes | Full-screen, Dual-view, Quad-view, 16-view |
| KVM Support | Full keyboard and mouse control for all connected systems |
| USB Support | USB 2.0, 1.1, and 1.0 compatibility |
| Control Methods | Front panel buttons, hotkeys, RS-232, On-Screen Display, optional Ethernet |
| On-Screen Display | Yes, for configuration and switching |
| EDID Management | Supported for display compatibility control |
| Audio Support | 3.5 mm stereo input |
| Output Distance | HDMI output up to 20 feet |
| Input Compatibility | HDMI and DVI-D (via adapter) |
| Power Requirements | Internal 100–240 VAC |
| Operating Temperature | -5°C to 35°C (23°F to 95°F) |
| Storage Temperature | -20°C to 85°C (-4°F to 185°F) |
| Humidity | Up to 95% non-condensing |
| Compliance | UL, CE, CSA, CEC, RoHS |
| Form Factor | Rackmount-capable chassis |
| Dimensions | 12" H x 12" D x 17.5" W |
| Weight | 22 lbs |
