Description
The Kramer CP-AOCH/PF-230 is a pure-fiber, armored 4K HDMI active optical cable engineered for superior durability and long-distance signal transmission. Designed for medical environments and applications exposed to sensitive EMI, this heavy-duty AOC delivers uncompromised 4K@60Hz (4:4:4) performance across an extended 230-foot range.
Built from an 8-strand multimode fiber core and reinforced with a stainless-steel corrugated tube and Kevlar, the cable withstands demanding installation conditions. The plenum-rated 4.0mm jacket, impact-resistant connector housings, and K-Lock™ 15-lb restraining-force HDMI connectors ensure long-term reliability and secure connections.
The CP-AOCH/PF-230 supports 18 Gbps data rate, EDID/HDCP compliance, Deep Color, x.v.Color™, and high-resolution audio formats including Dolby® TrueHD and DTS-HD Master Audio®. With plug-and-play operation and no external power needed at the source, this cable is ideal for professional AV, medical imaging, control rooms, broadcasting, and mission-critical installations.
| Category | Details |
|---|---|
| Resolution Support | Up to 4K @ 60Hz 4:4:4 (3840×2160 / 4096×2160) |
| Data Rate | Up to 18 Gbps |
| HDMI Compliance | HDCP & EDID |
| Audio Support | Dolby® Digital Plus, Dolby® TrueHD, DTS-HD Master Audio®, DVD Audio, SA-CD |
| Connector – Source End | HDMI Type A, 24K gold-plated |

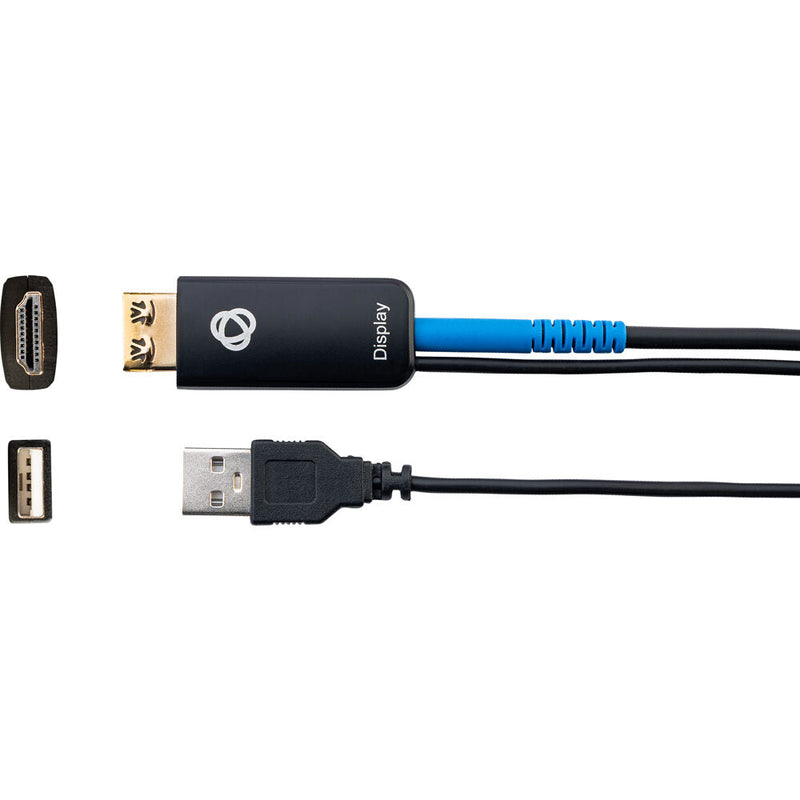

| Connector – Display End | HDMI Type A, 24K gold-plated with K-Lock™; USB-A pigtail for optional power |
| Cable Construction | 8×MM OM3 fiber with aluminum-shielded PCBA |
| Jacket Material / Rating | PVC, Plenum rated |
| Cable Diameter | 4.0 ± 0.3 mm |
| Crush Resistance | 500N long-term / 2000N short-term |
| Tensile Strength | 8kg long-term / 15kg short-term |
| Bending Radius | 20 mm minimum |
| Strain Relief Pulling Force | Up to 12 kg |
| Power Requirements | No external power at source; optional USB power at display |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | −40°C to +70°C |
| Humidity | 10%–80% |
| Regulatory | CE, FCC, TUV for UL 62368-1:2019; CSA C22.2 No. 62368-1:19; RoHS |
