Description
The Kramer CP-AOCH/PF-262 is a pure-fiber, armored 4K HDMI Active Optical Cable engineered for ultra-reliable performance in demanding environments such as medical facilities, high-interference locations, and long-distance AV installations. Built with an internal stainless-steel corrugated tube, Kevlar reinforcement, and a plenum-rated jacket, this 262-ft AOC cable delivers exceptional durability while maintaining lightweight flexibility for smooth deployments.
Supporting 4K@60Hz (4:4:4) resolutions and up to 18 Gbps bandwidth, it ensures pristine image quality over long runs without signal boosters or external power (display end offers optional USB power). Gold-plated HDMI connectors, K-Lock retention, and robust weather-resistant connector covers provide maximum reliability. Ideal for mission-critical AV systems requiring long reach, high-speed data transmission, and strong protection against electromagnetic interference.
| Category | Details |
|---|---|
| Video Resolution | Up to 4K@60Hz 4:4:4 (3840×2160 & 4096×2160) |
| Data Rate | Up to 18 Gbps |
| HDMI Compliance | HDCP & EDID support |
| Audio Support | Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DVD Audio, SA-CD |

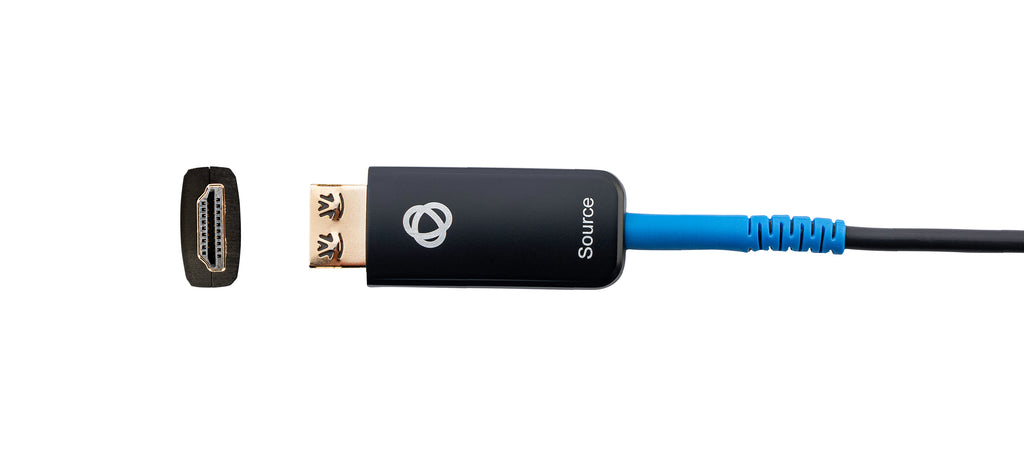

| Connector – Source End | HDMI Type-A male, 24K gold-plated |

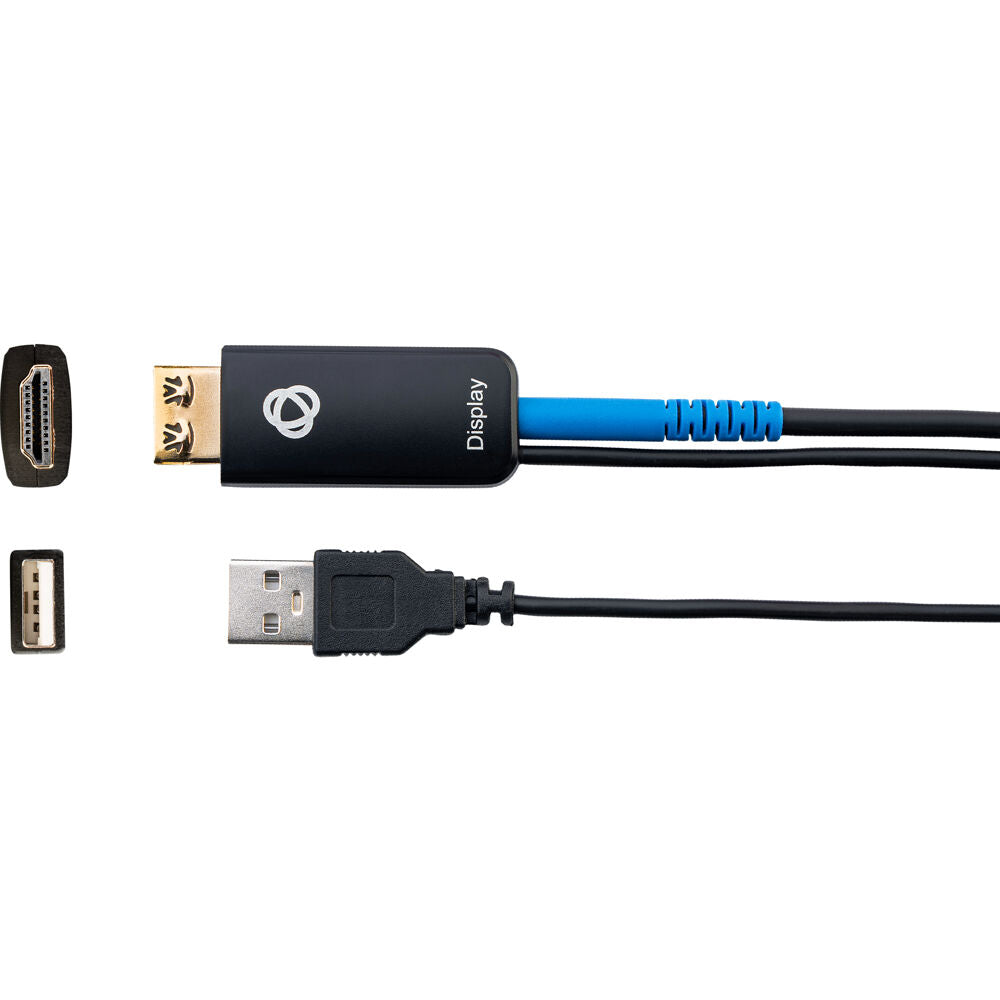

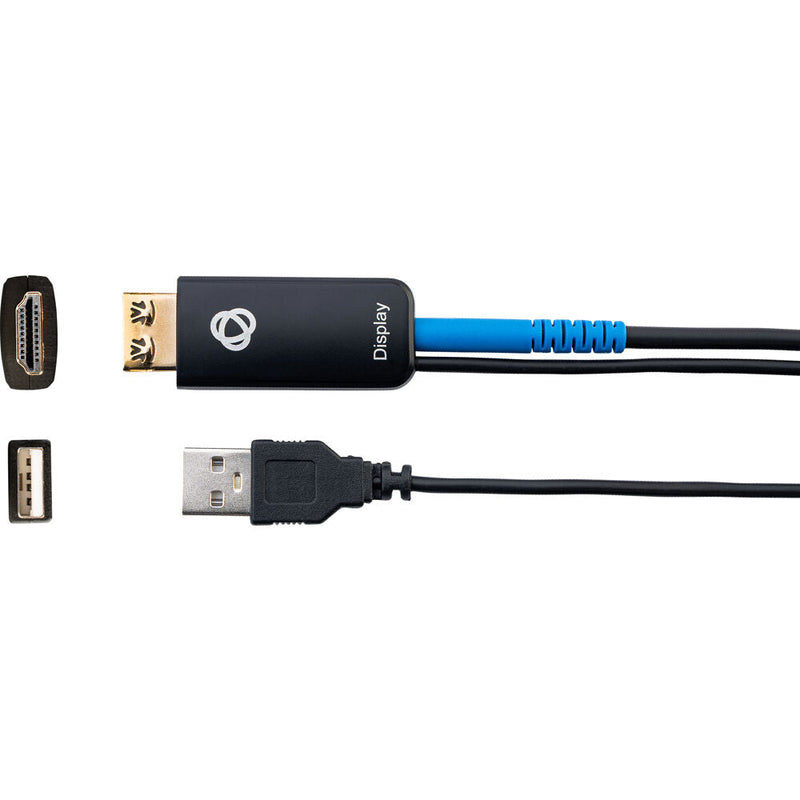

| Connector – Display End | HDMI Type-A male, 24K gold-plated with K-Lock; optional USB-A power pigtail |
| Cable Construction | 8× MM OM3 fiber in stainless-steel armored tube; plastic shell with aluminum shield |
| Jacket | PVC plenum-rated, black, 4.0 ± 0.3 mm diameter |
| Durability Ratings | Long-term crush: 500N (50 kg); Short-term crush: 2000N (200 kg) |
| Tensile Strength | Long-term: 8 kg; Short-term: 15 kg |
| Bending Radius | 20 mm minimum |
| Strain Relief Pulling Force | Up to 12 kg |
| Power Requirements | No external power for source; USB-A may be required at display end |
| Environmental Conditions | Operating: 0–50°C (32–122°F); Storage: −40–70°C (−40–158°F); Humidity: 10–80% |
| Regulatory Compliance | CE, FCC, TUV, UL 62368-1:2019, CSA C22.2 No. 62368-1:19, RoHS |
