Description
The Kramer CP-AOCH/PF-295 is a high-performance pure-fiber armored HDMI Active Optical Cable engineered for long-distance 4K signal transmission in demanding professional environments. Designed with medical-grade durability and robust EMI immunity, this cable delivers full 4K@60Hz (4:4:4) resolution with an ultra-stable 18 Gbps bandwidth over an extended 295-foot run.
Its pure-fiber internal architecture is protected by a stainless-steel corrugated tube and Kevlar reinforcement, providing exceptional pull resistance, crush protection, and long-term reliability. Premium 24K gold-plated connectors ensure optimal signal integrity, while K-Lock™ restraining force enhances secure connections during installation.
Ideal for AV integrators, commercial deployments, medical systems, and high-EMI applications, the CP-AOCH/PF-295 delivers plug-and-play simplicity, deep color support, HDCP/EDID compliance, and premium audio formats including Dolby® TrueHD and DTS-HD Master Audio®. No external power is required from the source end—simply connect and enjoy uncompromised long-distance HDMI performance.
| Category | Details |
|---|---|
| Video Resolution | Up to 4K @ 60Hz (4:4:4), 3840×2160 & 4096×2160 |
| Data Rate | Up to 18 Gbps |
| HDMI Compliance | HDCP & EDID supported |
| Audio Support | Dolby® Digital Plus, Dolby® TrueHD, DTS-HD Master Audio®, DVD-Audio, SA-CD |
| Connector (Source End) | Male HDMI Type A, 24K gold-plated |

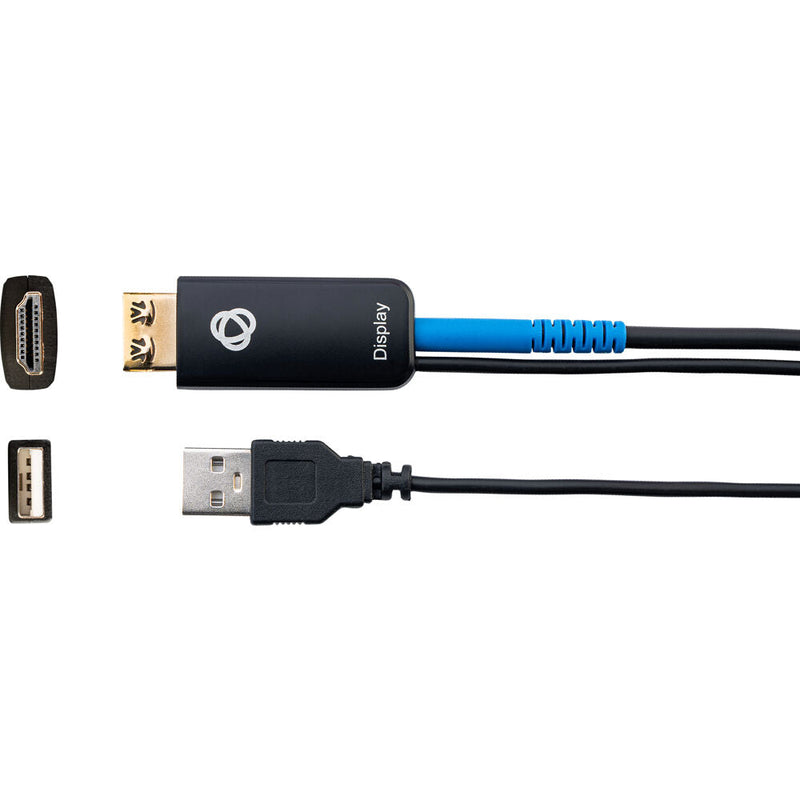

| Connector (Display End) | Male HDMI Type A, 24K gold-plated with K-Lock™; USB Type-A pigtail for optional power |
| Cable Material | Plastic shell with aluminum shield over PCBA |
| Cable Construction | 8x MM OM3 fiber, armored with stainless-steel corrugated tube + Kevlar |
| Jacket | PVC, plenum-rated, black; Diameter 4.0 ± 0.3 mm |
| Crush Resistance | Long-term: 500N (50kg); Short-term: 2000N (200kg) |
| Tensile Strength | Long-term: 80N (8kg); Short-term: 150N (15kg) |
| Strain Relief Pulling Force | 12kg max |
| Power Requirements | No external power needed from source; display end may require USB power |
| Operating Temperature | 0°C to +50°C (32°F to +122°F) |
| Storage Temperature | −40°C to +70°C (−40°F to +158°F) |
| Humidity | 10%–80% |
| Regulatory Compliance | CE, FCC, TUV, UL 62368-1:2019, CSA C22.2 No. 62368-1:19, RoHS |
