Description

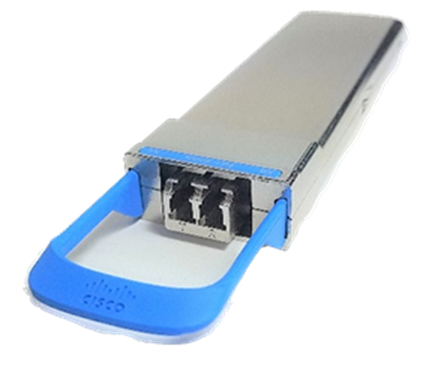

The Cisco CPAK-100G-LR4 is a high-performance 100 Gigabit Ethernet optical transceiver designed for long-reach connectivity over single-mode fiber. Using four LAN-WDM wavelengths, this CPAK module delivers reliable 100G throughput for data center, service provider, and core networking environments.
Built in Cisco’s compact CPAK form factor, the CPAK-100G-LR4 provides higher port density and lower power consumption compared to traditional CFP-based optics. It supports distances of up to 10 kilometers and integrates digital optical monitoring (DOM) for enhanced visibility and operational control.
Ideal for Cisco high-end switches and routers, this module ensures scalable, standards-compliant 100G connectivity for mission-critical network deployments.
| Specification | Details |
|---|---|
| Manufacturer | Cisco |
| Model | CPAK-100G-LR4 |
| Form Factor | CPAK |
| Data Rate | 100 Gigabit Ethernet |
| Standard | 100GBASE-LR4 |
| Fiber Type | Single-Mode Fiber (SMF) |
| Maximum Distance | Up to 10 km |
| Wavelength | 1310 nm (LAN-WDM, 4 lanes) |
| Connector Type | SC (LC supported on later revisions via adapter) |
| Transmission Mode | Duplex |
| Optical Monitoring | Digital Optical Monitoring (DOM) |
| Hot Swappable | Yes |
| Operating Temperature | 0°C to 70°C |
| Compatibility | Cisco ASR, NCS, CRS-X, Nexus 7000/7700, ONS platforms |
| Application | Data center, core, aggregation, service provider networks |
