Description
The Crestron CCC-120-Z Collab Compute is a high-performance, AI-ready conferencing solution engineered for modern Zoom Rooms environments. Powered by the Intel Core Ultra 7 processor, it delivers exceptional processing capability to support advanced video collaboration, real-time enhancements, and intelligent meeting experiences.
Designed for scalability and flexibility, the CCC-120-Z supports up to three displays and multiple USB-connected audio and video peripherals, making it ideal for medium to large meeting spaces. Its robust BYOD capabilities allow users to seamlessly present and collaborate using their own devices, while maintaining access to in-room conferencing hardware.
With enterprise-grade security, integrated network management via XiO Cloud, and support for PoE+ touch screen connectivity, the CCC-120-Z ensures streamlined deployment, centralized control, and reliable performance across enterprise, education, healthcare, and government environments.
| Specification | Details |
|---|---|
| Processor | Intel Core Ultra 7 155H |
| Memory | 32 GB Dual Channel DDR5 SODIMM |
| Storage | 256 GB SSD |
| Graphics | Intel ARC Graphics |
| Operating System | Windows 11 Enterprise IoT Edition |
| Display Support | Supports up to three displays (not included) |
| USB Device Support | Supports up to four USB audio/video devices |

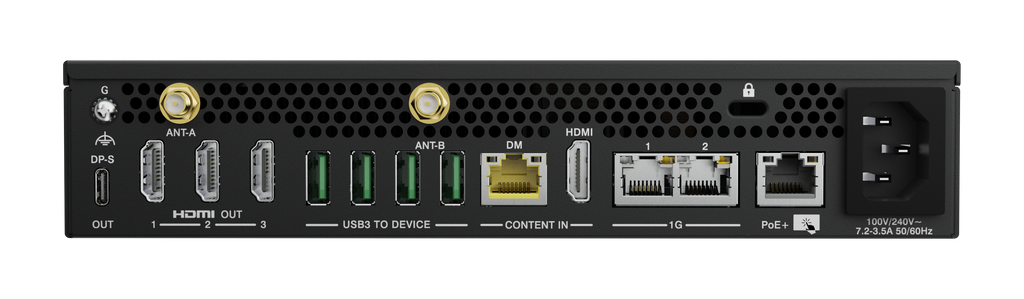

| USB Ports (Rear) | 5 x USB 3.0 Type-A (10 Gbps) |
| USB Ports (Front) | 2 x USB 2.0 Type-A |
| USB-C Port | 1 x USB-C 3.2 (Gen 2) with DisplayPort Alt Mode |
| HDMI Outputs | 3 x HDMI 2.0b |
| HDMI Input | 1 x HDMI 2.0b (Content In) |
| Network Ports | 2 x 1Gb Ethernet (RJ-45), 1 x PoE+ (PSE) |
| Wireless Connectivity | Wi-Fi 7 (Intel BE200, 2x2 MIMO), Bluetooth 5.4 |
| DM Input | 1 x RJ-45 DM input (HDCP 2.3 compliant) |
| Touch Screen Support | Compatible with TS(W)-1080-UC series via PoE+ |
| BYOD Features | HDMI and USB-C content sharing, conferencing support |
| Power Requirements | 100–240VAC, 105W idle / 162W max |
| Heat Dissipation | Up to 553 BTU/hr |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Humidity | 10% to 95% RH (non-condensing) |
| Construction | Metal chassis, fan-cooled, vented design |
| Mounting Options | Freestanding or optional wall/table mount bracket |
| Dimensions (H x W x D) | 1.72 x 8.67 x 15.32 in |
| Weight | 8.06 lb (3.66 kg) |
| Compliance | FCC Class B, IC Class B, CE |
| Model | M202504001 |
