Description
The Crestron Flex UC-MX70-NC-T is an advanced tabletop conferencing system engineered for large meeting rooms, delivering a seamless Microsoft Teams Rooms experience with enterprise-grade performance, reliability, and scalability. Designed for modern collaboration environments, this solution combines a powerful UC engine, intuitive touch interface, and high-quality audio to enable efficient, professional meetings.

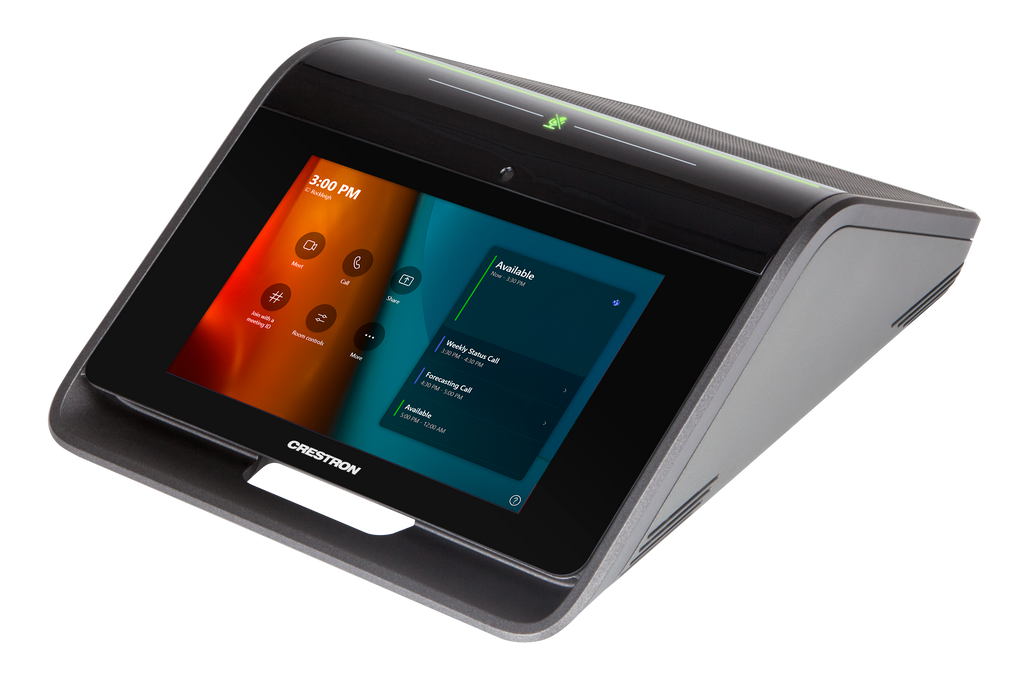

Featuring a 7-inch HD touch screen with native Microsoft Teams Rooms interface, users benefit from one-touch meeting joins and streamlined meeting control. The integrated speakerphone with advanced acoustic echo cancellation, automatic gain control, and noise reduction ensures crystal-clear, full-duplex audio across the room.

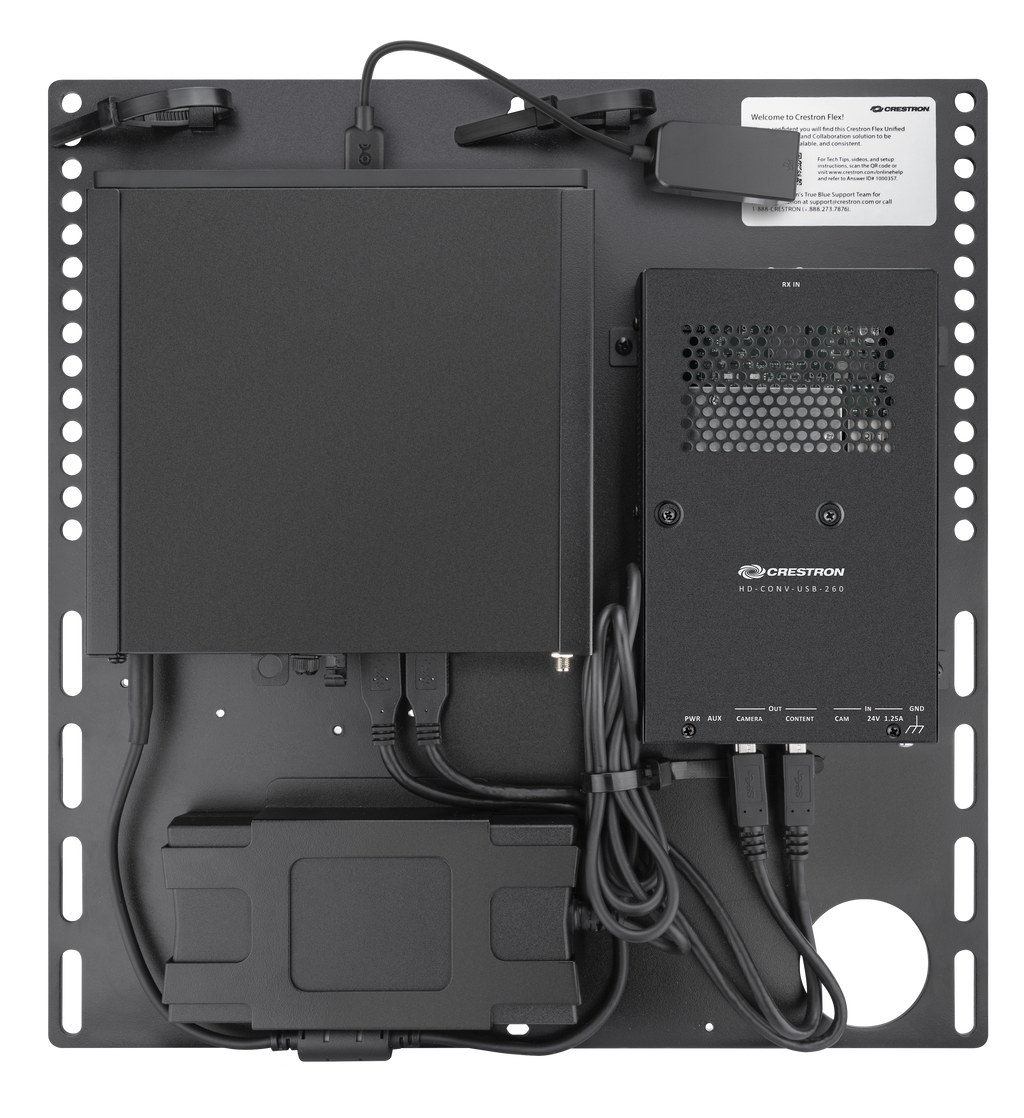

The system includes a preassembled UC bracket with a high-performance mini PC, simplifying deployment and reducing installation time. With support for single or dual displays, flexible mounting options, and Bring Your Own Device (BYOD) capability, the UC-MX70-NC-T adapts to a wide range of enterprise use cases.
Built for secure, large-scale deployments, the system supports enterprise network protocols and centralized management via XiO Cloud, enabling IT teams to monitor, provision, and manage devices efficiently. Ideal for corporate, education, healthcare, and government environments, this solution delivers consistent, high-quality collaboration at scale.
| Specification | Details |
|---|---|
| System Type | Advanced tabletop conferencing system for Microsoft Teams Rooms |
| Recommended Room Size | Large conference rooms |
| User Interface | 7-inch capacitive multi-touch LCD, 1280 x 800 resolution |
| UC Platform | Microsoft Teams Rooms |
| Audio Technology | Limes Audio TrueVoice acoustic echo cancellation, automatic gain control, noise reduction |
| Speaker | Full-range speaker, 11W amplifier, up to 95 dB SPL |
| Microphone Array | 360° quad microphone array with up to 20 ft (6 m) pickup range |

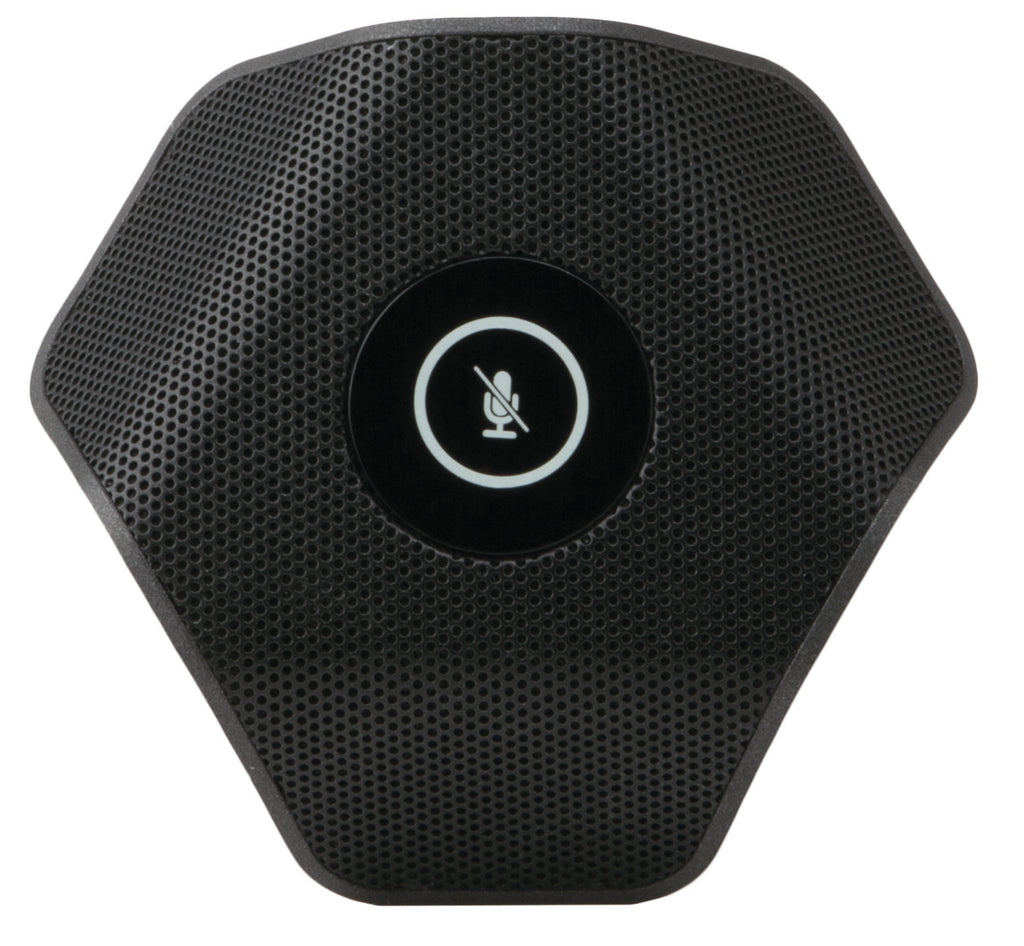

| Included Microphone Pod | CCS-UCA-MIC with 360° pickup and capacitive mute control |
| Extension Mic Support | Supports up to two microphone pods |
| UC Engine | Mini PC with Intel Core processor and Windows 11 IoT Enterprise |
| Content Ingest | HDMI via CAT5 to USB 3.0 converter |
| Display Support | Single or dual display capability (displays not included) |
| Video Resolution | Up to 1080p output |
| Connectivity | Ethernet, USB 2.0, HDMI, DisplayPort, CAT5e/CAT6a |
| Network & Security | DHCP, TCP/IP, UDP/IP, SSL, TLS, SSH, 802.1X, Active Directory authentication |
| BYOD Support | Yes, with automatic switching between user device and native system |
| Management Platform | XiO Cloud provisioning and monitoring |
| Mounting Options | Wall mount or attach behind display via VESA mount |
| Power Requirements | 24VDC external power supply (not PoE compatible) |
| Touch Console Dimensions | 4.11 in H x 8.92 in W x 12.74 in D |
| Touch Console Weight | 5.5 lb (2.5 kg) |
| UC Bracket Dimensions | 15.00 in H x 14.50 in W x 1.87 in D |
| UC Bracket Weight | 8.0 lb (3.7 kg) |
| Microphone Pod Dimensions | 0.97 in H x 3.81 in W x 3.42 in D |
| Microphone Pod Weight | 8.9 oz (253 g) |

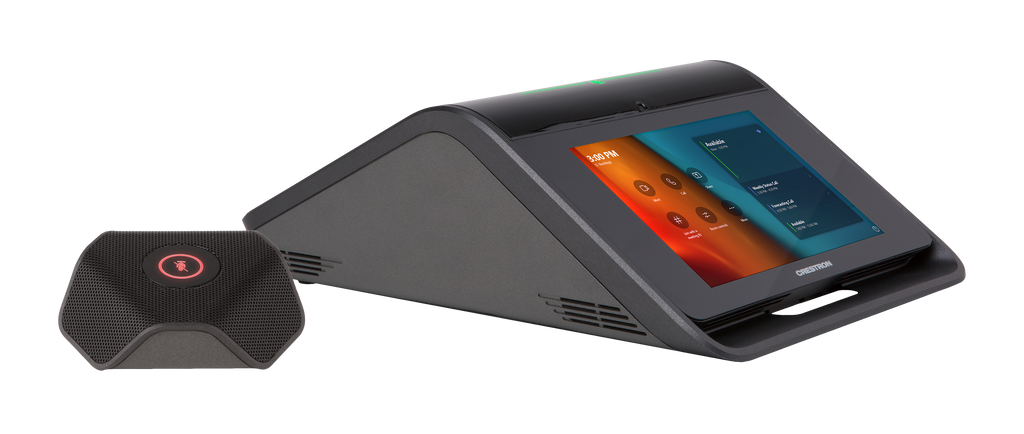

| Included Components | Touch console, UC engine bracket assembly, microphone pod, power supply, and cables |
| Deployment | Preassembled components for simplified installation |
| Use Case | Enterprise conferencing, hybrid meetings, large collaboration spaces |
