Description
The Crestron Flex UC-MX50-NC-Z delivers a powerful and scalable conferencing solution designed for medium-sized meeting rooms running Zoom Rooms software. This advanced tabletop system combines intuitive control, high-quality audio, and flexible deployment into a single, enterprise-ready platform.

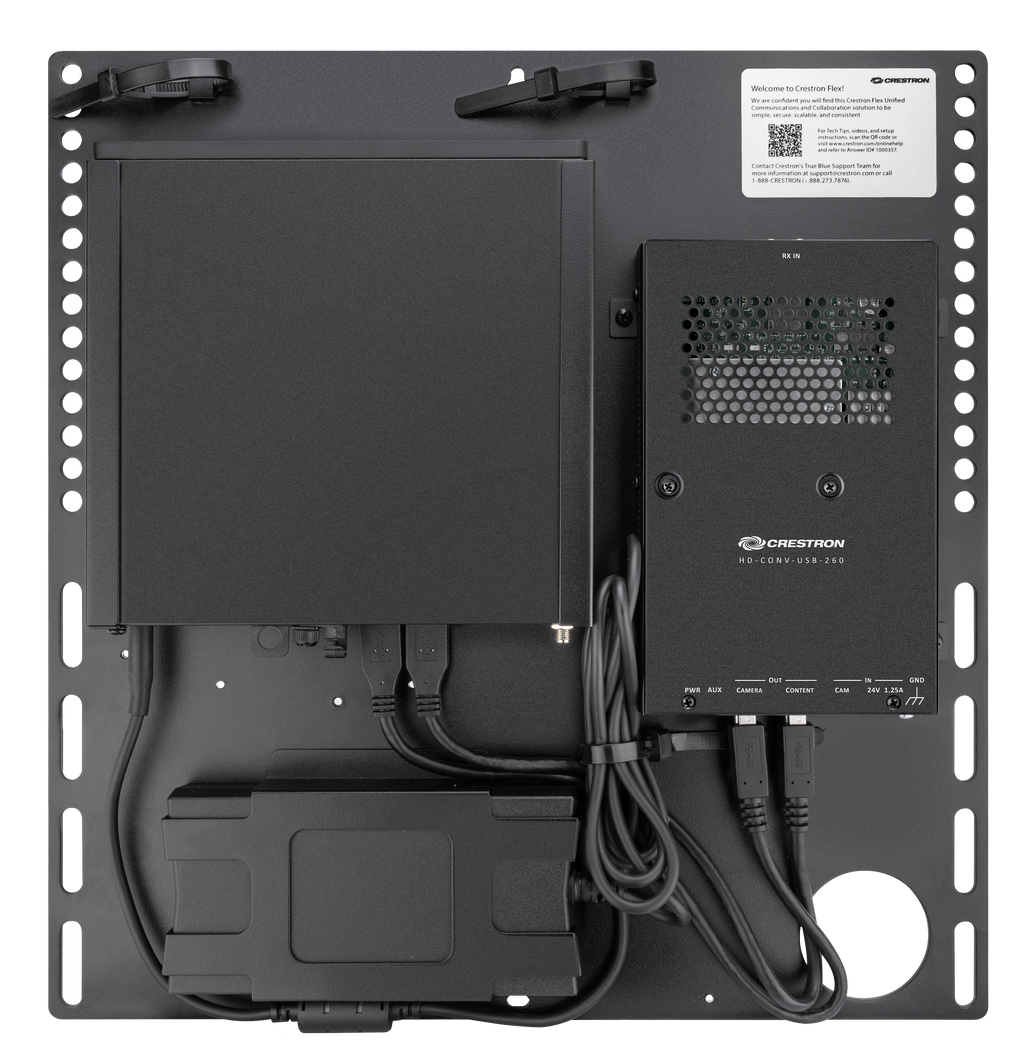

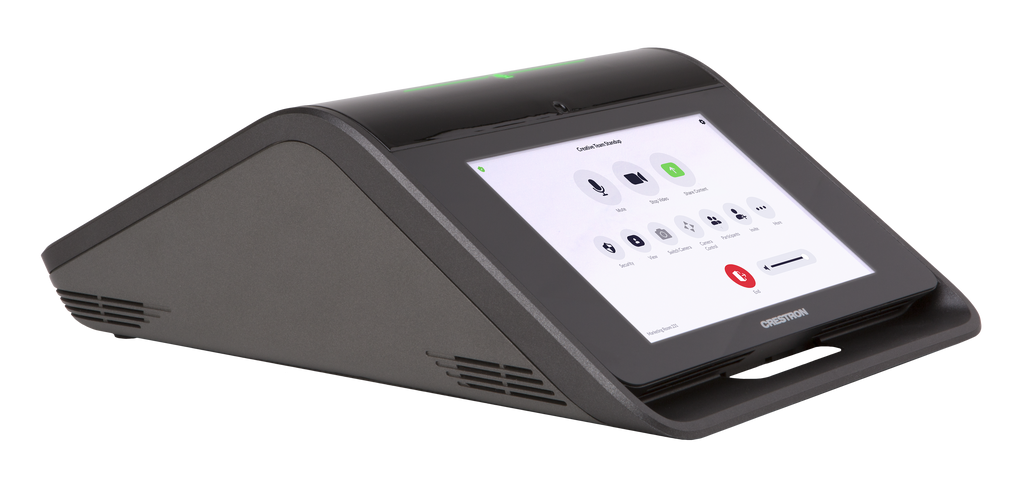

At the center of the system is a 7-inch HD touch screen conferencing device with an integrated speakerphone and 360° quad microphone array, enabling crystal-clear, full-duplex audio performance. The included UC Engine, pre-mounted on a bracket assembly, simplifies installation and supports seamless single or dual display configurations.
Designed for modern collaboration, the system supports native Zoom Rooms functionality while also enabling Bring Your Own Device (BYOD) connectivity for flexible conferencing across platforms. Enterprise-grade security, cloud-based provisioning through XiO Cloud, and robust hardware integration make it ideal for corporate, education, healthcare, and government environments.
With streamlined deployment, premium audio performance, and centralized management capabilities, the UC-MX50-NC-Z ensures reliable and consistent meeting experiences at scale.
| Specification | Details |
|---|---|
| System Type | Medium Room Tabletop Conference System |
| Platform Compatibility | Zoom Rooms Software |
| Display Support | Single or Dual Displays (not included) |
| Touch Screen | 7-inch capacitive multi-touch LCD, 1280 x 800 resolution |
| User Interface | Native Zoom Rooms interface |
| Audio Features | Acoustic Echo Cancellation, automatic gain control, noise reduction |
| Speaker | Full-range speaker, 11W amplifier, 95 dB SPL output |
| Microphone | 360° quad microphone array with ~20 ft pickup range |
| Expansion | Supports up to two external microphone pods (sold separately) |
| Occupancy Sensor | PIR sensor with ~6 ft detection range |
| Connectivity | Ethernet LAN (10/100 Mbps), USB 2.0, USB-C, HDMI |
| Network Security | SSL, TLS, SSH, SFTP, SRTP, IEEE 802.1X, Active Directory authentication |
| UC Engine | Intel Core processor with Windows 11 IoT Enterprise |
| Content Sharing | HDMI input via CAT5 to USB 3.0 converter |
| Video Output | Up to 1080p resolution |
| Mounting Options | Wall mount or rear display mount (VESA compatible) |
| Management | XiO Cloud provisioning and device management support |
| Power Requirements | 100–240VAC adapters for all components |
| Tabletop Device Dimensions | 4.11" H x 8.92" W x 12.74" D |
| Tabletop Device Weight | 5.5 lb |
| UC Bracket Dimensions | 15.00" H x 14.50" W x 1.87" D |
| UC Bracket Weight | 8.0 lb |
| Included Components | Tabletop conferencing device, UC engine bracket assembly, power supply, cables, mounting hardware |
| Deployment | Preassembled system for simplified installation |
