Description

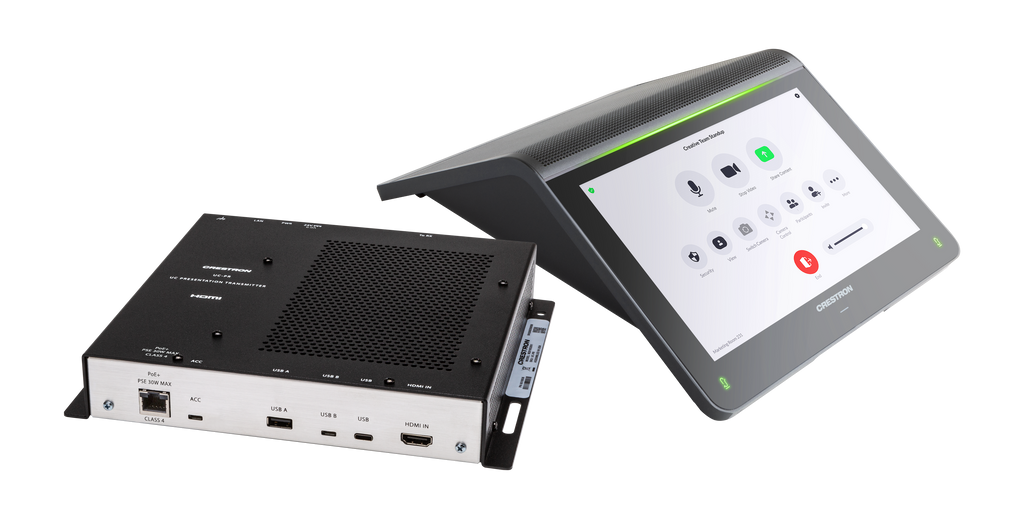

The Crestron Flex UC-MMX30-NC-Z is an advanced tabletop conferencing solution engineered for small meeting rooms, huddle spaces, and executive offices running Zoom Rooms® software. Designed for seamless collaboration, this system delivers a native Zoom Rooms experience with one-touch meeting access, high-quality audio, and flexible content sharing.
At the core of the solution is a 7-inch HD touchscreen conference device with integrated speakerphone and four omnidirectional microphones, providing full-duplex audio with advanced echo cancellation and noise reduction. The included UC Engine, powered by a high-performance Intel® processor and Windows® 11 IoT Enterprise, ensures reliable and responsive conferencing performance.
This complete system supports up to three displays and includes a UC bracket assembly for simplified installation, along with a UC presentation transmitter that enables Bring Your Own Device (BYOD) functionality. Users can easily switch between native Zoom Rooms conferencing and their own UC platforms while benefiting from integrated device charging and content sharing capabilities.
With enterprise-grade security, cloud-based management via XiO Cloud®, and streamlined deployment, the UC-MMX30-NC-Z is built to scale across corporate, education, and government environments while maintaining consistent performance and centralized control.
| Feature | Specification |
|---|---|
| Conferencing Platform | Native Zoom Rooms® Software |
| Room Type | Small Rooms, Huddle Spaces, Executive Offices |
| Display Support | Up to three displays (not included) |
| Touch Screen | 7-inch capacitive multi-touch LCD, 1280 x 800 resolution |
| Audio System | Full-duplex speakerphone with AEC, noise reduction, and AGC |
| Microphones | 4 built-in omnidirectional MEMS microphones with 360° pickup |
| Microphone Range | Up to 10 ft (3 m) |
| Speaker Output | 7 W amplifier, 83 ±3 dBA @1m |
| Frequency Response | 100 Hz – 20 kHz |
| UC Engine | Intel® Core processor with Windows® 11 IoT Enterprise |
| Content Sharing | HDMI and USB-C (DisplayPort Alt Mode) via UC Presentation Transmitter |
| BYOD Support | Yes, with automatic switching between user device and Zoom Rooms |
| Video Resolution | Up to 1080p |
| Network Connectivity | 10/100/1000 Mbps Ethernet, DHCP, TCP/IP, SSL, TLS |
| Security | IEEE 802.1X, Active Directory authentication, SRTP, SSH, SFTP |
| Cloud Management | XiO Cloud® provisioning and monitoring support |
| USB Ports | USB 2.0 and USB 3.0 interfaces |
| Power | PoE+ (IEEE 802.3at) and included power adapters |
| Mounting Options | Wall mount or VESA-compatible display mount attachment |

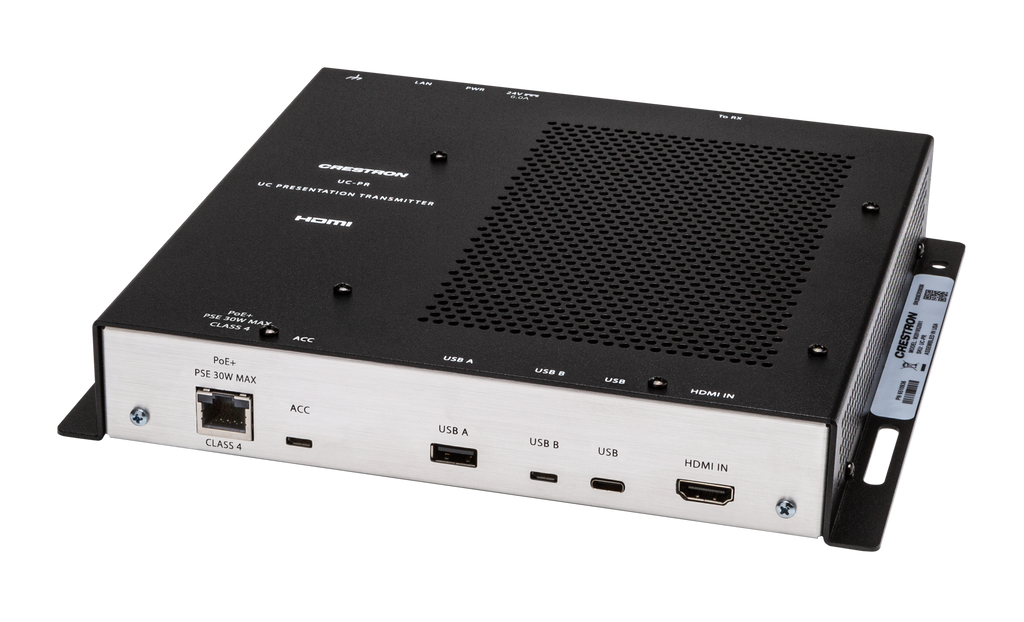

| UC Presentation Transmitter | Supports HDMI and USB-C input with device charging up to 60W |
| Included Components | Tabletop conference device, UC Engine bracket assembly, presentation transmitter, PoE injector, cables, mounting hardware |
| Dimensions (Tabletop Device) | 7.17" W x 9.61" D x 3.02" H |
| Weight (Tabletop Device) | 2.1 lb |

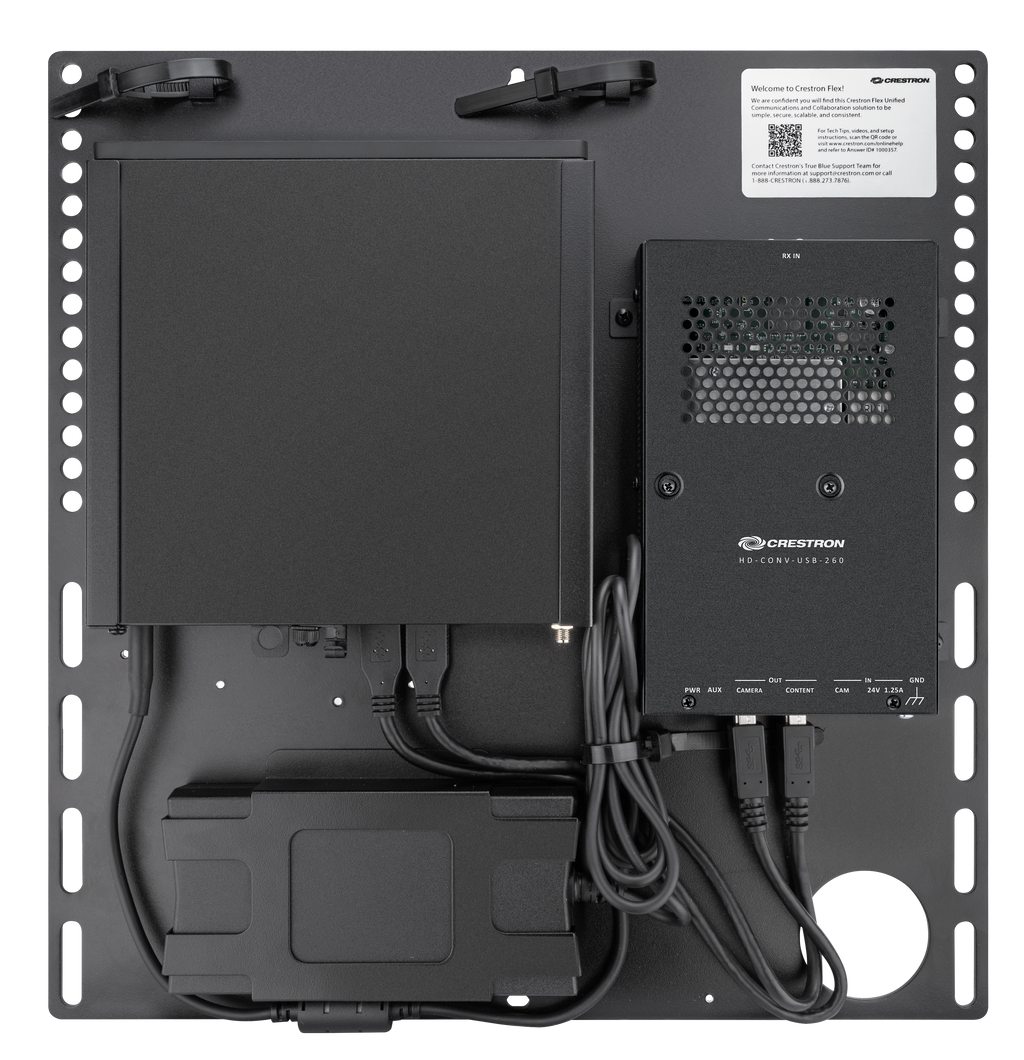

| Dimensions (UC Bracket Assembly) | 14.50" W x 1.87" D x 15.00" H |
| Weight (UC Bracket Assembly) | 8.0 lb |
