Description
The Crestron Flex UC-CX100-PRO-Z is an advanced integrator-grade video conferencing solution designed for fully customized Zoom Rooms environments. Built for enterprise deployments, this Pro kit enables organizations to design high-performance meeting spaces using their preferred displays, cameras, audio systems, and AV peripherals.

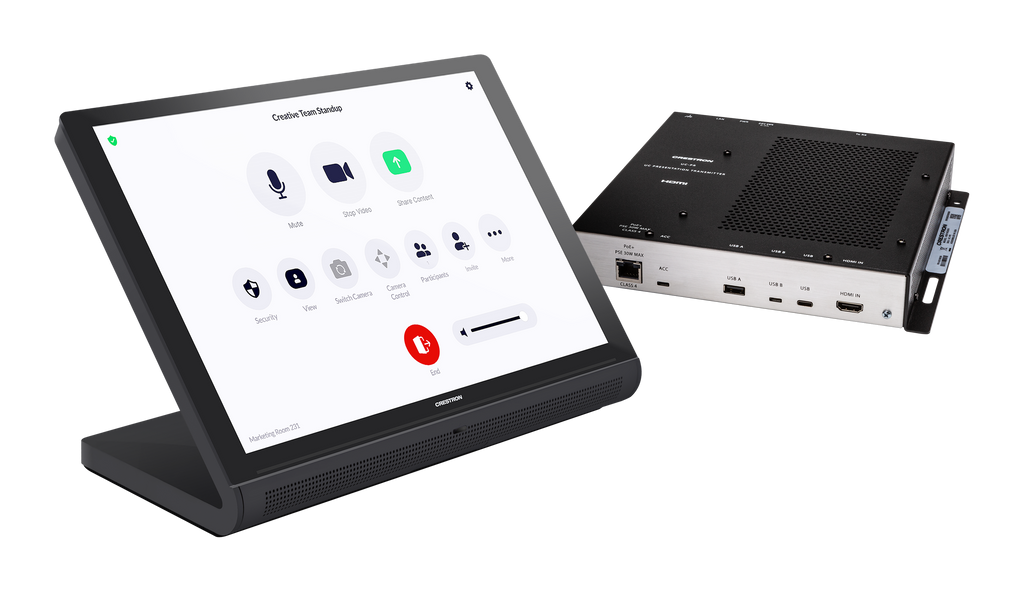

Supporting up to three displays and four cameras, the system delivers exceptional flexibility for medium to large conference rooms, boardrooms, and specialized collaboration spaces. The included UC Engine Pro with 12th Gen Intel Core i7 processor ensures powerful, reliable performance, while the intuitive 10.1-inch tabletop touch screen provides seamless meeting control and optional room automation.
The UC Presentation Transmitter enhances collaboration with BYOD functionality, allowing users to present and run meetings from their own devices with automatic switching between native Zoom Rooms and external platforms. With built-in enterprise-grade security and centralized device management via XiO Cloud, the UC-CX100-PRO-Z is optimized for scalable, secure, and efficient deployment across modern organizations.
| Category | Specification |
|---|---|
| Platform Compatibility | Zoom Rooms® software |
| System Type | Advanced integrator Pro kit for custom AV environments |
| Supported Displays | Up to 3 displays (not included) |
| Supported Cameras | Up to 4 USB cameras (not included) |
| Included Touch Screen | 10.1-inch (1920 x 1200) capacitive multi-touch display |
| Touch Screen UI | Zoom Rooms interface with optional Crestron room control |
| Touch Screen Connectivity | Ethernet 10/100/1000 Mbps with full protocol support |
| Touch Screen Power | PoE+ (IEEE 802.3at Type 2 compliant) |
| UC Engine | Intel Core i7 (12th Gen) Mini PC with Windows 11 IoT |
| UC Client | Native Zoom Rooms application |
| Device Management | XiO Cloud® provisioning and monitoring support |
| Content Ingest | HDMI via CAT5 to USB 3.0 converter |
| Display Output Resolution | Up to 1080p |

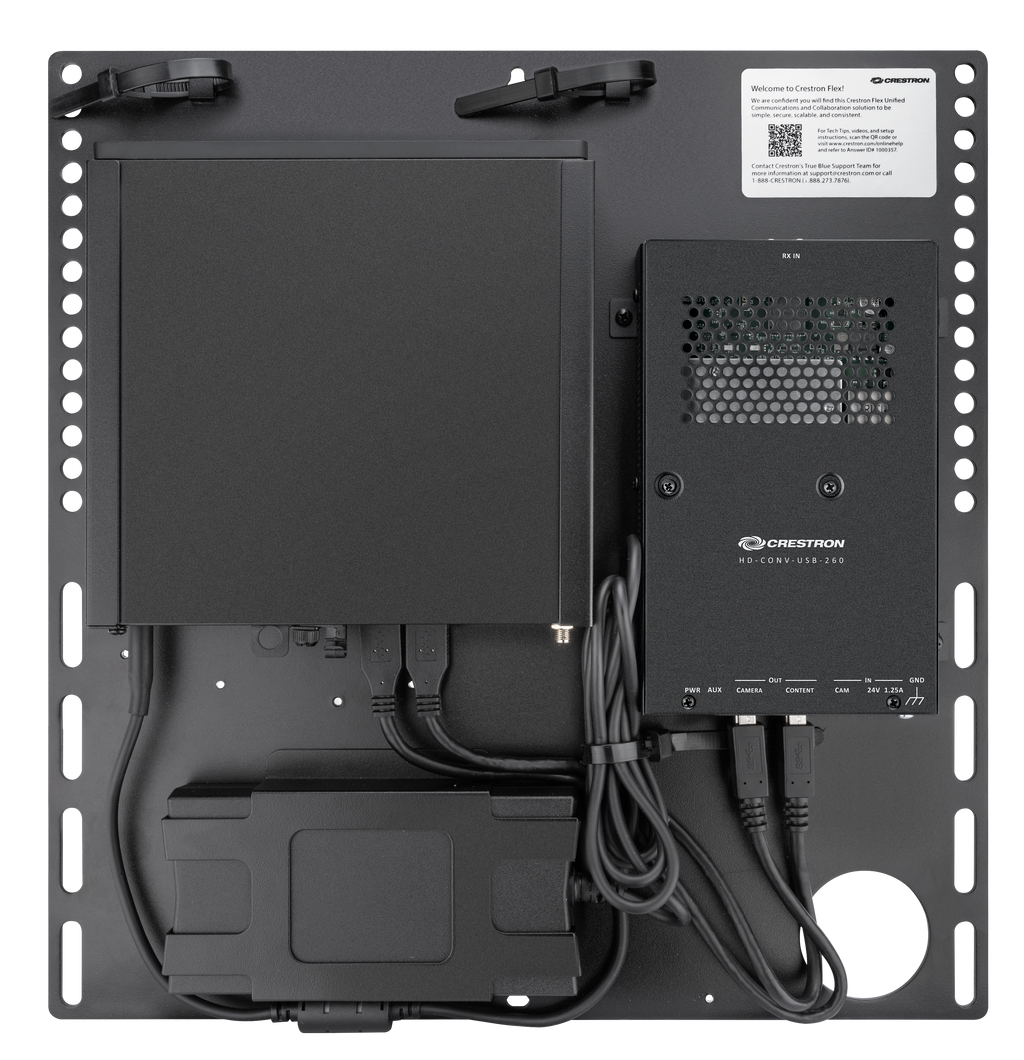

| UC Bracket Mounting | Wall mount or VESA-compatible display mount |
| UC Bracket Construction | Metal, preassembled with UC Engine and converter |
| UC Bracket Dimensions | 15.00 x 14.50 x 1.87 in |
| UC Bracket Weight | 8.0 lb |
| Presentation Transmitter (UC-PR) | Supports HDMI and USB-C (DisplayPort Alt Mode) input |
| Video Output | HDMI over CAT5 |
| Video Resolution | Up to 1080p |
| Content Protection | HDCP 1.4 and 2.2 |
| USB Support | USB 2.0 and 3.0 connectivity |
| Device Charging | Up to 60W via USB-C |
| Network Connectivity | Ethernet with auto-negotiation and discovery |
| Power Supply (UC-PR) | 24VDC external power adapter |
| Mounting (UC-PR) | Under-table or rack rail mounting |
| Included Accessories | Touch screen, UC Engine Pro assembly, cables, mounting hardware |
| BYOD Support | Yes, with automatic switching between user device and native platform |
| Security | Enterprise-grade secure communications |
| Deployment | Designed for custom AV integration environments |
