Description
The Crestron Flex UC-B31-Z-WM is a complete wall-mounted video conferencing solution designed for small meeting rooms using Zoom Rooms® software. Built for seamless collaboration, it delivers a native Zoom Rooms interface with one-touch meeting joins and an intuitive user experience through a 10.1-inch wall-mounted touch screen.
This system includes the powerful Jabra PanaCast 50 video bar, featuring panoramic 4K video with a 180° field of view and advanced audio performance, ensuring every participant is clearly seen and heard. The included UC bracket assembly simplifies deployment by pre-integrating key components, reducing installation time and eliminating the need for custom programming.
Designed for enterprise environments, the UC-B31-Z-WM supports up to three displays and offers secure network communication, centralized management via XiO Cloud, and scalable deployment across organizations. It is an ideal solution for modern workplaces seeking reliable, high-quality video conferencing with minimal setup complexity.
| Category | Details |
|---|---|
| System Type | Wall-mounted video conferencing system for Zoom Rooms® |
| Room Size | Small meeting rooms |
| User Interface | 10.1-inch capacitive touch screen (1920 x 1200 resolution) |
| Touch Screen Features | Native Zoom Rooms UI with optional room controls |

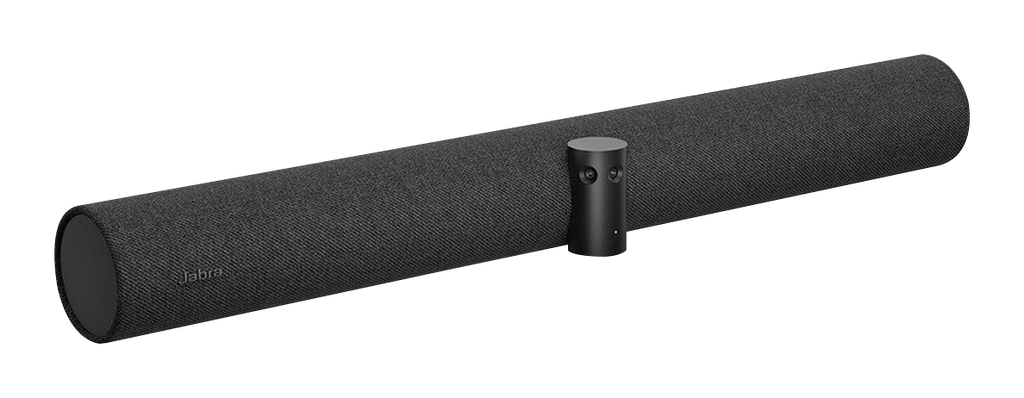

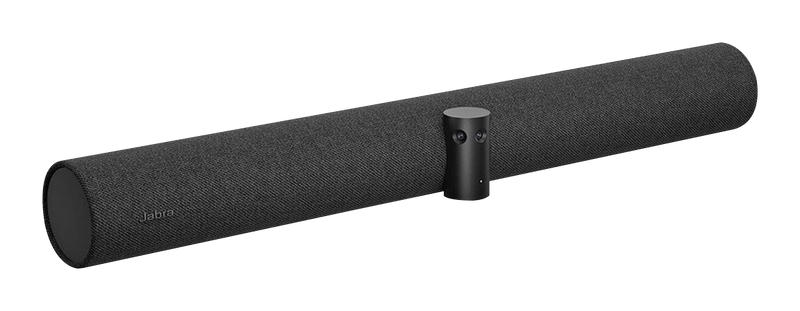

| Video Bar | Jabra PanaCast 50 with triple-camera array |
| Camera Resolution | 3840 x 1080 @ 30 fps |
| Field of View | 180° horizontal, 54° vertical |
| Auto Framing | Intelligent autozoom for participants within 11 ft (3.5 m) |
| Audio System | 4-speaker stereo system with 8-microphone beamforming array |
| Frequency Response | 80 Hz to 20 kHz (speakers), 100 Hz to 8 kHz (microphones) |
| Display Support | Supports up to three displays (not included) |
| UC Engine | Intel Core-based mini PC with Windows 11 IoT |
| Content Sharing | HDMI input via HDMI-to-USB 3.0 converter |
| Network | Gigabit Ethernet with enterprise protocols and security support |
| Security | TLS, SSL, 802.1X, Active Directory authentication |
| Power | PoE+ support (touch screen), external power for video bar |
| Mounting Options | Wall mount or rear display mount (VESA compatible) |
| Included Components | Touch screen, Jabra PanaCast 50, UC bracket assembly, PoE injector, cables |
| Management | XiO Cloud provisioning and device management |

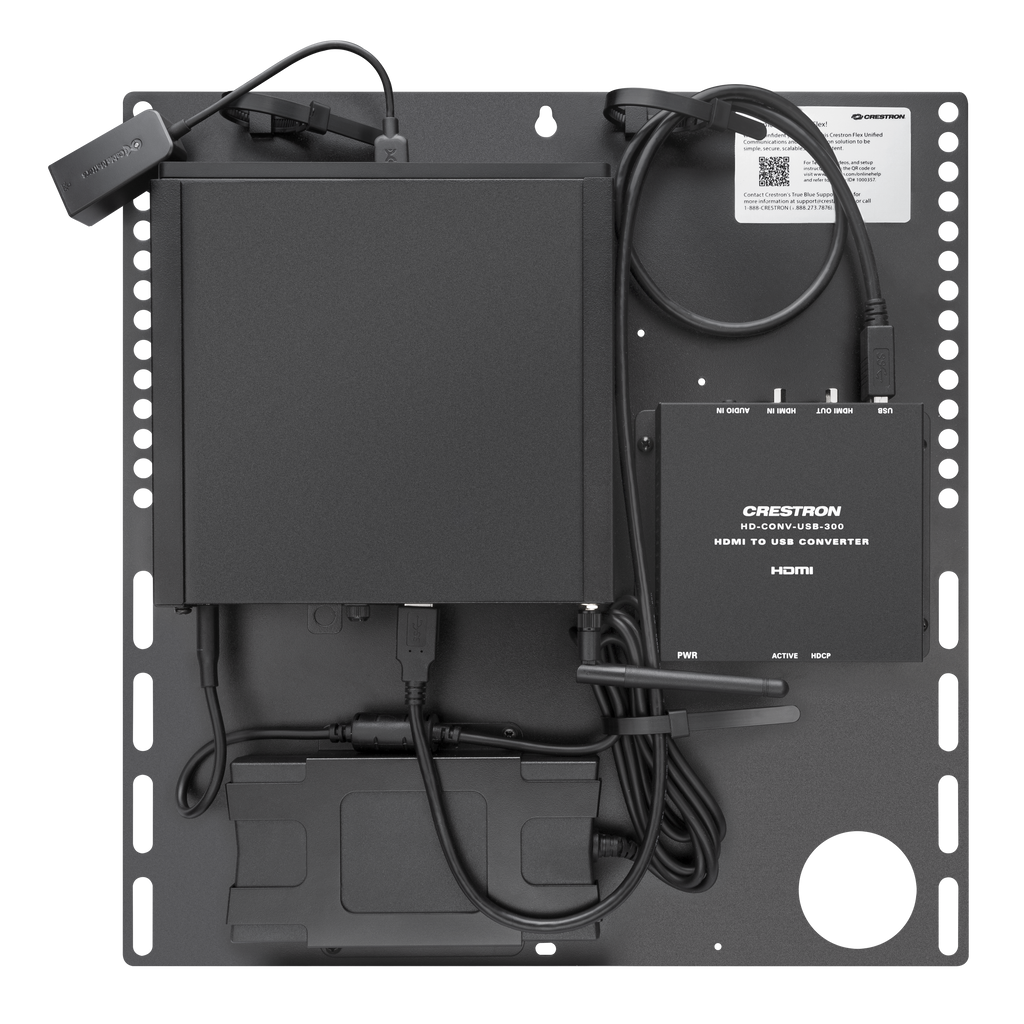

| Installation | Preassembled bracket system for simplified deployment |
| Construction | Metal bracket assembly with integrated components |
| Dimensions (Touch Screen) | 9.46” W x 5.87” H x 2.01” D |
| Dimensions (Video Bar) | 25.6” W x 3.1” H x 4.9” D |
| Weight (Video Bar) | 4.85 lb (2.2 kg) |
