Description
The Crestron Flex UC-B31-T Small Room Conference System is a complete tabletop collaboration solution designed for modern Microsoft Teams Rooms environments. Built to deliver a seamless and intuitive meeting experience, this system combines powerful video conferencing performance with simplified deployment for small meeting spaces, huddle rooms, and executive offices.

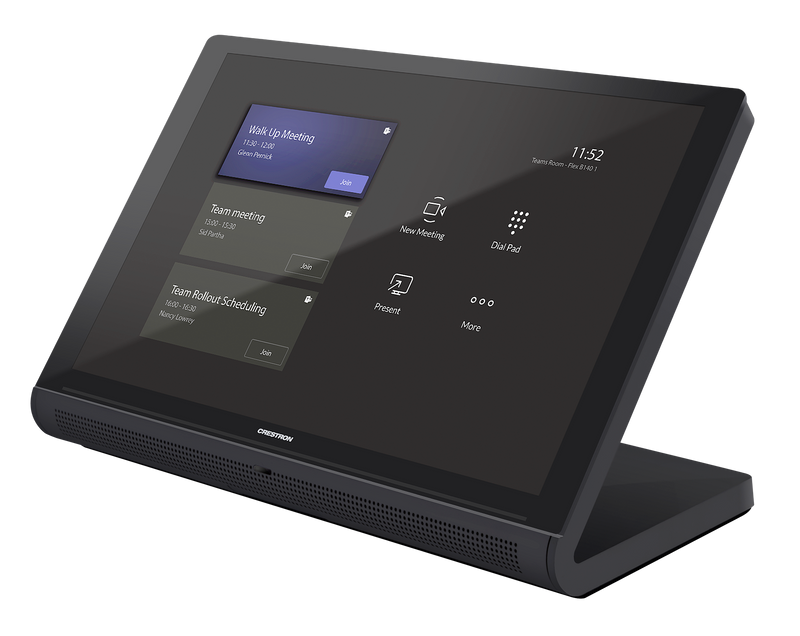

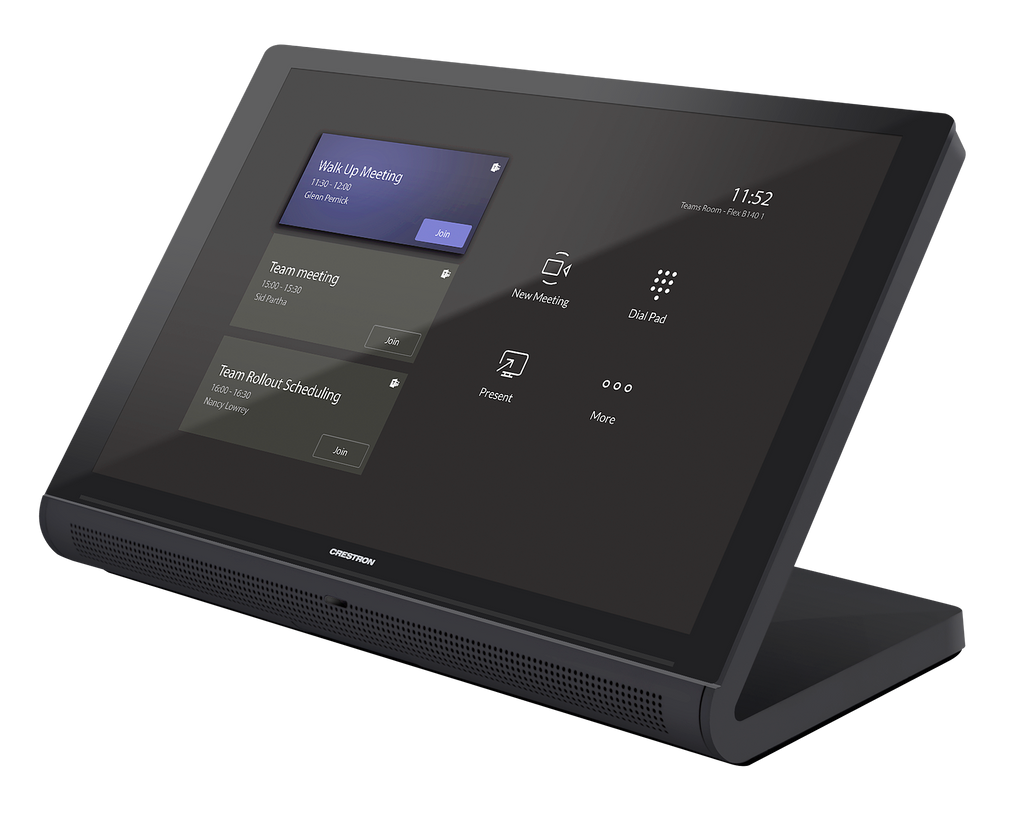

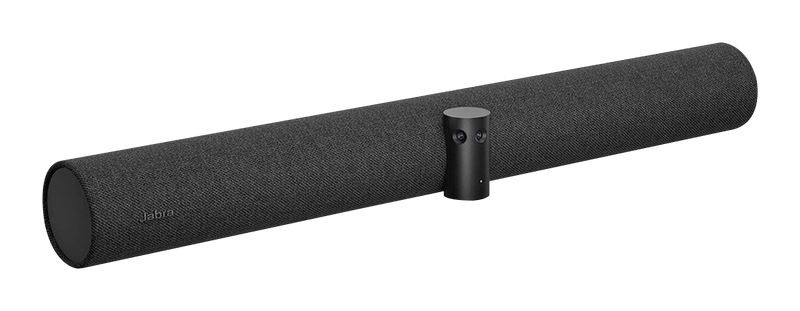

At the center of the system is a 10.1-inch capacitive touchscreen that provides a native Microsoft Teams interface with one-touch meeting access and responsive room controls. The included Jabra PanaCast 50 video bar enhances collaboration with panoramic 4K video, powered by a triple-camera array delivering a full 180-degree field of view. Advanced beamforming microphones and high-performance speakers ensure crystal-clear, full-duplex audio for every participant.

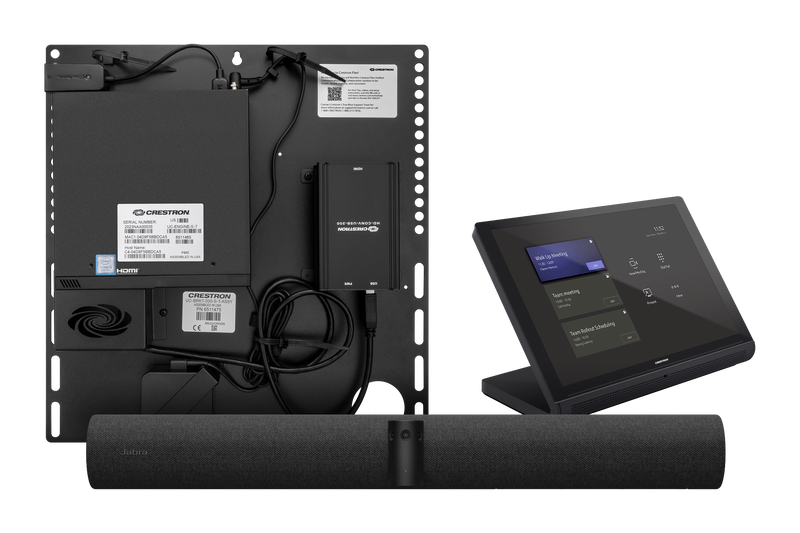

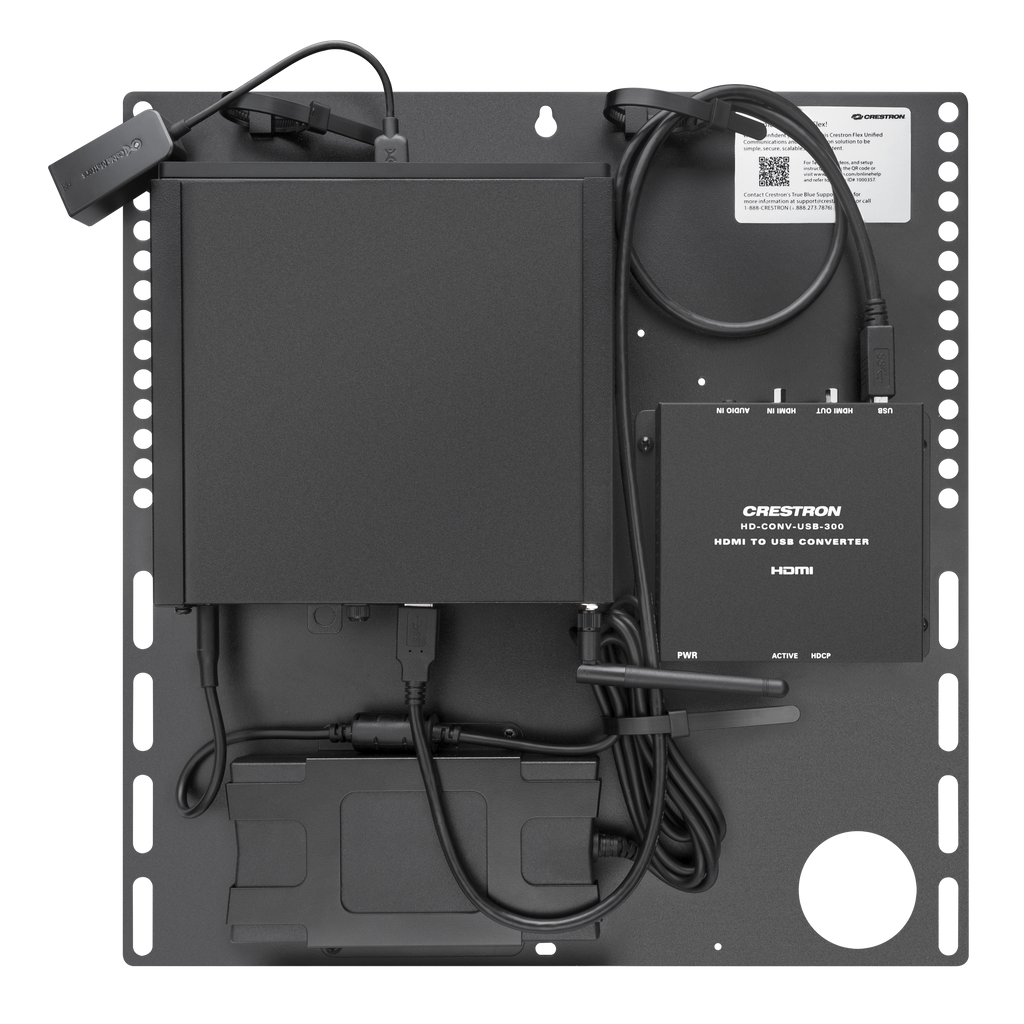

Engineered for efficiency, the UC-B31-T includes a preassembled UC bracket assembly, UC engine, PoE injector, and all necessary cabling to streamline installation without the need for custom programming. With support for single or dual displays and integration with enterprise management platforms, this system offers scalability, security, and centralized control for organizations deploying Microsoft Teams Rooms at scale.
| Specification | Details |
|---|---|
| System Type | Small Room Video Conference System |
| Platform Compatibility | Microsoft Teams Rooms |
| Included Components | 10.1 in. Touch Screen, Jabra PanaCast 50 Video Bar, UC Bracket Assembly, UC Engine, PoE Injector, Cables |
| Touch Screen Display | 10.1 in. capacitive multi-touch, 1920 x 1200 resolution |
| User Interface | Native Microsoft Teams Rooms interface with optional Crestron room control |
| Camera System | Triple-camera array (13 MP total) |
| Video Resolution | 3840 x 1080 at 30 fps |
| Field of View | 180° horizontal, 54° vertical |
| Auto Framing | Intelligent autozoom for participant tracking |
| Audio System | 4-speaker system with full-duplex audio |
| Microphones | 8-microphone beamforming array |
| Room Coverage | Suitable for rooms up to 15 x 15 ft |
| Display Support | Single or dual displays (not included) |
| UC Engine | Intel Core processor with Windows 11 IoT |
| Connectivity | Gigabit Ethernet, HDMI input via USB converter |
| Power Requirements | 100–240VAC adapters and PoE support |
| Mounting Options | Wall mount or rear display mount (VESA compatible) |
| Security | Enterprise-grade secure network communication |
| Device Management | XiO Cloud provisioning and monitoring support |
| Installation | Preassembled bracket system for simplified deployment |
| Touch Screen Dimensions | 5.29 x 9.63 x 4.67 in. |
| Video Bar Dimensions | 3.1 x 25.6 x 4.9 in. |
| Bracket Assembly Dimensions | 15.0 x 14.5 x ~1.9 in. |
| Ideal Use Case | Small meeting rooms, huddle spaces, executive offices |
